Science of the 'Widget' in Beer Cans

A beer can widget is a small hollow plastic capsule or disk that uses pressure to give you a draught-like pour at home. Before you open the can, nitrogen vapor forces gas and beer into the widget. When pressure suddenly drops, the widget blasts them back out, creating tiny nitrogen bubbles, the famous cascade, and a thick creamy head. Guinness made it famous, though other British and Irish beers use it too—and there’s more behind that little capsule.

Key Takeaways

• A beer-can widget is a small hollow plastic sphere or disk that releases gas and beer to create a draught-like head.
• During canning, liquid nitrogen vaporizes after sealing, pressurizing the can and filling the widget with gas and beer.
• When opened, the pressure drop blasts the widget’s contents through tiny holes, stirring the beer and triggering rapid bubble formation.
• Nitrogen forms smaller, denser bubbles than CO2, producing the signature cascade and a creamier, longer-lasting foam.
• Commercialized in the 1980s and patented in 1989, widgets helped beers like Guinness mimic pub pours at home.

What Is a Beer Can Widget?

Picture a tiny plastic capsule tucked inside the can: a beer can widget is a small hollow sphere or disk, usually about 3 cm wide, designed to control the beer's head when you open it.

You'll usually find it floating in canned stout, though some versions sit at the bottom. This widget design often includes a seam and tiny holes or a central aperture.

You can think of it as a built-in head manager for beers that use nitrogen and need protection from oxygen. Guinness patented the idea in Ireland after Tony Carey and Sammy Hildebrand developed it in 1968, then brought cans to market in 1988. When the can is opened, the sudden pressure drop forces gas and beer out through the widget, creating bubble surging that helps form a creamy head. The escaping nitrogen also creates a striking cascading effect as fine bubbles move through the beer.

Since then, the packaging impact has been huge, helping British and Irish beers deliver a draught-style presentation at home without changing the beer itself. Much like how the Olympic scoring systems were forced to evolve after Nadia Comăneci's historic perfect 10 in 1976, the widget's introduction pushed the wider brewing industry to rethink how technology could preserve and present a product's quality.

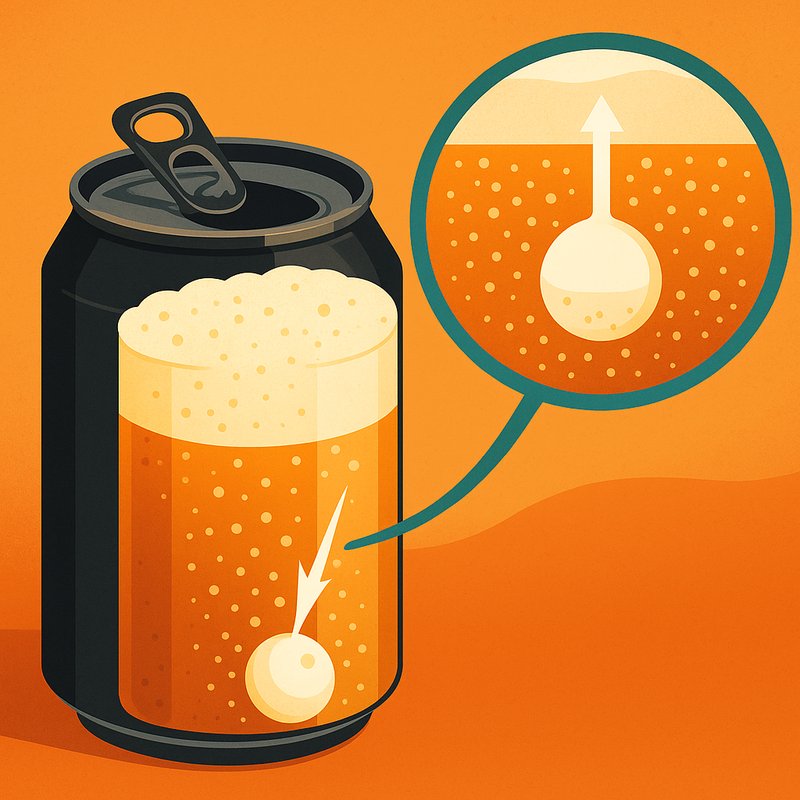

How Does a Beer Can Widget Work?

When you crack open a widget can, the sudden drop in pressure makes the small nitrogen-filled plastic capsule release a jet of gas and a little beer through its tiny holes. That burst comes from pressure dynamics created during filling, when liquid nitrogen vaporizes after sealing and forces gas and beer into the hollow widget. Until you open the can, the white plastic ball simply floats inside, holding that pressurized mix. Guinness originally patented this invention in Ireland as a way to create a draught-like head in packaged beer. In a 2004 survey of almost 9,000 people, the widget was even ranked as a greater invention than the internet.

As the jet shoots out, it stirs the surrounding beer and triggers bubble nucleation throughout the liquid. Nitrogen dissolved in the beer escapes into countless tiny bubbles, and the agitation spreads the effect quickly. You get a surging pour that mimics draught service, with bubbles moving through the beer in a controlled release. Older versions used a bottom disc, while some bottle systems use rocket-shaped widgets.

Why Does a Widget Create Creamy Foam?

That turbulent burst doesn’t just move the beer around—it creates the creamy foam widget cans are known for. When you open the can, pressure drops fast, and beer plus gas shoot from the widget hole.

That jet stirs the liquid and triggers pressure driven nucleation, so countless tiny bubbles form throughout the beer. This effect is enhanced by dissolved nitrogen, which promotes the formation of smaller bubbles.

You get a creamier head because nitrogen bubble size is much smaller than carbon dioxide bubbles. Smaller bubbles hold higher internal pressure, which helps them stay fine and densely packed instead of growing coarse. Samuel Adams built its Nitro Project around an integrated widget inside the aluminum can to create this thick, creamy head.

As nitrogen escapes, it seeds even more bubbles and starts the familiar cascading effect near the glass. Because nitrogen is less soluble than carbon dioxide, you get a thick, stable head without excessive foam.

The result feels smooth, frothy, and draught-like with every pour you make.

Which Beers Use Widgets Most?

Most often, you’ll find widgets in British and Irish beers, where brewers use them to mimic the smooth, draught-style pour these lower-carbonation styles are known for. If you shop for widget cans, you’ll usually see Guinness first, along with John Smith’s, Boddington’s Pub Ale, Kilkenny, Old Speckled Hen, and Tetley’s. Guinness originally patented the beer widget in Ireland, which helped establish it as the best-known example of the technology. These brands became Regional favorites because widgets suit ales and stouts from the UK and Ireland especially well. Guinness’s version became so iconic that a 2004 Irish poll even called it the greatest technological achievement of the previous 40 years.

You won’t see the same pattern in the United States. Market dynamics there favor other nitrogen methods, such as pre-infused nitro beer, instead of floating widgets. That’s why American brewers rarely use them, and attempts like Foster’s didn’t last. Even Kronenbourg 1664’s widgetized Draught Système came and went, showing how widget success stays tied to British and Irish drinking preferences today.

Who Invented the Guinness Widget?

Behind Guinness’s famous can widget were inventors Alan J. Forage and William J. Byrne, the team you can credit with making the idea commercially viable. During 1984–1985, they designed a plastic capsule that could be inserted during canning and release nitrogen in a controlled way. You see their names tied to US Patent No. 4,832,968, granted in 1989, which describes the hollow pod and its restricted opening. The original patent later expired in the early 2000s, but its industry legacy continued well beyond its legal term.

Before Alan Forage and William Byrne perfected it, Guinness had chased a draught-like head in cans for years. Tony Carey and Sammy Hildebrand proposed an earlier system in 1969, but it wasn’t commercially practical. An even earlier related patent, GB1266351 from 1972, described a commercially unviable widget. Forage and Byrne’s breakthrough finally worked, helping Guinness launch widget cans in 1989 and giving you that smooth, creamy pour people associate with nitro stout today worldwide.
