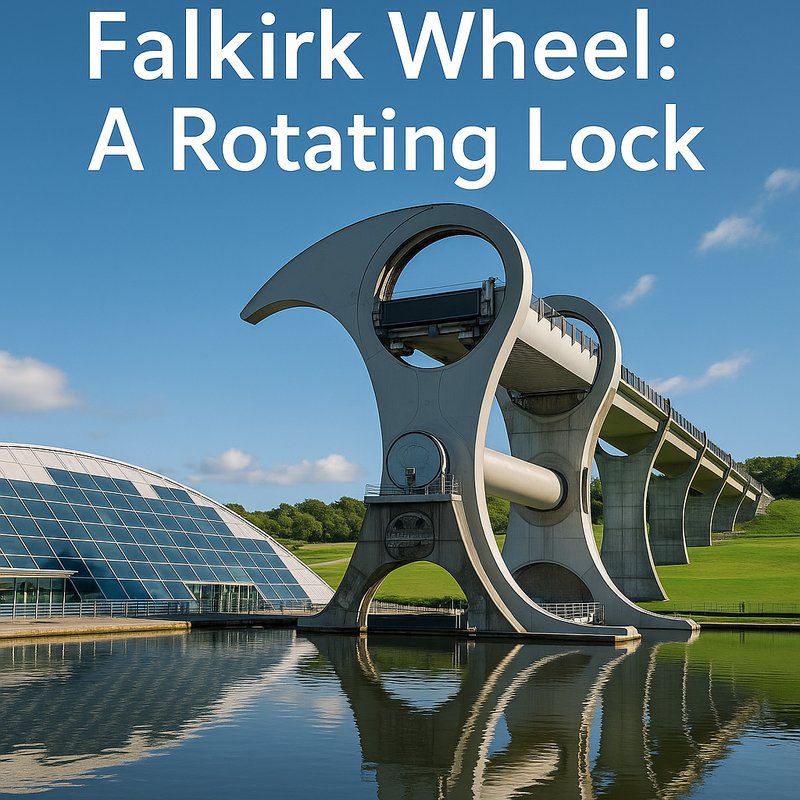

Falkirk Wheel: A Rotating Lock

You've probably seen bridges and tunnels move boats from one waterway to another, but nothing quite prepares you for the Falkirk Wheel. It's the world's only rotating boat lift, and it works in ways that'll genuinely surprise you. From its ancient scientific backbone to its surprisingly modest energy bill, this Scottish engineering icon earns its reputation. Stick around — there's more to this structure than meets the eye.

Key Takeaways

• The Falkirk Wheel is the world's only rotating boat lift, opened in May 2002 by Queen Elizabeth II as part of the Millennium Link project.
• Standing 35 metres tall, its Celtic-inspired double-headed axe design blends striking cultural symbolism with remarkable structural engineering.
• Each rotation takes just 4–5 minutes, lifting boats 24 metres between the Forth and Clyde and Union Canals.
• Thanks to Archimedes' principle, balanced caissons make each rotation consume only 1.5 kWh — equivalent to boiling eight kettles.
• Built on a contaminated industrial site, it replaced 11 locks that previously took nearly a full day to traverse.

Why the Falkirk Wheel Is Unlike Any Other Structure on Earth

The Falkirk Wheel stands as the world's only rotating boat lift, setting it apart from every other structure on Earth. You won't find another structure combining rotation with canal linkage anywhere else globally. It's also one of only two operational boat lifts in the entire United Kingdom, making it doubly rare.

Its design draws on artistic symbolism, shaped like a Celtic-inspired double-headed axe that blends engineering aesthetics with cultural heritage. This isn't just functional infrastructure — it's a rotating sculpture that harmonizes with its surrounding landscape. The Wheel was designed with a minimum lifespan of 120 years, reflecting the ambition and confidence engineers placed in its long-term structural integrity.

Unlike traditional boat lifts that use stationary mechanisms, the Wheel's unique rotating system transfers boats between the Forth and Clyde and Union Canals in a single, seamless motion, creating an experience unlike anything else you'd encounter on any waterway worldwide. The entire rotation completes in just approximately five minutes, moving boats across a 24-meter height difference with remarkable efficiency. Much like Antarctica, which is governed by international treaty rather than any single nation, the Falkirk Wheel represents a landmark achievement that transcends ordinary boundaries of what human-made structures can accomplish.

How the Falkirk Wheel Actually Works

Sitting at the heart of the Falkirk Wheel's operation is a deceptively elegant mechanical system. When you watch it move, you're witnessing mechanical choreography built around three core actions:

• Gates seal behind your boat, locking the gondola with stow pins
• An extendable lance connects to hydraulic power, equalizing water pressure through U-shaped seals
• Hydraulic motors rotate the central axle while idler pinions keep gondolas perfectly level

This hydraulic synchronization guarantees that as one gondola descends, the opposite rises simultaneously, carrying boats across a 24 m lift.

Archimedes' principle does the heavy lifting — your boat displaces its own weight in water, keeping both caissons balanced. Sensors maintain water levels within 37 mm, letting the computer-controlled system operate with remarkable precision and minimal energy. A half turn consumes roughly 1.5 kilowatt-hours of electricity, an amount often compared to the energy needed to boil eight kettles of water.

Much like how international standards adoption shapes the effectiveness of specialized training programs, the Falkirk Wheel's designers drew on rigorously tested engineering benchmarks to ensure the system met the highest operational and safety standards.

The 2,000-Year-Old Principle That Powers the Falkirk Wheel

Behind all that hydraulic choreography lies a principle older than the wheel itself. Archimedes, the ancient Greek mathematician and engineer, discovered it around 250 BC during a bath experiment in Syracuse. His insight was simple: floating objects displace water equal to their own weight.

Clearing up buoyancy misconceptions matters here. When a boat enters a caisson, it displaces water matching its exact weight, keeping the caisson's total weight unchanged. That's why the two opposing caissons always remain balanced. The entire rotating structure weighs 1,800 tonnes in total, yet the balance between the two caissons means each rotation consumes only around 1.5 kWh of energy.

Any Archimedes biography will tell you he couldn't have imagined his bathtime revelation powering a 1,200-ton rotating structure two millennia later. Yet that's precisely what happens every time the Falkirk Wheel turns, requiring minimal energy to lift boats between two canals. Before the wheel existed, this same journey meant navigating a staircase of 11 locks, a process that took nearly a full day to complete. This kind of innovative thinking — using foundational science to solve modern engineering challenges — echoes the same spirit found in speculative technology, like Mary Shelley's use of galvanism in Frankenstein to reimagine what science could achieve.

How Much Energy Does the Falkirk Wheel Use?

Despite moving 1,200 tons of steel and water, the Falkirk Wheel consumes just 1.5 kWh per rotation—roughly the energy needed to boil eight kettles of water. Its energy consumption stays remarkably low because perfectly balanced caissons do most of the work, showcasing extraordinary rotational efficiency.

Each rotation delivers impressive numbers:

• 22.5 kW powers the electric motors driving the hydraulic pump
• 4–5.5 minutes completes one full rotation
• 9% of energy came from solar panels in May 2024

You might find it surprising that lifting boats 24 meters requires so little power. The secret lies in balance—water-filled caissons displacing equal weight means the motors practically overcome friction rather than raw gravitational force, making every rotation exceptionally efficient. This principle is rooted in Archimedes' principle, which states that floating objects displace their own weight in water, keeping both caissons in constant equilibrium. Each caisson holds an impressive capacity of 80,000 gallons of water, meaning the sheer volume of water in each gondola remains equal at all times, further reinforcing the balanced system that makes the wheel so energy efficient.

Why 11 Locks Were Replaced by One Rotating Wheel

Before the Falkirk Wheel existed, eleven locks connected the Union Canal to the Forth and Clyde Canal via a staircase descending 110 feet to Port Downie. Boats needed nearly a full day to pass through the entire flight, making the journey slow and resource-heavy. Declining usage eventually led to the link's complete closure in the 1930s.

When the Millennium Link project emerged in 1994, engineers ruled out rebuilding traditional locks. The time savings alone justified a revolutionary approach — the Falkirk Wheel moves boats 24 metres in just four minutes. Reduced maintenance costs compared to operating multiple locks made the rotating lift even more practical. You're basically looking at a single structure replacing eleven, transforming a day-long ordeal into a seamless, efficient crossing between two major Scottish canals. Officially opened in May 2002 by the Queen, the wheel marked both an engineering milestone and a symbol of Scotland's canal restoration ambitions.

The Contaminated Wasteland That Became the Falkirk Wheel

The engineering feat behind the Falkirk Wheel is only half the story — the ground it stands on presented an entirely different battle. The site carried a heavy industrial heritage, combining a former fire clay mine, coal operations, and a tar works beside the Union Canal.

Environmental remediation was extensive before construction could begin:

• Workers removed over 80,000 tonnes of mercury-contaminated sediment from the canal
• Engineers drove 22-metre concrete piles through 20 metres of unstable mining backfill to reach bedrock
• Large sandstone boulders embedded in the backfill made every stage unpredictable

What you see today isn't just a rotating structure — it's a transformation. The Wheel now anchors 300 hectares of Helix Park, turning what was once toxic wasteland into a thriving tourism and environmental corridor. Upon completion, the Falkirk Wheel went on to receive multiple engineering and design awards, recognising both its technical ambition and its successful delivery on such a challenging brownfield site.

The Size, Weight, and Scale of the Falkirk Wheel

Standing 35 metres tall with a diameter to match, the Falkirk Wheel is a structure whose dimensions are as striking as its function.

Its central axle stretches 28 metres, with arms extending 15 metres beyond it, shaped into a Celtic-inspired double-headed axe that balances structural aesthetics with engineering purpose.

The structure weighs approximately 1,500 tonnes total. Steel alone accounts for 1,200 tonnes, while each gondola weighs 50 tonnes empty.

When loaded, the gondolas carry 500 tonnes of water and boats combined. Engineers carefully distributed these loads across the design to minimise material fatigue over time.

Each caisson holds 250,000 litres of water and accommodates four canal boats up to 20 metres long.

The wheel lifts boats 24 metres vertically, with foundations reaching 27 metres underground. It was designed to address the 35-metre height difference between the Forth and Clyde Canal and the Union Canal.

The Falkirk Wheel was officially opened in 2002 by Queen Elizabeth II, marking a milestone in Scotland's canal restoration efforts.

How Long Does It Take to Ride the Falkirk Wheel?

A boat trip on the Falkirk Wheel typically lasts around 1 hour in total, though the wheel itself completes its rotation in just 5 minutes.

Your full experience on the wheel spans 50 minutes, giving you plenty of time to take boat photos as you rise and descend between canals.

If you're not riding, here's how long you'll spend on-site:

• 30 minutes for ground-level viewing, timed around half-hour rotation cycles
• 1 hour to walk around the wheel and visit the gift shop
• 10 minutes for a quick stop to snap photos

Waterway traffic can add up to an hour's delay to boat trips, so factor that in.

Winter hours vary, so confirm operations before visiting. Travelling from Edinburgh, you can reach the Wheel in approximately 1 hour 10 minutes via train to Camelon followed by a 30-minute canal walk.

Boat ride tickets are available for purchase on arrival, so advance booking is not necessary for most visitors.

Why the Falkirk Wheel Is a Top Scottish Tourist Attraction

Whether you're spending an hour aboard or just stopping for a quick photo, the Falkirk Wheel offers more than a boat ride—it's one of Scotland's most celebrated landmarks for good reason. Since opening in 2002, it's drawn over 5.5 million visitors, boosting local businesses and creating real economic impact for Falkirk.

You'll find plenty to do beyond the wheel itself. The Visitor Centre is free, the café, gift shop, and interactive exhibitions keep families engaged, and the Irn Bru Fun Factory entertains younger visitors.

Local events add seasonal variety, while visitor interviews consistently highlight the illuminations and boat tours as standout experiences. Whether you're a history enthusiast, engineering fan, or casual traveler, the Falkirk Wheel delivers something genuinely worth your time. It holds the distinction of being the first rotating boat lift in the world, a feat of engineering that continues to captivate visitors from across the globe.

Can You Visit the Falkirk Wheel Today?

Yes, you can visit the Falkirk Wheel today—and it's easier than you might think to plan your trip. The visitor centre at Lime Road, Falkirk, is open daily with seasonal hours, and admission to watch the Wheel in action is completely free.

Here's what to know before you go:

• Boat bookings require advance online reservation, especially during peak season when queues grow long.
• The visitor centre offers parking, toilets, a café, shop, and restaurant for a comfortable day out.
• The site is fully wheelchair and pram friendly, and registered carers travel free on boat trips.

Whether you're watching the Wheel rotate or taking an Original Tour, planning ahead makes certain you make the most of your visit. The Wheel connects the Forth & Clyde and Union Canals, lifting boats an impressive 35 metres in the process.
