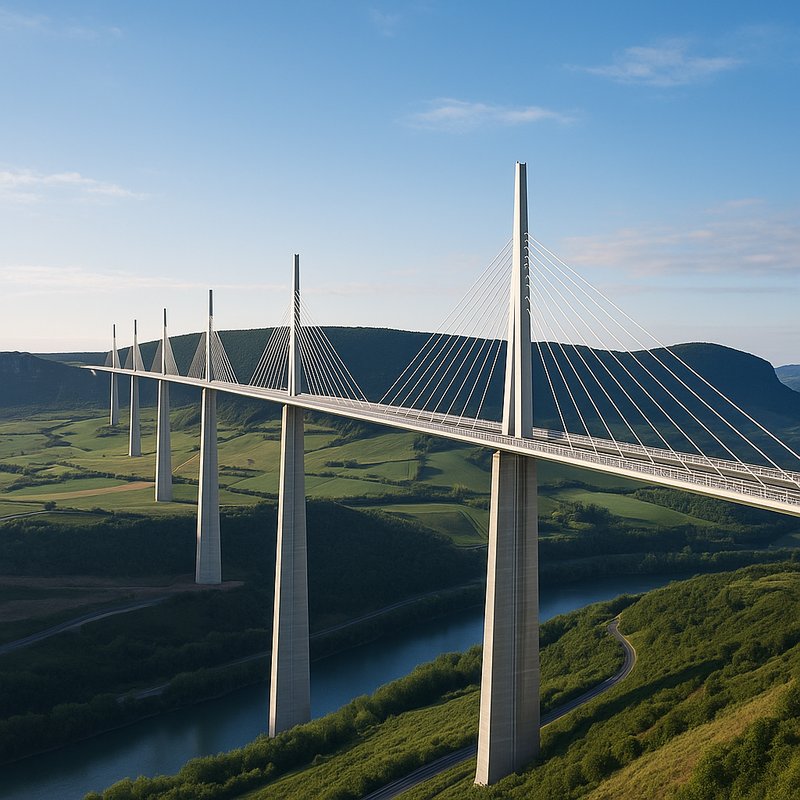

Highest Bridge: Millau Viaduct

Have you ever wondered what it takes to build a bridge taller than most skyscrapers? The Millau Viaduct isn't just a bridge — it's a feat of modern engineering that forever changed how people cross southern France. You'll find its numbers almost impossible to believe, and its construction story even more remarkable. Keep going, because what you're about to discover will completely change how you see infrastructure.

Key Takeaways

• The Millau Viaduct's road deck sits 270 metres above the Tarn valley, making it taller than most skyscrapers while carrying a motorway.
• Pylon P2 rises 244.96 metres above the valley floor, with its mast peaking at 343 metres total height.
• The bridge uses a cable-stayed design with 154 cables supporting a slender deck from seven steel towers.
• Construction used 85,000 cubic metres of concrete and 36,000 tonnes of steel, opening to traffic on December 16, 2004.
• Eiffage privately financed the €394 million project, receiving a 75-year toll concession generating €58 million in 2022 revenues.

What Makes the Millau Viaduct the World's Tallest Bridge?

Its record height stems from several structural elements working together. The road deck alone reaches 270 metres above the Tarn valley, while pylon P2 climbs an additional 244.96 metres above the valley floor. That's nearly twice the height of Europe's previous tallest vehicular bridges, including Austria's Europabrücke.

The visual impact becomes even more striking when you consider the mast atop pylon P2 peaks at the full 343 metres. You're effectively looking at a structure taller than most skyscrapers, yet it carries a motorway across a vast French valley. The viaduct was conceived by French engineer Michel Virlogeux and later brought to life through the design vision of English architect Lord Norman Foster.

The bridge received the 2006 Outstanding Structure Award from the International Association for Bridge and Structural Engineering, recognising it as one of the greatest engineering achievements of modern times.

What Engineering Innovations Make the Millau Viaduct Unique?

The Millau Viaduct's construction required a remarkable convergence of engineering innovations, starting with its cable-stayed design. You'll find 154 cables supporting a slender deck from seven steel towers, each cable initially tensioned at just 20% during construction and adjusted later. Engineers eliminated temporary stays by integrating permanent cables directly into the launching procedure.

The innovative launching method divided the deck into two sections, assembled on opposite valley sides and pushed toward the center. Hydraulic transporters moved 87-meter-high steel pylons onto the deck at piers, while special deviation devices protected cables during the launch. Wind tunnel tests then refined the road deck's shape for aerodynamic stability. Satellite positioning further enhanced construction accuracy, ensuring every element aligned precisely despite challenging wind conditions. The viaduct's steel roadway deck weighs approximately 36,000 tonnes, a testament to the structural scale demanded by spanning the Tarn Valley at such heights.

The prefabricated box sections that form the hollow steel deck were manufactured at the Eiffel factory in Alsace, then transported by barge down the Rhine to the Mediterranean before making their final journey by road to the construction site. This logistical feat ensured that 290,000 tonnes of steel and concrete could be assembled with precision in one of France's most challenging geographic locations. For those curious about the broader context of such structural achievements, online resources featuring physics and science facts can offer additional insight into the principles behind landmark engineering projects like this one.

How Was the Millau Viaduct Actually Built?

Building the Millau Viaduct began on December 14, 2001, when Transport Minister Jean-Claude Gayssot laid the first stone.

Workers completed seven concrete piers in just 1.5 years, with P2 reaching a record-breaking 245 meters.

Site logistics demanded careful coordination — crews prefabricated hollow steel deck sections at an Alsace factory, then shipped them by barge down the Rhine to the Mediterranean before trucking them to the site.

Starting March 25, 2003, teams pushed deck sections from both valley ends using hydraulic presses, cantilevering them over piers until the two halves met 270 meters above the Tarn River on May 28, 2004.

Workers then completed cable tensioning, mounting 154 steel cables from seven 87-meter pylons.

The bridge opened to traffic on December 16, 2004. The viaduct forms a critical link on the A75 freeway, connecting Clermont-Ferrand and Béziers along what had long been a problematic route that forced vehicles through Millau without freeway.

The entire project required 85,000 cubic meters of concrete and 36,000 tonnes of steel to construct its seven piers and continuous steel deck spanning 2,460 meters across the Tarn valley.

How Much Did It Actually Cost to Build?

Completing the Millau Viaduct cost €394 million in total, covering design, construction, financing, and toll plaza infrastructure. Eiffage handled all construction financing privately, receiving a 75-year toll collection concession in return.

You can appreciate the toll economics through these key figures:

1. €20 million went specifically toward toll plaza construction
2. 206,000 tonnes of concrete and 36,000 tonnes of steel drove material costs
3. 2022 revenues reached €58 million with an EBITDA of €48.6 million
4. Toll rates range from €8.30 to €10.40 for light vehicles

No government subsidies supported the project. Instead, motorist usage funds full cost recovery, with 2023 sales estimated at €61 million, confirming the concession's strong financial trajectory. The concession agreement also includes a provision for a government takeover as early as 2044 should revenues reach sufficient levels ahead of the full 75-year term.

The viaduct was built to close a critical gap on the A75 autoroute, ultimately shaving 37 miles off the former route connecting Paris to Perpignan.

How Did the Millau Viaduct Transform Travel and Tourism in Southern France?

Beyond its impressive financial returns, the Millau Viaduct reshaped how people move through and experience southern France. Before it opened, summer traffic relief was desperately needed—holiday congestion on the A75 near Millau was legendary, forcing vehicles through crowded valley roads during peak July and August seasons. The viaduct eliminated that bottleneck entirely, cutting travel time dramatically for those heading to the Mediterranean or Spain.

The tourism boom it triggered was equally significant. Millau transformed from a quiet regional town into a major destination, drawing visitors keen to see the structure itself. You can now take boat tours on the Tarn River below, explore nearby Roquefort caves, or walk beneath the viaduct's towering masts. Engineering enthusiasts, families, and architecture lovers all have compelling reasons to stop and explore. For those who want a deeper understanding of the site, private local guides are available to accompany visitors for anything from a half day to several days.

The surrounding region rewards those who linger, with the Gorge du Tarn, Les Causses, and centuries-old villages offering scenic stops just a short drive from the viaduct itself. Much like the Congo River basin, which supports a second-largest rainforest that sustains extraordinary biodiversity across Central Africa, the landscapes surrounding the Millau Viaduct form an interconnected natural and cultural ecosystem worth exploring at length.
