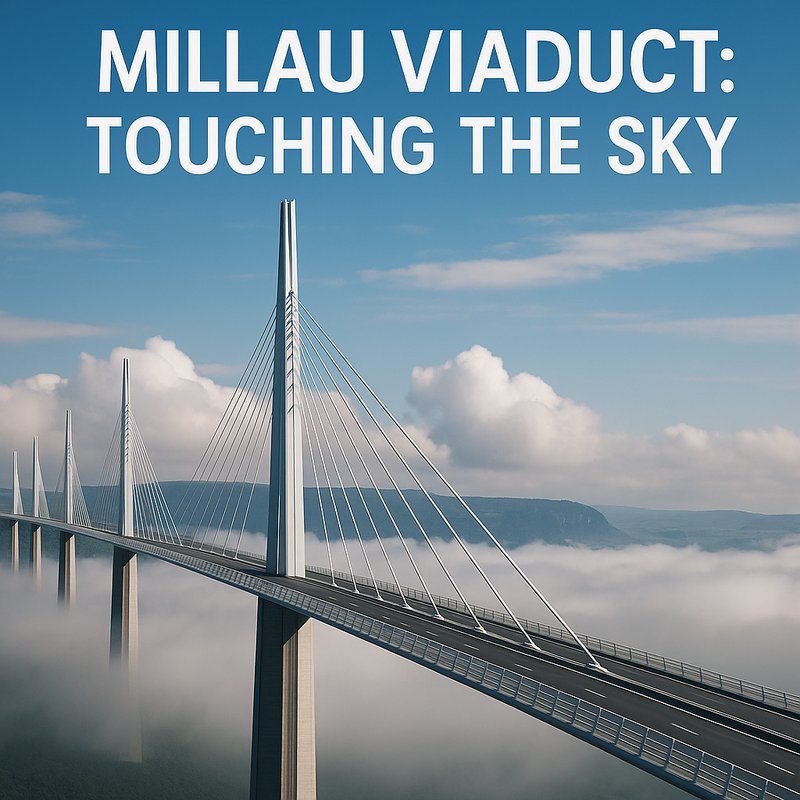

Millau Viaduct: Touching the Sky

When you think of record-breaking bridges, the Millau Viaduct likely isn't the first structure that comes to mind. Yet it stands taller than the Eiffel Tower and pierces through clouds above southern France. It's an engineering achievement that reshaped an entire region. Behind its elegant silhouette lies a fascinating story of design, ambition, and precision construction. What you'll discover about this bridge might genuinely change how you see modern infrastructure.

Key Takeaways

• The Millau Viaduct's road deck soars 270 m above the Tarn River, making it Europe's highest road bridge deck.
• Pylon P2 rises 244.96 m, once the world's tallest bridge pylon, with its mast reaching 343 m — 13 m taller than the Eiffel Tower.
• The viaduct spans 2,460 m across the Tarn valley, touching the ground in only nine places.
• Seven steel pylons, each 87 m tall and weighing 700 tonnes, support 154 cables across six central spans of 342 m each.
• Inaugurated in December 2004, the viaduct was designed to last at least 120 years and has since served over 60 million vehicles.

What Makes the Millau Viaduct the World's Tallest Bridge?

The Millau Viaduct in southern France holds the title of the world's tallest bridge, with its tallest pylon, P2, reaching a structural height of 343 metres (1,125 ft) — surpassing even the Eiffel Tower.

You can appreciate how pylons P2 and P3, measuring 244.96 metres and 221.05 metres respectively, shattered previous world records for bridge towers.

The roadway deck sits 270 metres above the Tarn River, making it Europe's highest road bridge deck.

This extraordinary height isn't just an engineering achievement — it delivers a powerful aesthetic impact that draws visitors from around the world, generating a significant tourism boost for the Millau region.

The viaduct's scale transforms a functional crossing into a genuine landmark. The structure was built to last at least 120 years, reflecting the ambition and confidence engineers placed in its design and materials.

Spanning 2,460 metres in total length, the viaduct crosses the Tarn valley while touching the ground in only 9 places, a testament to the elegance of its design conceived by French engineer Michel Virlogeux and realised by English architect Lord Norman Foster.

The Engineer and Architect Who Designed the Millau Viaduct

Behind the Millau Viaduct's record-breaking achievement stand two key figures: French structural engineer Michel Virlogeux and British architect Sir Norman Foster. Their collaboration shaped one of history's greatest engineering triumphs.

Virlogeux insights drove the technical foundation, while Foster aesthetics transformed raw engineering into visual poetry. Together, they won the 1996 design competition with a revolutionary multi-hauban cable-stayed structure.

Their combined vision delivered:

• A delicate, transparent structure crossing the Tarn River gorge
• Optimum spans carefully balanced between towering columns
• Elegant masted design blending modernism with natural surroundings
• Pylons setting European records for height
• A structure surpassing the Eiffel Tower's height

The bridge's design shares a similar conceptual approach to that of the Millennium Bridge over the River Thames, reflecting a consistent philosophy of marrying structural elegance with architectural refinement. The viaduct stretches an impressive 2640 metres in length, carrying A75 freeway traffic between Clermont-Ferrand and Béziers across a valley reaching up to 2.5 km wide. Much like the revered painters of the Dutch Golden Age, who prioritised quality over quantity in their craft, Virlogeux and Foster pursued excellence above all else, producing a singular masterpiece rather than a catalogue of ordinary crossings. You're looking at what happens when world-class engineering expertise meets architectural brilliance — a bridge that genuinely touches the sky.

Why the Millau Viaduct Is Built With a Gentle Curve

When you look at the Millau Viaduct from above, its deck doesn't run in a straight line — it follows a gentle horizontal curve with a radius of 20,000 meters across its 2,460-meter length.

This curve isn't decorative. It serves driver comfort by creating a natural visual guide across the valley, while its landform integration allows the structure to follow the terrain between the two plateaus economically.

The curve also supports construction sequencing, as teams prepared deck sections on both valley sides before joining them at 270 meters height.

Aerodynamically, the curve contributes to stability against lifting forces, complementing the trapezoidal deck's slender profile.

Combined with its aesthetic appeal, this design decision made the viaduct both structurally efficient and visually coherent within its landscape. Much like how colonial negotiations at the Berlin Conference shaped the DRC's coastal corridor for trade access, deliberate political and engineering decisions can permanently define how regions connect to the wider world. The bridge carries the A75 motorway, providing an alternative southbound route that relieves congestion through the town of Millau below. The entire structure was completed within a 39-month construction programme, an remarkably short timeline for a project of such scale and complexity.

How Engineers Built a Bridge Taller Than the Eiffel Tower

Building a bridge taller than the Eiffel Tower demanded more than elegant curves — it required solving problems no engineer had faced at that scale before.

The construction logistics alone were staggering. Engineers coordinated material innovations, massive crews, and precise sequencing across a 36-month deadline:

• Seven concrete piers sunk deep into valley bedrock, with P2 reaching a record 245 metres
• Seven steel pylons, each 87m tall, moved into position using hydraulic transporters
• Steel deck sections prefabricated in Alsace, then transported by barge, sea, and road
• Hundreds of workers ran multiplied crane crews simultaneously to compress the timeline
• North and South deck sections met precisely on May 28, 2004

You're looking at a structure where every decision carried consequences measured in hundreds of metres. The entire bridge rests on 1,500 tonnes of steel cable, suspending a continuous hollow steel deck across a span of 2.5 kilometres. Just as event planners use seating capacity calculation tools to model large-scale venues before committing to a layout, the Millau engineers ran exhaustive simulations of load distribution before a single cable was tensioned.

How 154 Steel Cables Hold Up the Entire Deck

Stretching across a 2.5-kilometre span at 268 metres above the valley floor, the Millau Viaduct's deck doesn't rest on anything solid — 154 steel cables hold it suspended from seven pylons. Each pylon carries 11 cable stays per side, creating cable redundancy that distributes the deck's 40,000-tonne weight plus 10,000 tonnes of road surface across the entire structure.

Individual stays contain between 55 and 91 high-tensile strands, with the strongest cable breaking at 25,000 tonnes. You'd notice that corrosion protection runs three layers deep — galvanisation, petroleum wax, and polyethylene sheathing — plus a double helical weatherstrip preventing water accumulation that triggers wind vibration.

This engineering precision, using roughly 5,000 tonnes of pre-stressed steel, keeps the deck stable without a single expansion joint across all eight spans. The entire cable system was installed after seven steel pylons, each weighing 700 tonnes, were hydraulically lifted, pivoted into vertical position, and lowered onto their anchors on the deck.

The Millau Viaduct's Most Staggering Records

The Millau Viaduct doesn't just cross a valley — it rewrites the record books. When you examine its height milestones and span comparisons, the numbers become almost impossible to grasp.

Here's what makes it extraordinary:

• Its road deck sits 270 meters above the Tarn River, Europe's highest
• Pylon P2 reaches 244.96 meters, once the world's tallest bridge pylon
• The mast atop P2 peaks at 343 meters, surpassing the Eiffel Tower by 13 meters
• Its 2,460-meter total length featured the world's longest cable-stayed deck at opening
• Six central spans each measure 342 meters, equivalent to laying the Eiffel Tower flat

You're not just looking at a bridge — you're witnessing engineering that permanently raised the bar. Delivering 85,000 m3 of concrete to realize this vision required two mobile batching plants and years of specialized formulation work by the Vicat Group's subsidiaries. The entire project was completed and inaugurated by Jacques Chirac on 14 December 2004, just three years after construction began in October 2001.

Who Paid for the Millau Viaduct and What It Cost

Costing approximately €394 million to build — plus an additional €20 million for the toll plaza — the Millau Viaduct was financed entirely by private company Groupe Eiffage, with no government subsidies involved.

This private financing operated under a Design-Build-Finance-Operate model, granting Eiffage a 75-year concession running until 2080.

The European Investment Bank contributed a €50 million loan in 2002, followed by a second loan of €143.25 million in 2007, covering 25% of the €573 million non-recourse finance package.

Dexia Crédit Local and DEPFA Bank each contributed €214.875 million. Guarantees were provided fifty-fifty by credit enhancers FSA and MBIA.

The financing structure was pegged to French inflation and tailored to the viaduct's economic life and toll revenues. To recoup its investment, Eiffage charges toll rates for cars of approximately €8.30 in low season and €10.40 during summer.

Eiffage later acquired remaining shares for €236.5 million, becoming sole shareholder of the concession company.

How the Viaduct Transformed Travel Through the Tarn Valley

Before the Millau Viaduct opened, getting through the Tarn Valley was a genuine ordeal. You'd crawl through Millau's streets during peak season, trapped in bottlenecks that choked tourist flow and frustrated drivers heading to the Mediterranean.

The viaduct changed everything. It now links the Causse du Larzac and Causse Rouge plateaus directly, cutting crossing time to just 20 minutes.

Here's what that transformation means for you:

• No more descending into the valley on congested N9
• Faster Paris-to-Montpellier journeys via the A75–A71 axis
• Reduced holiday bottlenecks every July and August
• Stronger local economy through improved regional connectivity
• Over 60 million vehicles served since December 2004

You're not just crossing a valley — you're using Europe's most efficient Mediterranean route. The project also delivers meaningful environmental benefits, saving around 40,000 tons of CO2 emissions from heavy goods vehicles that once idled through the valley congestion. Its design and construction excellence earned the designers the Outstanding Structure award from the International Association for Bridge and Structural Engineering in 2006.

Why the Millau Viaduct Became a Cultural and Engineering Landmark

When the Millau Viaduct opened in December 2004, it didn't just solve a traffic problem — it instantly became one of the world's most celebrated engineering achievements. It earned the Environment Design and Architecture Award in 2005 and the Outstanding Structure Award from IABSE, confirming its global status.

You can see why it resonates beyond engineering. It's become part of France's cultural identity, standing alongside the Concorde and Channel Tunnel as symbols of national ingenuity. Locals call it an authentic Aveyron monument, waving like a flag over the Millau sky.

Its impact on the local economy is equally significant. By eliminating the traffic bottleneck that once strangled Millau, the viaduct repositioned the town as a destination, attracting curious visitors to Occitania every year since its opening. By October 2010, approximately 27 million vehicles had crossed the viaduct, reflecting just how dramatically it transformed movement through the region.

The viaduct's creation was the result of a remarkable collaboration, born from the combined vision of architect Lord Norman Foster and chief engineer Michel Virlogeux, whose prior landmark works helped shape one of the most elegant and ambitious structures of the 21st century.
