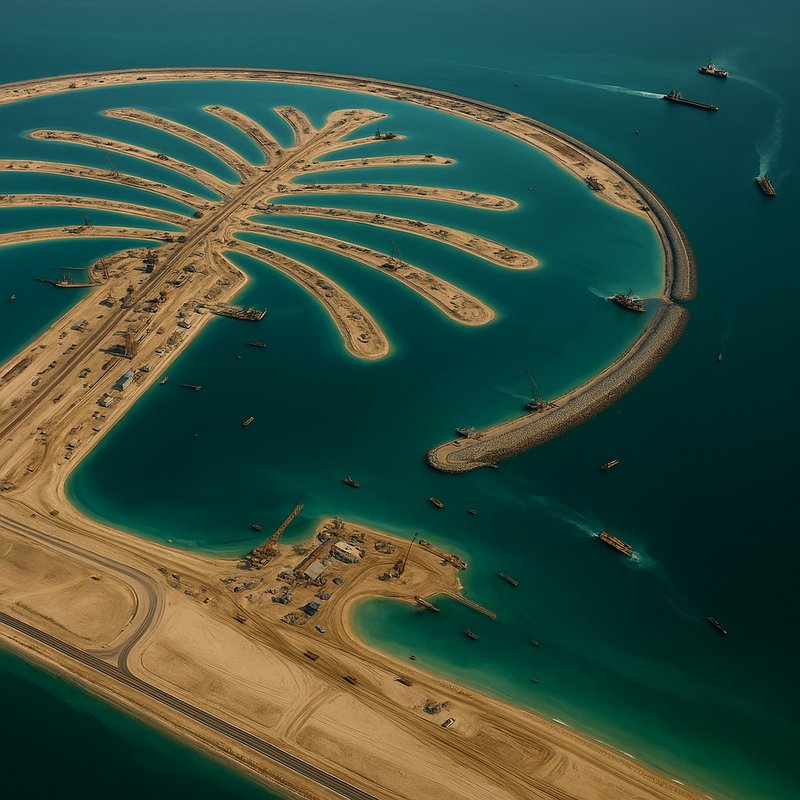

Palm Jumeirah: Reclaiming the Sea

You've probably seen the images—a massive palm-shaped island rising from the Arabian Gulf like something out of a science fiction novel. But Palm Jumeirah isn't just an architectural curiosity. It's a feat of engineering that reshaped an entire coastline, displaced ecosystems, and required more raw material than most people can comprehend. The numbers, the technology, and the consequences are all more fascinating than the glossy tourist brochures suggest.

Key Takeaways

• Palm Jumeirah transformed 560 hectares of the Arabian Gulf into land, extending 5.5 km into the sea and adding 56 km of coastline.
• Construction used 120 million cubic metres of sea sand, chosen over desert sand because its angular grains interlock for structural stability.
• GPS-guided dredgers placed sand with 1-centimetre accuracy, ensuring precise symmetry across 17 fronds, a trunk, and an 11 km breakwater.
• Vibro-compaction drilled 200,000 holes across the island to mechanically stabilise reclaimed sand into a denser, load-bearing structure within months.
• Seven million tons of rock blasted from the Hajar Mountains formed the crescent breakwater shielding the island from longshore drift.

What Is Palm Jumeirah and Why Does It Exist?

Sitting on the Persian Gulf in Jumeirah, Dubai, Palm Jumeirah is an archipelago of artificial islands designed to resemble a palm tree when viewed from above. Its shape — a trunk, 17 fronds, and a crescent-shaped breakwater — carries deep cultural symbolism, reflecting the region's historical connection to date palms as a symbol of life and prosperity.

Sheikh Mohammed bin Rashid Al Maktoum conceptualized the project in the late 1990s with a clear purpose: expand Dubai's coastline and establish unrivaled tourist magnetism on a global scale. The goal was to triple annual visitors from 5 million to roughly 15 million. As part of the broader Palm Islands project, the development was expected to increase Dubai's shoreline by 520 kilometres upon completion.

As the first of Dubai's artificial islands, Palm Jumeirah added 56 kilometers to the city's coastline, a remarkable engineering achievement that signaled a new era of ambitious coastal development in the region. Much like how the Democratic Republic of the Congo retains a narrow but strategically vital coastal corridor that prevents it from being classified as landlocked, even a relatively small stretch of coastline can carry enormous economic and geopolitical significance.

How Engineers Reclaimed Palm Jumeirah From the Arabian Gulf

Building Palm Jumeirah on an open stretch of the Arabian Gulf wasn't just an architectural ambition — it was an engineering problem with no existing playbook. Coastal engineering teams had to rethink sediment management from scratch, keeping 120 million cubic meters of dredged sand exactly where they placed it.

Three core methods made that possible:

1. Geotextile membranes locked the breakwater foundation in place, preventing sand erosion from Gulf currents.
2. GPS-guided dredgers sprayed marine sand with 1-centimeter accuracy, sculpting each frond precisely.
3. Vibro-compaction technology drilled 200,000 holes across 560 hectares, stabilizing loose reclaimed land within months instead of decades.

You're essentially looking at a man-made landmass engineered to behave like natural ground — reliably, permanently, and under constant environmental pressure. The breakwaters surrounding the island were deliberately designed with gaps to maintain water circulation and prevent stagnation in the surrounding Gulf waters. This kind of careful environmental planning mirrors broader concerns seen across the world's seas, where declining fish stocks and plastic pollution have made sustainable coastal development a growing priority. Land reclamation was fully completed by 2006, at which point the island's iconic palm shape had become clearly visible in satellite photographs taken above the Arabian Gulf.

Why Palm Jumeirah's Builders Rejected Desert Sand for Seabed Sand

Despite the UAE sitting atop vast stretches of desert, Palm Jumeirah's engineers couldn't use a single grain of it. Desert sand's grain behavior explains why — wind shapes each particle into a perfectly round, smooth sphere. Stack those grains together, and they act like tiny ball bearings, shifting and collapsing under pressure. That makes desert sand completely useless for building foundations.

Seabed sourcing solved the problem. Material choice shifted to the ocean floor, where waves and currents create angular, rougher grains that physically interlock when compressed. Engineers dredged 120 million cubic metres from the Arabian Gulf, extracting sand with the structural grip desert material simply can't provide.

You're fundamentally looking at a city built on the sea's floor rather than the surrounding desert — because the desert wouldn't hold it. Combined with the 7 million tons of rock blasted from the Hajar Mountains, the total volume of reclaimed material could form a two-metre-wide wall circling the entire globe three times over. Once the sand was placed, engineers used mechanical vibro-compaction — driving water jets into the seabed to rearrange particles into a denser, more stable structure — to prevent the kind of ground failure that could otherwise occur during an earthquake.

How Much Sand and Rock Did Palm Jumeirah Actually Need?

Constructing Palm Jumeirah demanded staggering quantities of raw material — 94 to 120 million cubic metres of sand dredged from seabeds six nautical miles offshore, plus 7 million tons of rock blasted from the Hajar Mountains for the crescent breakwater alone.

These volumes drove enormous construction costs and raised serious environmental impact concerns. To grasp the scale, consider:

1. Sand and rock combined could build a 2-metre-wide wall circling the entire globe three times.
2. Rock alone equals half the material used in a single Egyptian pyramid at Giza.
3. 560 hectares required vibro-compaction technology to stabilize the reclaimed seabed foundation.

You're looking at a project where raw material quantities weren't just impressive — they were genuinely unprecedented in modern coastal engineering history. The rocky material was sourced from 16 quarries scattered across the hinterland to meet the project's extraordinary demands. Additionally, the sand placed on top of the island was deposited using a technique called rainbowing, which allowed crews to spray material with precision across the vast reclaimed surface.

How GPS Technology Gave Palm Jumeirah Its 17 Perfect Fronds

Precision GPS technology turned an architect's dream into 17 geometrically perfect fronds stretching across the Arabian Gulf. You'd be amazed at how engineers used satellite calibration to spray dredged sand with sub-meter accuracy, shaping each frond's length and curvature uniformly across a 5 km diameter island. Without this precision, the palm's symmetrical geometry would've collapsed under shifting currents and winds.

GPS didn't just map the fronds—it made real time corrections as waves and erosion threatened the form during construction. Engineers monitored every sand placement, ensuring the 17 fronds, central trunk, and 11 km crescent breakwater held their intended shape. This technological precision ultimately created 78 km of added shoreline and produced a recognizable structure visible from space. The entire reclamation effort was carried out by Nakheel Properties, the developer responsible for transforming 560 hectares of the Arabian Gulf into one of the largest man-made islands in the world.

How Long Did Palm Jumeirah Take to Build?

The same GPS precision that sculpted Palm Jumeirah's 17 fronds also had to sustain an ambitious six-year construction race against nature.

The project timeline ran from June 2001 to completion in 2008, delivering a $12 billion landmark that added 56 km of shoreline to Dubai.

The construction duration broke down into distinct milestones:

1. 2001–2004 – Dredging and land formation using 94 million cubic meters of sand
2. 2004–2006 – Underground utilities, desalination plants, and vacuum sewer installation
3. 2006–2009 – Residential handovers, with 500 families settling by October 2007, and 28 Crescent hotels opening by 2009

You're basically looking at a man-made island the size of 600 football pitches built in just six years. To protect the island from wave action and erosion, the surrounding breakwater stretches 11 kilometers in length, forming a critical barrier that shields the fronds and trunk from longshore drift. To keep the island connected to the mainland, a 5.45 km monorail opened in 2009, giving residents and visitors a direct transit link to Dubai proper.

How Big Is Palm Jumeirah Really?

Most people struggle to grasp Palm Jumeirah's true scale until the numbers hit you: 5.72 km² of reclaimed land, equivalent to 600 football pitches, punched 5–5.5 km into the Arabian Gulf. Builders used 94 million m³ of sand and rock to create 560 hectares of entirely new territory.

The structure's layout amplifies that scale further. An 11 km crescent wraps around 17 residential fronds, adding 56 km of new beachfront and stretching Dubai's coastline by 78.6 km. That expanded shoreline directly drives real estate trends, with over 10,000 units ranging from compact studios to 10-bedroom villas commanding premium waterfront prices.

You'll also notice tourist capacity reflects this ambition—30+ hotels absorb visitors who come specifically to experience an island built where open sea once existed. To keep those inner waters healthy, the crescent incorporates two engineered openings that maintain tidal exchange and keep the lagoons crystal clear and oxygenated.

Construction began in August 2001 and at its peak demanded a daily workforce of around 40,000 employees to maintain the relentless pace required to meet the three-year target completion period.

What Did Palm Jumeirah's Construction Do to the Ocean?

Building Palm Jumeirah on open ocean came at a steep environmental cost. The construction triggered serious marine pollution and widespread habitat loss across the region. Here's what the dredging and development actually caused:

1. Water quality collapsed — temperatures rose, acidity increased, and chlorophyll levels spiked, turning surrounding waters green and stagnant.
2. Marine habitats were destroyed — coral reefs, oyster beds, seagrass fields, and turtle nesting sites were buried or eliminated entirely by sediment.
3. Coastal erosion accelerated — marine sand extraction removed 10,000–15,000 cubic meters of beach annually, while altered currents weakened surrounding shorelines.

You can't move 94 million cubic meters of sand without consequences. Fish reproductive cycles were disrupted, entire species disappeared, and ecosystems that took centuries to form were smothered within years. Sand displacement clogged channels between islands and altered Persian Gulf currents, reducing the natural water circulation that marine life depended on to survive.

Palm Jumeirah was only the beginning — displaced marine sediment was tracked relocating up to 40 kilometers over five years, reshaping the seabed far beyond the construction zone and extending ecological damage well past the island's immediate footprint. Just as surveys of rural water storage systems can expose contamination risks and structural vulnerabilities on land, ecological assessments of the Gulf revealed how deeply the construction had compromised the region's underwater infrastructure.

How Palm Jumeirah's Artificial Reefs Replaced What Construction Destroyed

After wrecking the seabed, Nakheel deployed sunken fighter jets as artificial reefs around Palm Jumeirah to rebuild what dredging had destroyed. Positioned near the fronds and trunk, these durable structures mimicked natural reefs and withstood UAE coastal conditions. Within years, coral, fish, and shellfish colonized the jets, reversing local species extinctions caused by construction.

You'll find that the reefs also sparked interest in marine archaeology, drawing divers enthusiastic to explore submerged military aircraft teeming with new life. Beyond restoration, they became platforms for reef education, helping researchers and visitors understand how engineered habitats can recover biodiversity. By improving water circulation in breakwater-restricted areas and supporting spawning grounds, these artificial reefs successfully replaced the coral beds and oyster habitats that construction had buried under sediment. Massive coral species grow as slowly as 0.3 to 2 centimeters per year, meaning natural reef recovery without artificial intervention could otherwise take thousands of years.

Construction of the breakwater surrounding Palm Jumeirah required an enormous 5.5 million cubic meters of rock, a volume equivalent to roughly half the rock used to build the Great Pyramid of Giza.

How Palm Jumeirah Permanently Reshaped Dubai's Coastline

Before Palm Jumeirah's construction, Dubai's coastline stretched just 7 km. Through aggressive land reclamation policy, engineers transformed that modest shoreline into something unrecognizable—and permanent.

Here's what that transformation actually delivered:

1. 78 km of new beachfront, multiplying Dubai's original coastline more than tenfold
2. 5 km of offshore expansion into the Arabian Gulf, extending coastal jurisdiction far beyond its previous boundary
3. 520 hectares of new land, shaped by 94 million cubic meters of dredged seabed material

You can now see the palm-shaped contour from space. The 5.4 km² enclosed lagoon reshaped water movement, while the 11 km crescent barrier redefined where Dubai's coastline ends.

This wasn't temporary—it permanently altered the region's geography, tidal patterns, and marine currents extending 3–5 km outward.
