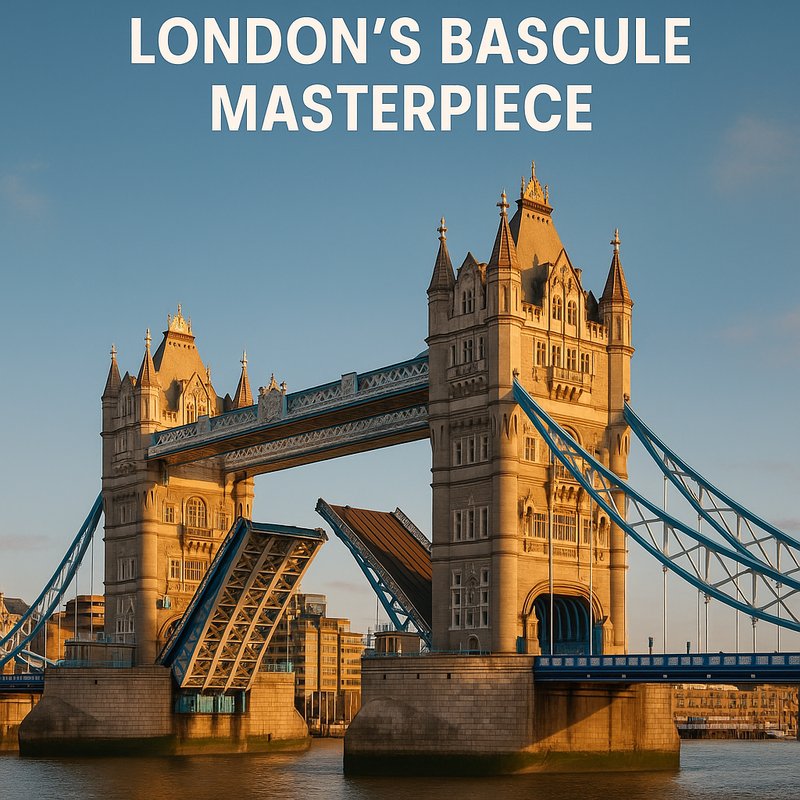

Tower Bridge: London's Bascule Masterpiece

You've probably crossed it, photographed it, or seen it on a postcard a hundred times. But Tower Bridge holds far more secrets than its iconic silhouette suggests. Beneath that Victorian stonework lies a hidden steel skeleton, and those famous towers conceal engineering tricks that most visitors never notice. If you think you already know this bridge, you're about to discover you've only ever seen its surface.

Key Takeaways

• Tower Bridge's central 200-foot span splits into two bascules, each raising to 86° in under five minutes, roughly 850 times per year.
• Each bascule leaf weighs over 1,000 tons but feels effortless to lift, balanced by approximately 400-ton counterweights on an off-centre pivot.
• The steel skeleton is completely hidden beneath 200,000 cubic feet of Cornish granite and Portland stone cladding.
• Originally powered by steam-powered accumulators, the hydraulic mechanism was upgraded to electro-hydraulic systems in 1972 and operated remotely since 2000.
• Construction took eight years, used 31,000,000 bricks, and cost £1,184,000 before opening on 30 June 1894.

The Fascinating Story Behind Tower Bridge's Construction

By the 1870s, London's rapid growth had pushed its infrastructure to a breaking point. Tower Hamlets' population had quadrupled, and London Bridge was dangerously congested. In 1876, petitions demanded a new eastern crossing, prompting the Corporation of London to form a Special Bridge or Subway Committee. Victorian politics shaped every decision—over 50 designs competed publicly before Sir Horace Jones and Sir John Wolfe Barry's bascule design won approval in 1884.

Construction began on 22 April 1886, showcasing remarkable construction innovations. Workers poured over 70,000 long tons of concrete into the piers and used 11,000 long tons of steel in the towers. The first caisson was sunk in September 1886 to nearly 8 metres under the riverbed, creating a dry worksite for the foundational work to begin.

Daily, 432 workers labored across eight years, consuming 31,000,000 bricks. The completed bridge cost £1,184,000 and opened on 30 June 1894. Just as American and Canadian railroads had adopted standardized time zones in 1883 to coordinate schedules and modernize commerce, Tower Bridge's completion represented a similarly bold step toward modernizing infrastructure to meet the demands of a rapidly industrializing era. The opening was marked by a royal procession, with boats filling the Thames and the bridge decorated and painted brown for the occasion.

Why Tower Bridge Is the World's Most Famous Bascule Bridge

When Tower Bridge opened on 30 June 1894, it wasn't just another crossing over the Thames—it was the world's most sophisticated bascule bridge, and it's held that title ever since.

You can see why immediately: its central 200-foot span splits into two bascules, each weighing over 1,000 tonnes, raising to 86 degrees in just five minutes. That engineering precision, combined with its Victorian symbolism through striking neo-Gothic architecture, made it instantly iconic.

The hydraulic evolution it pioneered is equally impressive—steam-powered accumulators originally drove the mechanism before electro-hydraulic systems replaced them in 1972. The bridge's framework required over 11,000 tonnes of steel to construct its towers and walkways.

What you're looking at isn't a drawbridge; it's a perfectly balanced bascule system using an off-centre pivot, making massive weight feel effortless. No other bascule bridge combines this technical mastery with cultural impact. Much like how France's overseas territories extend its political reach across multiple oceans and time zones, Tower Bridge's influence stretches far beyond its physical location on the Thames. The bridge was designed by Horace Jones and engineered by John Wolfe Barry, a collaboration that produced one of history's most enduring feats of Victorian engineering.

The Steel Skeleton Tower Bridge Hides Beneath Its Stone

Most visitors to Tower Bridge see only its ornate neo-Gothic exterior—Cornish granite and Portland stone carved into pointed arches and decorative facades—never suspecting that 11,000 tons of steel skeleton lie beneath. That stone cladding spans 200,000 cubic feet, deliberately masking the industrial framework underneath.

You'd never guess that over 4 million hidden rivets bind internal steel girders throughout both towers, each standing 213 feet tall. Engineers anchored the entire structure using 70,000 tons of concrete driven into the riverbed. Concealed staircases and maintenance shafts run through the towers, while underground chambers house original steam engines beneath stone floors. Sir John Wolfe Barry designed every steel element to carry enormous loads invisibly, letting the Gothic facade claim all the visual attention. Much like Istanbul's Bosphorus bridges blend modern engineering with a city shaped by centuries of empire, Tower Bridge proves that structural ambition and aesthetic grandeur need not be mutually exclusive.

How Tower Bridge's Famous Bascules Actually Work

Though the Gothic towers steal the spotlight, Tower Bridge's real engineering marvel hides in plain sight: its double-leaf bascule system. Each leaf weighs over 1,200 tons, yet a 400-ton counterweight keeps the balance, working like a seesaw so the hydraulic system doesn't strain lifting the full load.

When a lift begins, the bascules pivot on trunnion bearings supporting the main shafts — original bearings installed 130 years ago still doing their job today. The counterweights descend into massive counterweight chambers buried within the piers as the leaves rise through an 82° arc. The entire operation completes in under five minutes. Nose bolts then hydraulically interlock the bascules when closed, while rear pawls lock the back ends, keeping road traffic safely supported.

These Bascule Chambers — each soaring 27 metres high and measuring 21 × 59 metres — are encased within pier walls at least 10 feet thick, constructed from Staffordshire Brindle and Gault bricks and faced with granite.

What was once a mechanical spectacle occurring 6,000 times a year in the 1890s has dwindled to around 800 lifts annually today, mostly accommodating leisure vessels rather than commercial shipping traffic.

Tower Bridge's Surprising Role in Wartime London

London's streets weren't the only things under threat during the Blitz — Tower Bridge and its surroundings became a frontline in Germany's sustained bombing campaign. Starting September 7, 1940, German forces bombed London for 57 consecutive nights, reducing churches, homes, and offices to rubble.

The area around Tower Hill suffered its worst air raid aftermath on December 8–9 and 29, 1940. Meanwhile, wartime defenses weren't limited to shelters and blackouts. Authorities stationed an anti-aircraft gun directly on top of Tower Bridge, which had actually shot down a German plane as far back as May 1918. Nearby, a barrage balloon floated above the Tower of London's moat to deter low-flying aircraft. You can still spot shrapnel damage on metal near the West Gates today.

The devastating raid of December 29, 1940, known as the Second Great Fire of London, ignited approximately 1,500 simultaneous fires stretching from St Paul's Cathedral all the way to Islington, marking the largest continuous area of destruction in any single Blitz attack across the United Kingdom.

In 1944 and 1945, London faced a terrifying new threat when Germany launched V1 and V2 rockets, known as Vergeltungswaffen, or revenge weapons, with V1 flying bombs thought to have been aimed roughly at Tower Bridge itself.

How Tower Bridge Handles 40,000 Crossings Every Single Day

Every day, roughly 40,000 people cross Tower Bridge — yet the bridge never stops working. You might assume managing that pedestrian flow would be the bridge's biggest challenge, but ships actually take absolute priority. Vessels notify operators 24 hours in advance, and when a ship needs passage, all 40,000 daily crossings simply wait.

The bascule mechanism rises approximately 850 times per year, averaging 2.4 lifts daily. Since 2000, operators control this remotely rather than on-site, streamlining the entire process. Hydraulic maintenance keeps these massive moving components functioning reliably despite constant use — a critical requirement given the bridge's 244-meter span carries both tourist and practical commuter traffic.

Even President Clinton waited 20 minutes in 1997 for a passing vessel. The maritime rules don't bend for anyone. The bridge's opening ceremony was held in 1894, eight years after construction first began. At the time of its opening, it was recognized as the world's largest bascule bridge, a distinction earned through both its scale and mechanical sophistication.

Why Tower Bridge Still Defines London's Eastern Skyline

Few bridges anywhere in the world carry the same visual weight as Tower Bridge. Whether you're viewing it from St Katharine's Dock, Canary Wharf, or the Tower of London itself, its neo-Gothic towers anchor London's eastern skyline with unmistakable authority. Surrounded by decades of modern riverfront development, it maintains visual continuity between the medieval fortress beside it and the contemporary city stretching beyond.

The City of London calls it London's defining landmark, and that reputation shows up everywhere — marathon kitbags, phone cards, and endless souvenirs all carry its image. You'll also find it regularly mistaken for London Bridge, a confusion that famously cost one American buyer dearly. When London Bridge was sold in the 1960s, buyer Robert P. McCulloch had it transported all the way to Lake Havasu City, believing he had purchased the far more iconic structure. After 130 years, Tower Bridge doesn't compete with the skyline around it. It defines that skyline entirely.

The bridge itself opened in 1894, giving London a crossing that was both a functional feat of Victorian engineering and an instant architectural statement on the Thames.
