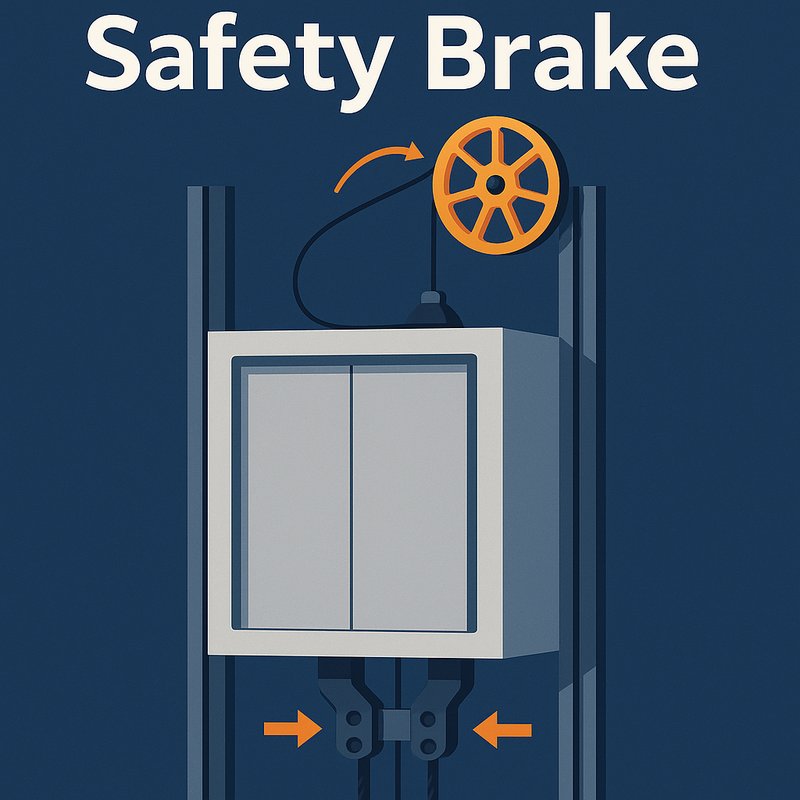

Elevator Safety Brake

You've probably stepped into an elevator without giving its safety systems a second thought. That's understandable—they work quietly behind the scenes. But the mechanical ingenuity keeping you from free fall is genuinely remarkable. From a 19th-century showman's dramatic demonstration to today's precision-engineered braking systems, there's more to this technology than you'd expect. What you'll discover next might change how you look at that ordinary metal box.

Key Takeaways

• Elisha Otis introduced the safety elevator concept in 1854, demonstrating that a severed rope would not cause a deadly free fall.
• The overspeed governor triggers automatically at 115%–140% of rated speed, engaging safety jaws against guide rails without relying on building power.
• Safety jaws expand outward to grip guide rails, decelerating the cab progressively rather than stopping it with a sudden, violent impact.
• Once engaged, the safety brake acts as a self-locking mechanism, remaining active until technicians manually reset it during emergency maintenance.
• Overspeed governors have a recommended service life of 10–15 years, varying by manufacturer, usage frequency, and maintenance history.

What Is an Elevator Safety Brake and How Does It Work?

When an elevator malfunctions, the safety brake is the last line of defense standing between you and a free fall down the hoistway. It's a mechanical safety mechanism mounted underneath the cab that engages independently when all other systems fail. You don't need to worry about it relying on electricity or other components — it works on its own.

Understanding this during passenger education helps you trust the system's reliability. The brake monitors speed and acceleration through a governor equipped with sensors. Once it detects overspeed, it wedges directly onto the guide rails, bringing the cab to a secure halt.

During emergency maintenance, technicians reset the brake manually by reversing its rotation. It's a self-locking mechanism, meaning it stays engaged until deliberately released. Introduced in 1854, the safety elevator was the invention that first proved this concept to the world by demonstrating that a platform would remain secure even after its ropes were cut.

The elevator brake also serves multiple protective functions beyond emergencies. In its stationary state, brake spring pressure keeps the pads clamped firmly against the brake wheel, preventing any unintended movement of the car while the elevator is at rest.

What Types of Safety Brakes Are Found in Modern Elevators?

Modern elevators don't rely on a single braking mechanism — they incorporate several distinct safety brake types, each engineered for a specific failure scenario.

Electromechanical brakes mount directly on the motor shaft, engaging automatically via spring tension whenever power cuts out.

Emergency safety brakes work with governors to clamp onto guide rails during overspeed events, operating independently of electrical systems.

Dual plunger assemblies engage the drive sheave through multiple triggers, preventing drift if one brake fails — a mandatory upgrade by January 2027.

Rope grippers clamp hoisting ropes to stop unexpected car movement, offering a cost-effective retrofit that complies with ASME A17.1.

Dynamic and pneumatic rope brakes round out the system, limiting runaway speed and activating when the car creeps with doors open. Fail-safe electromagnetic spring-applied brakes are particularly preferred for elevators because they deliver holding torque in de-energized conditions, ensuring the car remains secured even during a complete power failure.

Hydraulic elevators take a fundamentally different approach, controlling car movement through hydraulic fluid flow and relying on a rupture valve to prevent free fall in the event of a burst pipe or hose.

How Does the Overspeed Governor Trigger the Safety Brake?

The overspeed governor acts as the elevator's speed sentinel, continuously comparing the car's velocity against its rated limit and triggering a mechanical chain reaction the instant that threshold gets exceeded.

When speed hits 115%–140% of the rated limit, centrifugal dynamics cause flyweights to swing outward, instantly locking the governor wheel. Alternatively, inertia activation shifts the flyweight assembly without relying on centrifugal force, functioning bidirectionally for upward or downward movement.

Once the wheel locks, the steel wire rope connecting the governor to the safety gear pulls taut, engaging the safety jaws against the guide rails. Simultaneously, the control switch cuts power to the motor circuit, and emergency brakes wedge into the rail space.

The entire sequence is automatic, requiring no human intervention. This mechanism operates independently of the elevator's power and control systems, making it a redundant safety layer that remains fully functional even during power failures or main control faults.

Depending on the manufacturer, usage frequency, and maintenance history, the overspeed governor has a 10–15 year service life before replacement is typically recommended to ensure continued reliability.

What Happens When an Elevator Safety Brake Activates Mid-Fall?

During a mid-fall scenario, the overspeed governor detects excessive speed and independently activates the safety gear without relying on electric power. The brake jaws expand outward, gripping the stationary guide rails and decelerating the car progressively until it stops within a safe distance. You'll feel a sudden jolt, but no free fall occurs since hoist rope tension and counterweights minimize the net fall force. The counterweight is typically designed to equal the empty car weight plus half the nominal load, meaning the system is inherently balanced at partial capacity.

Passenger psychology plays a significant role here, as the abrupt stop can trigger fear and disorientation, though lighting and communication systems activate immediately to reassure you. Once stationary, post-incident protocols require a thorough inspection before the elevator resets or returns to service. The fail-safe design guarantees the car holds its load securely on the guide rails, even if the hoist ropes fail. Regular professional inspections verify that safety brakes, motors, and electrical systems remain in reliable working condition to prevent such failures from occurring in the first place.

How Have Elevator Safety Brakes Improved Since the First Design in 1854?

Elevator safety brakes have come a long way from the mechanical evolution that began with Otis's 1854 ratchet and pawl brake. That original design stopped a falling car within inches after a rope cut. By 1865, flyball governors added overspeed detection for steam-powered lifts. Hydraulic systems got speed regulators by 1864, and door interlocks arrived even earlier in 1859.

You can trace the biggest regulatory milestones to 1921, when ASME A17.1 mandated enclosed cars, standardized governors, and consistent brake activation. Post-WWII automation integrated electronics directly into safety brake systems, replacing mechanical-only triggers with precise speed monitoring. The gearless traction machine, developed in 1903, further advanced elevator safety by enabling construction of true skyscrapers and demanding more sophisticated braking systems to handle greater heights and speeds. Today's designs combine governor-triggered brakes, electronic controls, and cumulative code requirements, making free-fall incidents nearly nonexistent compared to the exposed, unregulated elevator cars of the early 1900s.

Public confidence in elevator safety grew significantly after Otis staged his famous Crystal Palace demonstration in New York City in May 1854, where he rode a platform high in the air and ordered the rope cut to prove the safety device would prevent a deadly fall. Much like the artistic rivalry between Leonardo da Vinci and Michelangelo in 1504, which pushed both masters toward innovation even when their greatest works went unfinished, competitive ambition in engineering has historically driven safety advancements far beyond what any single inventor might have achieved alone.
