Gutenberg Printing Press

You've probably heard that Gutenberg changed the world, but you likely don't know how his press actually pulled it off. Behind that transformation were precise metal molds, oil-based inks, and a screw mechanism borrowed from winemaking. Each detail mattered more than you'd expect. If you're curious about the mechanics, the masterpiece it produced, and why Europe couldn't ignore it, you'll want to keep going.

Key Takeaways

• Gutenberg modeled his press mechanism on wine and olive presses, adapting their pressure application to transfer inked type onto paper.
• The oil-based ink used was made from lampblack pigment mixed with linseed oil, walnut oil, turpentine, and pine resin.
• Six compositors worked simultaneously, setting six pages containing 15,600 characters at a time for efficient production.
• The press could produce approximately 250 sheets per hour, compared to just 40 pages per day copied by hand.
• Only 20 complete copies of the Gutenberg Bible survive today, held in institutions like the Library of Congress and British Library.

How Gutenberg's Printing Press Actually Worked

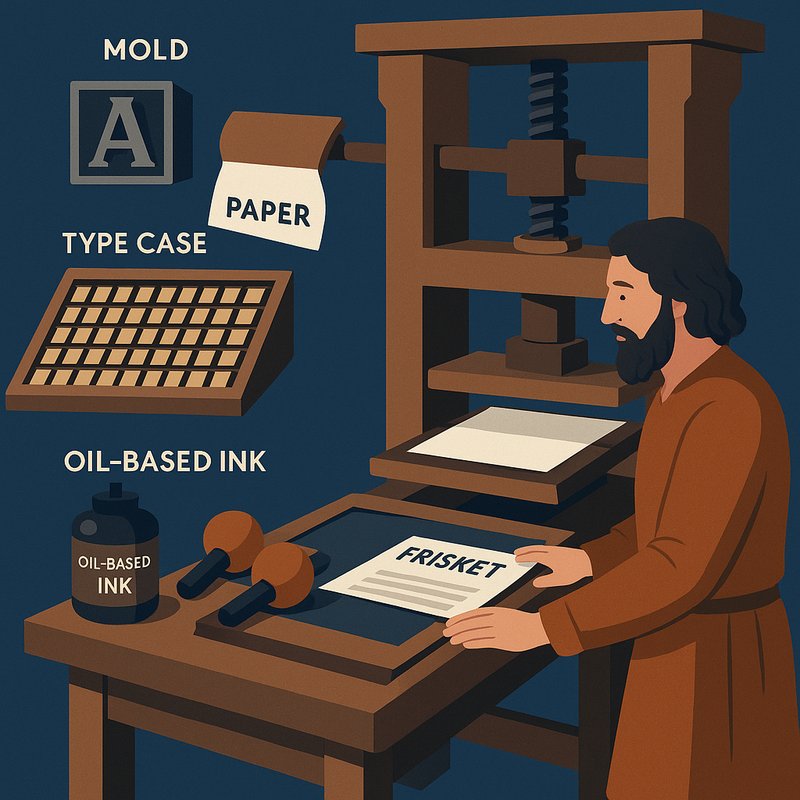

Gutenberg's printing press worked through a carefully coordinated sequence of steps, each playing a critical role in producing clean, consistent text at a scale previously unimaginable. You'd start by arranging movable type letters into a chase, securing them onto the bed stone.

Next, an inker would rub two leather ink balls together before pressing them down onto the type tops. Paper handling came next — you'd dampen each sheet, then position it on the tympan using alignment pins.

A frisket folded over to protect the margins. The mechanical motion that followed involved rolling the forme under the upper platen, then rotating a lever bar to drive the screw downward, pressing paper firmly against inked type.

This sequence could produce roughly 250 sheets per hour. The ink used in this process was a specially developed oil-based ink, which transferred far more effectively onto metal type than water-based alternatives would have.

Before Gutenberg's press, medieval books were expensive and rare because every single copy had to be painstakingly written out by hand, making them accessible only to the privileged few. Much like how multi-spectral camera technology later revealed hidden layers beneath the Mona Lisa, modern analytical techniques have also helped historians better understand the precise materials and methods Gutenberg used in his revolutionary process.

The Ink, Metal, and Molds That Powered the Press

Behind every impression the press made lay a precise combination of materials — ink, metal, and molds — that made the entire operation possible.

Gutenberg's ink composition combined lampblack pigment with boiled linseed oil, walnut oil, turpentine, and pine resin. Unlike water-based inks, this formula adhered cleanly to metal type, producing sharp, glossy prints.

For type casting, Gutenberg used a lead alloy that held fine detail and paired well with oil-based ink. A specially designed matrix allowed workers to mass-produce identical letter blocks quickly and consistently, handling everything from ligatures to punctuation. The type case used by compositors contained approximately 290 individual boxes, each holding a different character for use in setting lines of text.

You can appreciate how these elements worked together — printers applied ink using leather balls, rubbing them evenly across type before each impression. Without this precise material combination, the press simply wouldn't have functioned at scale. Before Gutenberg's oil-based solution, existing water-based inks caused significant smudging problems when used with movable type due to their slow absorption and soluble gum bases.

Much like the Mouseion of Alexandria, which brought together scholars and resources to advance knowledge, Gutenberg's press unified specialized materials and craftsmanship into a system designed to produce and distribute information at an unprecedented scale.

What the Gutenberg Press Printed First

With the right materials in place, the press was ready to work — and its earliest output wasn't a Bible. In 1454, Gutenberg printed indulgence leaflets and commercial pamphlets for the Church, producing thousands of copies to generate revenue. These practical documents offset financial losses and marked the first widespread use of movable type for commercial purposes.

You might be surprised to learn that the famous Gutenberg Bible didn't follow until 1455, a full year later. Completed in Mainz, Germany, it became the first complete book printed with movable type in the West. Known as the 42-line Bible, roughly 180 copies were produced.

Today, very few complete copies survive, making each one an extraordinary artifact of printing history. Perfect vellum copies are held in institutions such as the U.S. Library of Congress, the French Bibliothèque Nationale, and the British Library. The high production cost of each Bible was equivalent to roughly three times the annual salary of an average clerk, meaning primary ownership fell to institutions and Churches rather than individuals. Centuries later, the democratization of books would accelerate dramatically when Allen Lane founded Penguin Books in 1935, making quality literature affordable to the general public for the first time.

What Makes the Gutenberg Bible a Technical Masterpiece

The Gutenberg Bible didn't just revolutionize book production — it redefined what printed materials could achieve technically and aesthetically. You can appreciate its complexity when you consider that 290 master character pieces and roughly 16,000 individual type pieces were required just to complete the run. Six compositors worked simultaneously, setting six pages containing 15,600 characters at a time.

This level of mechanical precision meant every one of the 158–180 copies maintained consistent quality throughout over 1,200 pages. The typographic innovation extended beyond function — Gothic typeface gave pages a majestic medieval character, while intentionally large margins invited hand-painted illuminations. Blank spaces were deliberately left for decorative initials. The result wasn't simply a printed book; it was a masterwork combining standardized production with genuine artistic achievement. Major biographers concur that printing of the Forty-two-Line Bible was completed by 1455 at the latest, cementing its place as a landmark in the history of human communication.

Today, only 20 complete copies of the Gutenberg Bible survive intact in the world, making each remaining example an irreplaceable artifact of the pivotal moment when mechanical printing began to reshape how knowledge was recorded and shared.

How the Gutenberg Press Sparked the Printing Revolution

When Johannes Gutenberg invented movable type printing around 1440–1450 in Germany, he didn't just create a faster way to copy text — he rewired how civilization produced and consumed knowledge. His press could produce 3,600 pages per workday, compared to just 40 by hand. That efficiency collapse in production time triggered a literacy boom across Renaissance Europe, pulling education beyond elite circles and into broader society.

You can trace the ripple effects clearly: within decades, over 200 cities across Europe had adopted the technology, and roughly 1,000 presses were operating by 1500. These machines generated knowledge networks that standardized language, distributed scientific texts, and fueled intellectual exchange at an unprecedented scale — transforming printing from a craft into civilization's most powerful communication engine. The Gutenberg Bible itself stood as a landmark of this new era, spanning 1,282 pages and printed in 42-line columns.

The press also accelerated the rediscovery of long-lost classical works, enabling major publishing projects that brought the writings of Plato and Aristotle back into widespread circulation across Europe.
