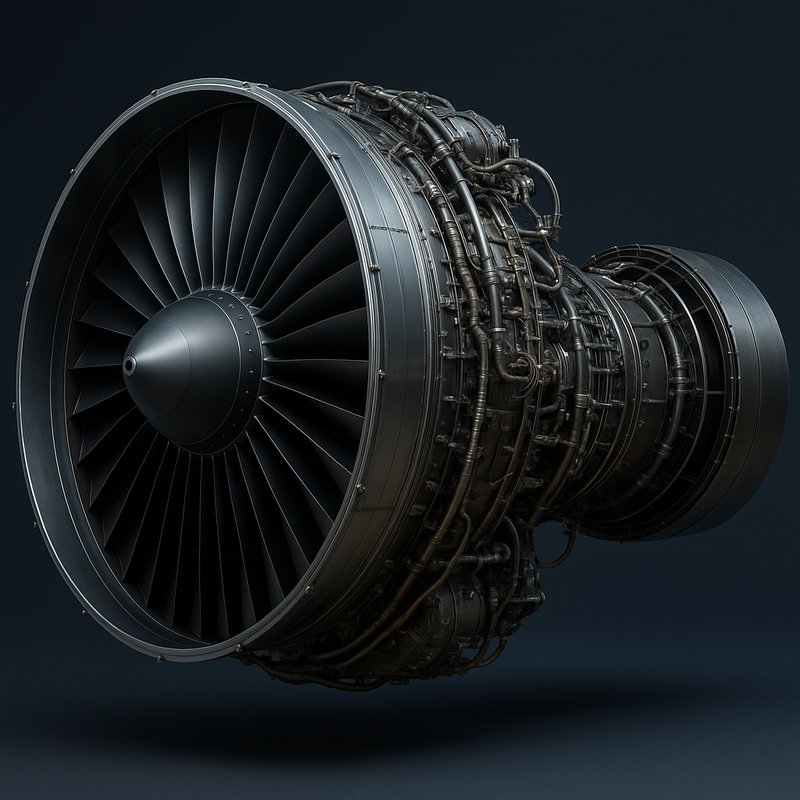

Jet Engine

You've probably flown in a plane dozens of times without giving much thought to what's actually keeping you airborne. The jet engine is one of humanity's most remarkable engineering achievements, yet most people understand almost nothing about how it works. Behind the roar and the thrust lies a fascinating story of rivalry, ingenuity, and extreme physics. What you're about to discover might permanently change how you look at air travel.

Key Takeaways

• Frank Whittle's original jet engine patent lapsed in 1935 because he couldn't afford the £5 renewal fee.
• Jet engines follow a four-step cycle nicknamed "suck, squeeze, bang, blow," formally known as the Brayton cycle.
• Turbine blades are grown from a single nickel crystal to prevent structural failure at extreme temperatures.
• The GE9X engine produced a record-breaking 134,300 pounds of thrust during testing.
• Combustion inside a jet engine reaches 2,000°C, yet engineering keeps surrounding metals below 1,300°C.

Who Really Invented the Jet Engine?

The question of who invented the jet engine doesn't have a single clean answer — several engineers across different countries were developing similar ideas around the same time. The patent controversy stems from multiple competing national claims. Frank Whittle filed his patent in 1930 and ground-tested his engine in 1937, giving him strong credentials as the inventor.

However, Germany's Hans von Ohain flew the Heinkel He 178 in August 1939 — two years before Whittle's engine took flight. Experts generally split the recognition: Whittle gets credit for invention based on his earlier patent and feasibility work, while von Ohain earns credit for achieving the first actual jet-powered flight. Both men developed their designs independently, making the debate genuinely complex rather than a simple oversight. Whittle first outlined his ideas on jet propulsion in a 1928 senior thesis written while studying at RAF College, Cranwell.

Despite his pioneering work, Whittle was unable to afford the £5 renewal fee for his original patent, and the Air Ministry refused to cover the cost, causing it to lapse in January 1935. Power Jets Ltd was subsequently formed in 1936 to continue development, backed by investment bank O.T. Falk & Partners following a favourable independent engineering review.

How Does a Jet Engine Actually Work?

At its core, a jet engine works by following a simple four-step cycle: suck, squeeze, bang, blow. Understanding airflow dynamics makes each step clearer:

1. Intake – A large fan sucks in air, ingesting up to 1.2 tons per second at takeoff.
2. Compression – Rotating blades progressively squeeze air, raising temperature and pressure for ignition.
3. Combustion – Fuel mixes with compressed air, burning at 2000°C. Thermal management keeps metal components below their 1300°C limit.
4. Exhaust – Hot gases expel rearward, combining with bypass air to generate thrust via Newton's third law.

A shaft connects the turbine to the compressor and fan, recycling extracted energy to sustain the continuous cycle, called the Brayton cycle. In turbofan engines, fan bypass air flows around the core, significantly reducing noise while improving overall fuel efficiency. The turbine itself rotates at thousands of rpm, converting the energy of high-temperature exhaust gases into the mechanical force needed to keep the compressor and fan spinning continuously.

What's Actually Inside a Jet Engine?

Cracking open a jet engine reveals five major sections working in sequence: the intake and fan, compressor, combustor, turbine, and nozzle.

The fan assembly, built with titanium blades, pulls in massive airflows and splits them into core and bypass streams.

Behind it, the compressor squeezes air through multiple blade stages, dramatically raising its pressure.

The combustor then mixes this compressed air with fuel through up to 20 nozzles, igniting it at temperatures reaching 2700°F.

Those hot gases spin the turbine blades, which are supported by ball-bearing turbine bearings and linked by shafts back to the compressor and fan. To withstand the extreme heat, turbine blades are manufactured from single nickel-based crystal to prevent creep at metal boundaries.

Finally, the nozzle expels the blended hot and cooler bypass air rearward, generating the forward thrust that keeps the aircraft airborne.

What Are the Different Types of Jet Engines?

Now that you know what's inside a jet engine, it's worth understanding that not all jet engines work the same way. Each type serves a specific purpose:

1. Turbojet – Rooted in turbojet history, it powered early aircraft like the Heinkel He 178 and remains ideal for supersonic jets.
2. Turbofan – Features a large front fan; high-bypass versions dominate commercial aviation for fuel efficiency and reduced noise.
3. Turboprop – Combines a propeller with jet exhaust, delivering superior efficiency for regional and cargo aircraft at lower speeds.
4. Ramjet – Has no moving parts, making it low-maintenance and perfect for ramjet missiles and experimental aircraft at Mach 2-4.

You'll also find turboshaft engines powering helicopters, converting exhaust energy directly into rotor-driving power. Unlike other engine types, turboshaft engines feature a free-power turbine that allows the engine and rotor to operate at independent speeds.

Ramjets require the vehicle to first be accelerated to near or supersonic speeds before the engine can ignite, making differential propulsion essential for getting them airborne.

How Powerful Are Jet Engines?

Jet engines pack a staggering amount of power into a surprisingly compact frame. Most commercial engines produce between 20,000 and 100,000 pounds of thrust, but record-breakers like the GE9X hit 134,300 lbf during testing. That thrust scaling over decades is remarkable—engines jumped from 5,000 lbf in the 1950s to over 115,000 lbf by the 1990s.

You can also measure that power in horsepower. Four engines on an Airbus A380 produce nearly 300,000 horsepower at takeoff. A Boeing 777 generates roughly 46 Megawatts during cruise. The GP7200, developed jointly by GE Aerospace and Pratt & Whitney, powers the A380 and is rated at 81,500 lbf thrust.

Modern engines don't just chase raw power, though. Advances in fuel efficiency mean the GE9X burns 10% less fuel than its predecessor, proving you don't have to sacrifice performance for economy. That power is generated by accelerating a large mass flow of air rearward, which by Newton's third law propels the aircraft forward.

How Long Does It Take to Build a Jet Engine?

Building a jet engine is no quick task—from the first turbine blade to final aerodynamic testing, the full assembly process takes around 20 days.

This manufacturing timeline involves precise sequencing across multiple teams:

1. Day 1: Turbine blade installation begins the assembly duration
2. Day 4: Kevlar-wrapped fan case assembly starts
3. Day 7: Fan blades are installed with precision requirements
4. Day 9: Eight separate modules complete assembly line integration

After modules are assembled, aerodynamic ducts are fitted before final testing occurs.

You'd also be surprised how component prep adds time—turbine blade casting through inspection alone takes four days.

Every stage demands strict quality control before the engine ships to aircraft manufacturers. The entire operation is supported by a workforce of 11,000 employees dedicated to producing these powerful machines.

Once the engine is delivered, it still takes time before the aircraft itself is ready—including painting and testing, the total production timeline for a commercial jet can stretch to around 9–12 months. Much like how jet engine manufacturing depends on long-term planning, Afghanistan's 1971 policy review highlighted the importance of systematic resource management in sustaining critical infrastructure for future generations.

Why Are Jet Engines So Expensive?

With a 20-day build time and teams of specialists working in precise sequences, it's no surprise that jet engines carry an extraordinary price tag. Material costs alone are staggering—specialized nickel-chromium superalloys run about $50,000 per ton, compared to carbon steel's $500 per ton. These materials must endure operating temperatures reaching 2,700°F, demanding precision machining that further drives expenses.

Development investments amplify costs even more. Pratt & Whitney spent roughly $10 billion developing its geared turbofan, while Rolls-Royce's RB211 development temporarily bankrupted the company. Certification timelines add another financial burden, requiring up to 10,000 engine flight cycles before an engine enters service. Unlike automotive manufacturing, low production volumes prevent the economies of scale that would otherwise reduce per-unit costs markedly. The largest commercial engines, such as those powering widebody airliners like the Boeing 777 and Airbus A380, can cost anywhere between $25 and $45 million per unit.

To put modern costs in perspective, the trajectory from early jets is striking—the first-generation Allison J-33 turbojet cost the equivalent of roughly $250,000 in today's money, whereas advanced military engines like the F-135-PW-600 now command prices exceeding $21 million per unit.

Why Jet Engines Replaced Propeller Aircraft So Quickly

The shift from propeller aircraft to jets happened with striking speed—and for good reason. Within decades after WWII, jets dominated commercial aviation through clear advantages you can't ignore:

1. Superior thrust — Jets generated far more forward force than rotating propellers ever could.
2. High altitude efficiency — Propellers lost effectiveness in thin air; jets thrived there.
3. Rapid commercialization — Airlines adopted jets quickly, prioritizing passenger speed on long-haul routes.
4. Turbofan innovation — Combining jet blast with front fan blades doubled efficiency gains overnight.

Early jets fundamentally scaled down rocket principles for aviation use. Loan planning tools that calculate total interest paid over a loan's lifetime follow a similarly structured logic, breaking complex outcomes into clear, computable steps.

Once turbofans solved remaining efficiency concerns, propeller-driven airliners became obsolete fast. The shift took roughly 60 years ago—remarkably swift for an entire industry. Notably, turboprops combined propellers with jet technology to serve aircraft prioritizing range and payload over outright speed. Propeller blades are shaped like twisted rotating wings, creating pressure differences across their surfaces to generate thrust rather than relying on internal pressure rise.

What Most People Get Wrong About Jet Engines

Jet engines replaced propellers so fast that myths about how they actually work couldn't keep up. Engineering misconceptions still cloud public understanding today, so let's set the record straight.

You might assume lightning strikes destroy engines, but aircraft are designed to conduct electricity safely through the fuselage, leaving engines unaffected. You might also believe engine failure means certain disaster, but multi-engine aircraft fly on backup power while pilots execute emergency procedures. Commercial aviation records one fatality per 3.37 billion flights.

Myth debunking also extends to jet engine history. Contrary to popular belief, high-temperature alloy limitations didn't materially delay development. Engineers found alternative solutions rather than waiting on metallurgy to catch up. Understanding these facts helps you appreciate how sophisticated and resilient modern jet engine design truly is.

Piston-driven aircraft engines carry their own set of persistent myths, and one widely misunderstood area involves turbocharged engine efficiency, which when operated at altitude can actually deliver faster cruise speeds at equal or lower fuel consumption than normally aspirated alternatives. Another common misconception is that high RPM causes wear severe enough to meaningfully shorten engine life, when in reality it is considered at least a third-order effect compared to other operational factors.

Wartime aviation medicine saw parallel leaps in institutional capability, as military healthcare advanced rapidly through coordinated expansions in field hospital capacity, specialized treatment units, and nursing personnel that together transformed how frontline casualties were managed.

What Does Jet Engine Maintenance Actually Involve?

Keeping a jet engine airworthy demands far more than occasional tune-ups. You'll find maintenance spans multiple layers, from daily checks to full overhauls every 3,000–5,000 flight hours.

Here's what the process actually covers:

1. Pre flight inspections — Crews check lubricant levels and visually assess engine condition before every departure.
2. Core washing — Pressurized hot water cleans internal components 2–4 times yearly, reducing corrosion buildup.
3. Disassembly and inspection — Technicians break engines into nearly 40,000 parts, testing each using ultrasonic, eddy current, and fluorescent penetrant methods.
4. Reassembly and testing — Engines undergo extreme bench testing before a certified inspector issues a Certificate of Airworthiness.

Full overhauls typically take 60–90 days to complete. Balancing rotating stages during reassembly lowers vibration, which directly improves comfort, durability, and fuel efficiency. Each engine carries a unique six-digit serial number, giving it a dedicated maintenance history that tracks every overhaul, repair, and flight cycle throughout its operational life.
