Lightning Rod

You probably think a lightning rod simply blocks lightning from striking a building. It doesn't. Instead, it quietly controls where and how lightning hits, channeling enormous energy safely into the ground. There's genuine science behind why a slightly blunt tip often works better than a sharp one, and why modern skyscrapers depend on principles Franklin couldn't have fully understood. What follows might change how you see a simple metal rod.

Key Takeaways

• Benjamin Franklin invented the lightning rod in 1752, with practical installations appearing on U.S. buildings just one year later.
• Lightning rods don't prevent strikes; they control strike location and redirect electrical energy safely into the earth.
• The Maryland State House dome's Franklin rod operated successfully for over two hundred years, recording one strike on July 1, 2016.
• Blunt-tipped rods outperform sharp ones; a seven-year New Mexico field study recorded 12 strikes on blunt rods and zero on sharp rods.
• William Snow Harris extended lightning rod protection to wooden sailing vessels in 1820, adapting Franklin's land-based design for maritime use.

What a Lightning Rod Actually Does (and Doesn't Do)

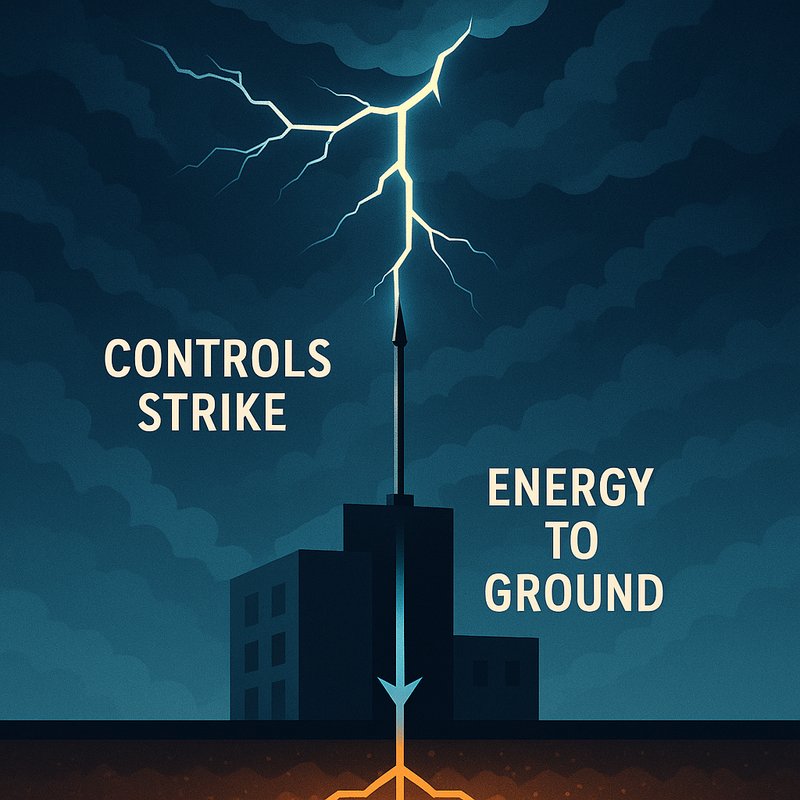

When lightning strikes, a lightning rod doesn't block it — it controls where it goes. You might believe common strike myths, like rods preventing lightning from hitting your building entirely. They don't. Instead, the rod intercepts the strike and redirects energy through a low-impedance path, achieving safe ground diversion below 10 Ω.

Here's how it works: the rod's tip concentrates the electric field, ionizing surrounding air and generating an upward tracer. That tracer meets the descending lightning leader, creating a controlled discharge channel straight to earth.

Without proper bonding and grounding, the system fails completely. It won't protect against indirect surges or side flashes either. Think of it as damage management — not strike prevention. Installation and routine maintenance remain absolutely essential for effective protection. Lightning rods are part of a broader Lightning Protection System that also includes down conductors, grounding systems, and surge arrestors.

Common rod materials include conductive metals, with copper and its alloys being the most widely used due to their excellent conductivity and durability. Rods themselves come in a variety of forms, including hollow, solid, pointed, rounded, flat strips, and even bristle brush-like designs.

How the Lightning Rod Was Invented

Understanding how lightning rods work is one thing — knowing where they came from is another. Franklin's motivation stemmed from observing electricity's striking similarities to lightning — identical light color, crooked paths, and crackling noise. By 1749, he'd described an electrical battery concept, and by 1750, he'd noticed sharp iron needles could conduct electricity from charged metal spheres.

The kite controversy surrounds his famous June 15, 1752 experiment, where he tied a metal key to a silk kite string during a storm, with his 21-year-old son William watching. Electricity traveled down the string to the key, confirming lightning as electrical fire. Franklin published his lightning rod design that same year, proposing an 8-10 foot sharpened iron rod buried in moist ground. Practical installations began appearing on buildings across the United States as early as 1753, with the early goal of attracting lightning to safe metal points to prevent devastating fires and loss of life.

Franklin's original design proposed placing a pointed iron rod at a building's peak with a wire running down to a rod buried in the earth, with the intent to draw electrical fire out of a cloud silently and prevent dangerous strikes altogether. Much like the Silk Road cities that once served as critical hubs connecting distant civilizations, Franklin's lightning rod quickly spread across continents as a shared innovation that advanced safety and scientific understanding worldwide.

Why Blunt Lightning Rods Outperform Sharp Tips

Although Franklin's sharp-tipped rod revolutionized lightning protection, modern research shows his design actually reduces effectiveness. Studies confirm that blunt tip efficacy far surpasses sharp alternatives, largely due to a critical field concentration advantage. Blunt rods generate electric fields up to twice as strong over greater distances, dramatically increasing their ability to attract strikes.

A seven-year New Mexico field study at 12,000 feet recorded 12 lightning strikes on blunt rods with tip diameters between 12.7 mm and 25.4 mm. Sharp rods attracted zero strikes during the same period. Lab tests reinforced these findings, with blunt rods capturing nearly 48% of controlled strikes. Even early streamer emitters couldn't compete. You're simply getting superior, more reliable protection when you choose moderately blunt Franklin rods over sharper designs.

The research was led by Charles B. Moore, a now-retired professor from New Mexico Institute of Mining and Technology, whose team conducted field experiments they considered far more valuable than relying on computer simulations alone. His findings were published in the Journal of the Franklin Institute, lending considerable academic credibility to the case for blunt air terminals over the sharp-tipped rods Franklin himself originally advocated.

From Franklin's Iron Rod to Modern Discharge Devices

Benjamin Franklin's iconic iron rod—8 to 10 feet long, sharpened to a fine point and buried 3 to 4 feet into moist ground—laid the groundwork for every lightning protection system that followed. From that simple design, you can trace a clear line of material evolution, moving from basic iron rods and brass wire to advanced engineered systems.

By the 19th century, urban integration had made lightning protection standard across buildings and ships alike. William Snow Harris's 1820 maritime system expanded protection to wooden sailing vessels, while companies like Lightning Eliminators now develop cutting-edge discharge technologies.

What started as Franklin's curiosity-driven kite experiment has transformed into a science-driven industry, actively safeguarding lives, structures, and assets against one of nature's most destructive forces. Lightning Eliminators & Consultants, Inc. developed and patented the Charge Transfer System, a proactive technology designed to prevent lightning formation by reducing the surrounding electric field rather than simply attracting strikes. Just as macro-X-ray fluorescence scanning has revealed hidden layers beneath famous paintings, modern diagnostic technologies continue to uncover new dimensions of understanding across scientific fields.

The Maryland State House dome bears one of the most enduring testaments to Franklin's design, hosting the largest Franklin rod installed during his lifetime and operating for over two hundred years with only one recorded lightning strike on July 1, 2016.

Why Skyscrapers and Towers Rely on Lightning Rod Principles

As cities grow taller, skyscrapers and towers become prime lightning targets—their height and metallic frameworks create the shortest available path to ground. Urban vulnerability intensifies as dense populations face amplified consequences from unprotected strikes.

Lightning rod principles address this directly. Air terminals mounted at peak points intercept strikes before they reach vulnerable surfaces, launching upward leaders early and concentrating the electric field at their tips. Down conductors then channel hundreds of thousands of amps along controlled exterior paths, keeping dangerous current out of the building's interior. Grounding systems complete the process, dissipating immense energy safely into the earth.

Without these protections, you're looking at flash fires, shattered concrete, destroyed electronics, and compromised structural resilience. Tall structures don't just attract lightning—they demand a disciplined response to it. A Lightning Risk Analysis must precede any protection design, evaluating the site's exposure, building characteristics, and the sensitivity of critical equipment to define the appropriate protection level.

Beyond physical hardware, modern protection strategies increasingly incorporate IoT real-time monitoring to continuously track resistance levels, surge events, and partial discharge activity, enabling proactive alerts before a failure occurs. Just as public land designation has preserved Oregon's 363-mile coastline by establishing clear boundaries between protected and accessible zones, lightning protection systems define clear pathways that preserve structural integrity by directing destructive energy along controlled routes.
