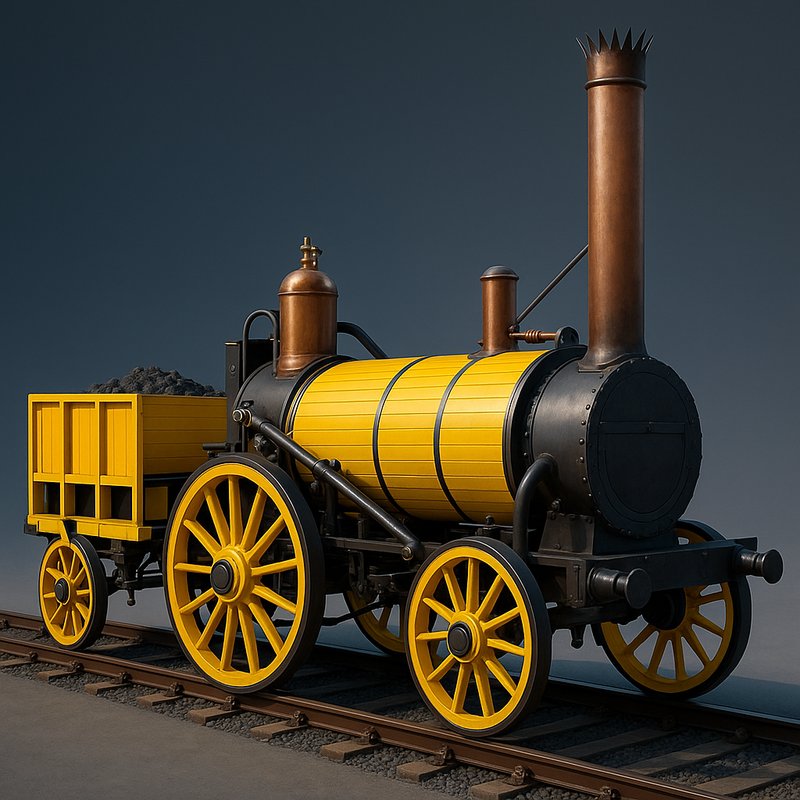

Steam Locomotive (Rocket)

You've probably heard that the Rocket changed history, but you may not know exactly why. This locomotive didn't just win a famous competition — it rewrote the rules of engineering. From its clever boiler design to its surprising speed, every detail tells a story worth knowing. Stick around, because what you're about to discover might change how you think about the machine that launched the modern world.

Key Takeaways

• The Rocket was designed by Robert Stephenson specifically for the 1829 Rainhill Trials, built at Forth Street Works in Newcastle upon Tyne.
• Its multi-tube boiler used 25 copper fire-tubes, making it nearly three times more fuel-efficient than its closest rival, Sans Pareil.
• During trials, the Rocket achieved approximately 30 mph, completing all required runs without a single mechanical failure.
• Henry Booth suggested the narrow-bore fire tubes that became central to the Rocket's revolutionary and highly efficient boiler design.
• The Rocket's blueprint — multi-tubular boiler, separate firebox, and direct cylinders — influenced locomotive design for over 130 years worldwide.

Where the Rocket Came From

The Rocket didn't emerge from thin air — it was born out of necessity. After the Stockton & Darlington Railway's success in 1825, Liverpool and Manchester needed a reliable locomotive for their new 40-mile inter-city line. Directors held the Rainhill Trials in October 1829, offering a cash prize for the best engine.

The Stephenson family drew on deep industrial heritage to answer that challenge. Robert Stephenson designed the Rocket, building on lessons from earlier locomotives — the Blücher (1814), Locomotion (1825), and Lancashire Witch (1828). Even Richard Trevithick's 1804 high-pressure boiler shaped its development.

The Rocket wasn't a reinvention — it was a smart refinement. It combined a multi-tube boiler and blast-pipe exhaust into one capable, competition-ready machine. Henry Booth, the treasurer of the Liverpool & Manchester Railway, played a crucial role by suggesting the use of many narrow-bore fire tubes in the boiler, replacing the single large flue used in earlier designs.

During the trials, the Rocket faced stiff competition, including a rival locomotive entry submitted by John Ericsson, who would later become famous for designing the Civil War ironclad Monitor. Ultimately, the Rocket triumphed over all three rivals, securing its place as the locomotive chosen to serve the new Liverpool–Manchester line.

How the Stephensons Built the Rocket at Forth Street Works

Nestled on Forth Banks in Newcastle upon Tyne, Forth Street Works opened in 1823 as the world's first purpose-built locomotive works — co-founded by George Stephenson, Robert Stephenson, Edward Pease, and Michael Longridge.

Spanning eight acres, the facility's original machinery reflected true Stephenson craftsmanship, designed by George himself.

When construction of the Rocket began in 1829, George was overseeing the Liverpool and Manchester Railway, so Robert took charge. He combined breakthrough workshop techniques, integrating a multi-tube boiler and blast-pipe exhaust into a single 0-2-2 locomotive.

The team prioritized quality over quantity, assembling carefully in small batches. The result wasn't just a Rainhill Trials competitor — it became the template for future locomotive design, proving what deliberate, skilled construction at Forth Street could achieve. Today, the historic works building holds a Grade II listed designation on the National Heritage List for England, recognising its outstanding contribution to industrial heritage.

Following its victory at the Rainhill Trials, the Rocket directly influenced the Liverpool and Manchester Railway to adopt steam locomotives as its primary mode of traction, marking a turning point in railway history. Much like the Miracle on the Han River transformed South Korea into a global industrial powerhouse, the Rocket's success at Rainhill signalled the beginning of a rapid technological revolution that would reshape transportation across the world.

What Made the Rocket's Design Revolutionary?

Built at Forth Street Works under Robert Stephenson's careful direction, the Rocket wasn't just a competition entry — it was a collection of engineering breakthroughs that reshaped how locomotives would be designed for decades.

Three innovations defined its revolutionary character:

1. 25 copper tubes replaced single-pipe boilers, demonstrating how material science could dramatically expand heating surface area and accelerate steam production.
2. A blast pipe exhaust system created self-regulating combustion, automatically stoking fires without manual adjustment.
3. Near-horizontal cylinders delivered steam pressure directly to the driving wheels, maximizing power transmission.

You can imagine how these combined advances shifted public perception — watching the Rocket reach 30 mph while hauling passengers proved steam locomotion wasn't experimental curiosity. It was the future. The locomotive weighed just 4.3 tonnes, a deliberate engineering choice that allowed it to achieve the performance that stunned crowds and competitors alike at the Rainhill Trials. The trials themselves were organised by the Liverpool and Manchester Railway as a performance contest to determine whether steam locomotion could reliably power public rail services. Much like the Strait of Gibraltar serves as the sole natural connection between the Atlantic Ocean and the Mediterranean Sea, the Rocket served as the singular bridge between experimental steam technology and its widespread commercial adoption.

How the Rocket's Multi-Tubular Boiler Outperformed Every Rival

At the heart of the Rocket's dominance sat its multi-tubular boiler — 25 copper fire-tubes, each 3 inches in diameter, threading through the boiler barrel from firebox to chimney.

You'd see immediately why this mattered: those tubes dramatically expanded the heating surface, letting hot gases transfer far more energy to the surrounding water than any single-flue rival could manage.

Smart boiler metallurgy drove this advantage — copper's superior conductivity in both tubes and firebox pulled maximum heat from combustion gases.

The separate firebox added radiant heat on top of convective transfer through the tubes.

Regular tube maintenance kept performance consistent across the Rocket's 70-mile runs, where it averaged 12.2 mph under load and hit 28 mph at peak. The locomotive was designed by Robert Stephenson, who prioritized building a lighter, faster, and smaller engine to outclass the competition from the ground up.

Competitors simply couldn't match that output. The multi-tube boiler concept was actually suggested by Henry Booth, a key collaborator who proposed the innovation that Stephenson then combined with an exhaust steam blast jet to produce the Rocket's defining technical advantage. Much like Leonardo da Vinci's engineering designs in notebooks, Stephenson's technical drawings captured ideas that pushed well beyond the conventional thinking of their era.

How the Rocket Won the Rainhill Trials

The Rainhill Trials of October 1829 pitted ten competing locomotives against a grueling test: haul a loaded train up and down a one-mile track section twenty times, covering a distance roughly equal to the full Liverpool-to-Manchester route.

Rocket's engineering tactics and trial strategy delivered results rivals couldn't match:

1. Speed: Rocket averaged 12 mph hauling 13 tons, hitting 30 mph under full load
2. Endurance: Rocket completed every required run without mechanical failure
3. Reliability: Sans Pareil collapsed mid-trial; Novelty never finished

You're looking at a locomotive that won decisively through consistency, not luck.

Rocket's £500 prize and subsequent contract to build seven similar engines confirmed what the trials proved—steam locomotion wasn't experimental anymore. It was the future. The multi-tubular boiler, suggested by Henry Booth, was a key innovation that improved steam production and contributed directly to Rocket's superior performance over its rivals.

The competition drew enormous public interest, with 10,000 to 15,000 spectators gathering at the trial site near Rainhill village, accompanied by bands providing musical entertainment throughout the event.

Top Speeds the Rocket Reached During Testing

During the Rainhill Trials of October 1829, Rocket hit approximately 30 mph under full load—blowing past the required 10 mph average by over 40 percent. Running light, it matched that same 30 mph mark.

Over a 35-mile test run, Rocket averaged 11 mph, completing the distance in 3 hours and 10 minutes. Ten return trips pushed that average to 12.2 mph, with projections suggesting 15 mph was achievable on continuous runs.

Incline performance proved equally impressive. On a 1-in-96 gradient, Rocket averaged 16 mph and maintained 13 mph while hauling a 13-ton load.

Fuel consumption across the full 70-mile combined run totaled 1,085 pounds of coal—efficient enough to sustain high speeds throughout multi-hour testing sessions without compromising performance. Prior to the trials, Rocket was tested on the Killingworth wagonway, where adjustments were made at the Stephenson factory before it was shipped to Liverpool.

Why the Rocket Beat Every Rival at Rainhill

Rocket's raw speed numbers tell only part of the story—what actually won the Rainhill Trials was a combination of reliability, smart engineering, and trial conditions that exposed every rival's weaknesses. While rivals broke down mid-run, Rocket's crew training and weather strategy kept it running consistently across every required pass.

Three design advantages sealed the victory:

1. The multi-tube boiler generated fierce, sustained heat that rivals couldn't match.
2. The blastpipe self-regulated exhaust, reducing mechanical stress during long hauls.
3. The separate firebox gave the crew precise combustion control under pressure.

Novelty completed only 10 of 20 runs. Sans Pareil managed 11. Rocket finished every single run. You're not watching a speed contest—you're watching one machine outlast everything else on the track. Sans Pareil's return-flue boiler proved devastatingly inefficient, requiring 28.8 lb of coke to convert just one cubic foot of water into steam compared to Rocket's 11.7 lb.

Rocket was designed by Robert Stephenson and built specifically for the 1829 Rainhill Trials, giving it a purpose-built edge that repurposed or hastily adapted competitors simply could not overcome.

How the Rocket Made Passenger Rail Possible

Winning Rainhill wasn't just a technical milestone—it handed railway directors the proof they needed to green-light the world's first inter-urban passenger line between Liverpool and Manchester. Before the Rocket, locomotives only hauled slow freight. You'd never trust them with passengers. The Rocket changed that by hitting 30 mph and averaging 12 mph reliably throughout the trials—speeds that made urban commuting genuinely conceivable.

Directors immediately ordered four additional locomotives from the Stephensons, confirming passenger service would launch in 1830. Structured ticketing systems followed naturally, since the railway now had a dependable engine capable of scheduled runs. The Rocket's multi-tubular boiler, separate firebox, and direct cylinder-to-wheel connection became the blueprint other builders copied for 130 years, ultimately catalyzing passenger rail networks across the entire world. Notably, the Rocket was designed by Robert Stephenson, whose victory at the trials proved that locomotives were superior to stationary winding engines for pulling trains.

Why Every Steam Locomotive After the Rocket Copied Its Design

Three innovations made the Rocket virtually impossible to ignore: its multi-tubular boiler, separate firebox, and blast-pipe exhaust system.

Picture these breakthroughs transforming every locomotive that followed:

1. 25 copper fire-tubes replaced single-pipe boilers, multiplying heat transfer and redefining steam aesthetics through visible engineering efficiency
2. Self-regulating blast-pipe exhaust automatically adjusted airflow, pulling combustion gases through the firebox without manual intervention
3. Direct cylinder-to-wheel connection eliminated mechanical complexity, giving manufacturers a clean blueprint worth copying for 130 years

The cultural impact was immediate and lasting.

Nearly every steam locomotive built afterward borrowed Rocket's fundamental architecture.

Its first replica appeared in 1881, constructed by Francis William Webb at Crewe — proof that engineers kept returning to Stephenson's integrated design as the definitive standard for steam locomotion worldwide.

Where the Rocket Steam Locomotive Is Preserved Today

Today, the original Rocket lives at the National Railway Museum in York, where it's been permanently housed since September 2019. However, if you visit Locomotion Museum in Shildon, you'll find it there temporarily while York undergoes Vision 2025 renovations.

Shildon offers remarkable heritage interpretation you won't find elsewhere—it's the first place displaying the Rocket alongside Timothy Hackworth's Sans Pareil and Locomotion No. 1, uniting three iconic early steam locomotives under one roof.

For visitor accessibility across different locations, replicas at Michigan's Henry Ford Museum and Chicago's Museum of Science and Industry let you experience the Rocket's design worldwide. Meanwhile, Manchester's Museum of Science and Industry previously displayed the original near the historic Liverpool-Manchester Railway terminus, connecting you directly to where the locomotive actually operated. The Science Museum in London also holds photographs and drawings of the preserved Rocket, offering an additional way to explore the iconic locomotive's history.

Before reaching any museum, the Rocket served on the Liverpool and Manchester Railway until 1836, when it was sold for £300 to James Thompson for use at Naworth collieries. The Patent Museum in London first acquired the locomotive in 1862, which later became the Science Museum, marking the beginning of its long journey through various institutions before finding its permanent home in York.
