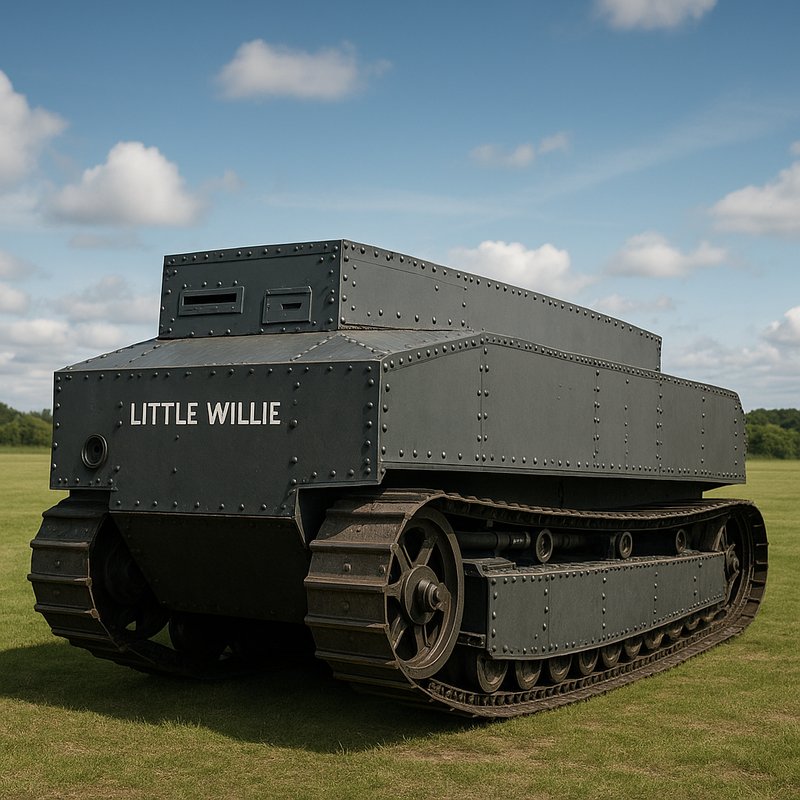

Tank (Little Willie)

You might think you know tanks, but Little Willie tells a story that predates them all. Built in 1915, this 16-ton prototype changed warfare forever — yet it nearly vanished from history entirely. It failed its trials, never fired a shot, and almost got scrapped. So how did such an imperfect machine reshape modern combat? The answers are stranger and more fascinating than you'd expect.

Key Takeaways

• Little Willie was built in 1915 by agricultural firm William Foster & Co., making it the world's oldest preserved tank prototype.
• The vehicle weighed 16 tons, stretched 26 ft 6 in long, and was powered by a rear-mounted 105 bhp Daimler-Knight engine.
• Little Willie could only reach 2–3.5 mph and failed to cross trenches wider than 1.2 meters, below military requirements.
• Its planned armament, including a 2-pounder gun and Madsen machine guns, was never installed during trials.
• Saved from scrapping in 1940, Little Willie remains on public display at The Tank Museum in Bovington, England.

How Little Willie Came to Life in 1915?

During World War I, the battlefield had reached a brutal standstill — trenches stretched across the landscape, and neither side could advance without suffering catastrophic losses to enemy machine gun fire. You can trace Little Willie's origins to British military leaders who recognized they needed an armored vehicle capable of crossing rough terrain while shielding soldiers from gunfire.

Early collaboration between engineers and military planners drove the project forward, combining armor plating with mechanical mobility and firepower. Prototype logistics demanded careful coordination, as the team had to translate theoretical designs into physical construction. Ernest Swinton and William Hankey were among the key figures who championed the idea of an armored vehicle with conveyor-belt-like tracks to break through enemy lines.

That same year of 1915 also witnessed a remarkable human story, when Essie Dunbar of South Carolina survived a premature burial after being incorrectly pronounced dead following an epileptic seizure. Meanwhile, on the other side of the world, Australia was developing its own military innovations, as Australian light horse regiments were gaining prominence through their emphasis on mobility and endurance in the field.

What Engineering Specs Made Little Willie Unique?

Little Willie's engineering reflected both ambition and constraint — you're looking at a machine that measured 26 feet 6 inches long, 8 feet 3 inches tall, and 9 feet 5 inches wide, with a total weight of 16 tons.

Its engine placement positioned the 105 bhp Daimler-Knight 6-cylinder unit at the rear, fed by gravity-flow petrol tanks adapted from Foster-Daimler artillery tractor components. This configuration pushed maximum speed to just 2–3.5 mph.

The armor evolution moved from basic boiler plate in early builds to 10–15 mm hardened plating in the final model.

Tracks used hardwood links covered with metal sheeting, riveted to cast steel guides. The 20½-inch track width proved insufficient for the vehicle's weight, exposing critical structural limitations that engineers had to address in future designs. The new pressed steel plate track system devised by Tritton on 22 September 1915 became the foundation for British WWI tanks up to and including the Mark VIII.

The original track assemblies were purchased from the Bullock Tractor Co., but were ultimately found to be too small to support the vehicle's considerable weight. The crew of five operated within a boxlike compartment constructed of riveted steel plates fitted above the track assemblies.

What Weapons Was Little Willie Designed to Carry?

While Little Willie's engineering shaped how the vehicle moved and protected its crew, the weapons it was meant to carry defined its battlefield purpose.

You'll find that designers originally planned a 2 pounder turret mounting a Vickers gun as the primary armament, storing 800 rounds for battlefield use against trenches, barbed wire, and infantry. Alongside it, specifications included Madsen mounts supporting up to six Madsen machine guns, supplemented by Hotchkiss, Lewis, or Maxim alternatives.

However, the prototype never actually received its main gun during trials. The revolving turret was first fitted with a non-rotatable dummy version, then abandoned entirely, with designers plating over the aperture.

Little Willie ultimately prioritized mobility testing over weapon installation, leaving its intended armament unrealized before development shifted toward the rhomboid Mother prototype. The improved Mark I design that followed was fitted with sponsons for naval 6-pound guns, representing a significant departure from Little Willie's original weapon concepts.

Little Willie was constructed at the Wellington Foundry, New Boultham, Lincoln under contract with William Ashbee Tritton, who was engaged beginning 22 July 1915 to develop what would become the world's first completed tank prototype.

Why Little Willie Failed Its Trench-Crossing Trials?

When Little Willie faced its December 1915 trials, its track design condemned it from the start. The 12-foot track frames were simply too short, and track sagging over trenches caused jams against the wheels. You'd see the vehicle struggle to cross anything wider than 1.2 meters, well below the required 2.4-meter specification.

Steering inadequacy made things worse. Braking-based steering couldn't handle the maneuvers the War Office demanded, and the rear steerable wheels offered no real help during trench crossing. The flat track profile created excessive ground resistance during turns, while the high center of gravity destabilized the vehicle on obstacles. The name "Little Willie" itself reflects a certain humility and faith in the iterative process of wartime engineering, where failure was accepted as a necessary step toward better design.

Without springing or damping, every ground shock transferred directly through the rollers. These combined failures prompted engineers to abandon the design entirely and develop the rhomboidal "Mother" prototype. The revised design passed tracks over the superstructure and added two side sponsons, allowing the mounting of a 6-pdr gun capable of delivering high-explosive shells.

Around the same time, Winston Churchill was already envisioning solutions to trench warfare from a different angle, later conceiving a massive trench-digging machine that would come to be known as Cultivator No. 6, designed to cut through No Man's Land and breach fortified enemy lines entirely.

How Did Little Willie Lead to the Mark I Tank?

Despite its failures, Little Willie's development directly shaped the path to the Mark I tank. Its shortcomings pushed Wilson and Tritton toward a revolutionary rhomboid evolution in track design, creating "Mother," the prototype that solved Little Willie's core problems.

Here's how that design lineage unfolded:

1. Rhomboid tracks replaced the top-heavy box configuration, wrapping fully around the superstructure for superior trench crossing.
2. Sponson-mounted 6-pounder guns replaced the ineffective dummy turret, boosting firepower markedly.
3. Mother became the Mark I, with 100 units ordered in February 1916, debuting at the Somme on September 15, 1916.

You can trace every WWI British tank up to the Mark VIII directly back to the Wilson-Tritton track system born from Little Willie's failures. Little Willie itself weighed 16 tons and could only manage a top speed of 3.5 mph, making its limitations a powerful catalyst for the engineering breakthroughs that followed.

Where Little Willie Lives Today?

At The Tank Museum in Bovington, England, you'll find Little Willie resting in The Tank Story section as the world's oldest preserved tank prototype. It sits at coordinates near 50° 41′ 37.6″ N, featured as part of the museum rotation that keeps this historic machine accessible to the public.

Preservation challenges are evident up close. You'll notice visible damage to the metal plating near the front driver vision slots, caused by a cable pull attempt. Its engine and most internal fittings are also missing. Despite these issues, Little Willie's overall condition remains remarkable for a vehicle assembled over a century ago.

Weighing 16 tons with 10 mm armour, this single surviving prototype has been on public display for more than 100 years. The vehicle was originally built by William Foster & Co., an agricultural firm based in Lincoln that was contracted to construct the groundbreaking prototype. Little Willie was also saved from scrap threats in 1940, ensuring this groundbreaking prototype survived to be appreciated by future generations.
