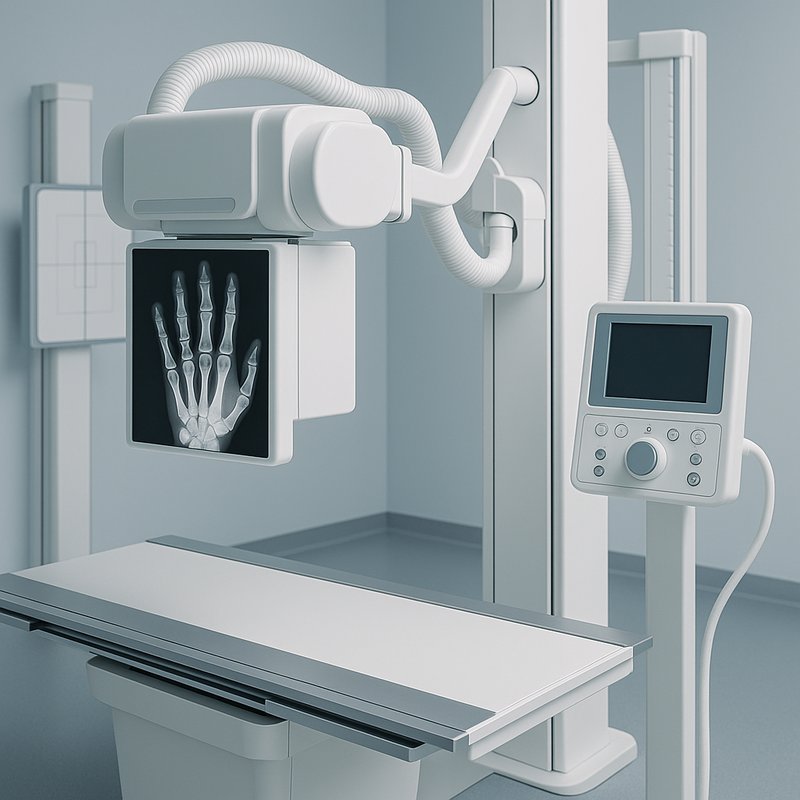

X-Ray Machine

You've probably walked into a clinic, had an X-ray taken, and walked out without giving it a second thought. But the technology behind that quick scan has a surprisingly strange and dramatic history. From a completely accidental laboratory discovery to machines that can map your body in three dimensions, X-ray technology has transformed in ways most people never consider. What you'll find here might change how you see that ordinary moment entirely.

Key Takeaways

• Wilhelm Röntgen accidentally discovered X-rays in 1895 when a fluorescent screen two meters away glowed from a shielded cathode ray tube.
• The first X-ray image captured Anna Röntgen's hand, revealing her bones and wedding ring, prompting her to exclaim, "I have seen my death!"
• Röntgen's groundbreaking discovery earned him the very first Nobel Prize in Physics in 1901.
• X-ray tubes are remarkably inefficient — approximately 99% of electron energy converts to heat, with only 1% producing useful X-ray photons.
• Philips' 1951 image intensifier revolutionized X-ray imaging by increasing image clarity roughly 400 times compared to earlier technology.

The Accidental Discovery That Made X-Ray Machines Possible

On November 8, 1895, German physicist Wilhelm Röntgen accidentally discovered X-rays while experimenting with cathode ray tubes in his darkened laboratory. This serendipitous observation began when he noticed a barium platinocyanide fluorescent screen glowing two meters away from his shielded glass cathode tube. The rays had penetrated the heavy black cardboard covering the tube — something no known light could do.

This vacuum accident revealed something extraordinary: invisible rays that could pass through soft tissue while exposing bones and metal objects. Röntgen captured the first X-ray image of his wife Anna's hand, clearly showing her bones and wedding ring on a photographic plate. Upon seeing the image, Anna exclaimed "I have seen my death!" in shock at the sight of her own skeletal hand. You can trace every modern X-ray machine directly back to that single, unplanned moment in Röntgen's laboratory.

Röntgen's groundbreaking work earned him the first Nobel Prize in Physics in 1901, recognizing the immense scientific and medical significance of his accidental discovery.

How X-Ray Technology Evolved From 1895 to Today

The accidental spark of 1895 quickly ignited a technological revolution that would transform medicine and industry alike.

Within decades, you'd see X-ray technology advance from basic bone imaging to sophisticated industrial inspection tools.

Coolidge's 1913 high vacuum tubes delivered reliable power up to 100,000 volts, while engineers pushed that ceiling to 1,000,000 volts by 1931.

Philips' 1951 image intensifier sharpened clarity 400 times, revolutionizing diagnostic accuracy.

The 1955 C-arm introduced directional flexibility, and Hounsfield's late-1960s CT scanning added three-dimensional analysis.

Radiation safety improved alongside each breakthrough, protecting both patients and operators. Man-made gamma sources like cobalt and iridium became available in 1946, proving stronger and less expensive than radium and rapidly replacing it in industrial applications.

By 1998, 180-degree C-arm projections enabled full 3D imaging, while portable units made X-ray technology accessible beyond traditional clinical settings.

Each advancement built upon the last, creating the powerful diagnostic systems you rely on today. CT scans emerged in the 1970s, combining multiple X-rays into detailed three-dimensional views that vastly improved visualization of soft tissues, blood vessels, and organs.

How X-Ray Machines Actually Work

At the heart of every X-ray machine sits a sealed vacuum tube containing two critical components: a cathode and a tungsten anode.

When you apply current, the filament heats up, releasing electrons through thermionic emission — that's your electron dynamics in action.

A high-voltage generator then accelerates these electrons toward the rotating anode at near-relativistic speeds.

Upon impact, 99% of their energy converts to heat, while the remaining 1% triggers photon generation through two processes: bremsstrahlung radiation, where electrons decelerate near tungsten nuclei, and characteristic radiation from electron shell vacancies.

These X-ray photons exit through the tube's window and pass through your body.

Dense materials like bones absorb photons, creating white areas, while softer tissues allow photons through, producing darker grayscale images on the detector. The control console allows operators to adjust tube amperage, voltage, and exposure time to optimize image quality for different diagnostic needs.

Because the anode absorbs so much energy as heat, many X-ray systems rely on water or oil recirculating cooling systems to prevent damage and maintain consistent performance.

What X-Ray Machines Can Detect and Diagnose

Understanding how X-ray machines generate photons sets the stage for appreciating what those photons can actually reveal. X-ray machines detect a wide range of conditions across multiple body systems, giving doctors precise diagnostic information.

For skeletal issues, they identify bone fractures, dislocations, infections, arthritis, and even bone cancer. They also assess bone density to diagnose osteoporosis. In dental imaging, they expose dental cavities, gum disease, and jawbone abnormalities through panoramic scans.

Chest X-rays detect pneumonia, tuberculosis, heart problems, and fluid buildup. CT scans go further, revealing tumors in the abdomen, lungs, and head. Mammography screens for breast cancer, with 3D imaging improving early detection.

For digestive issues, fluoroscopy images the gastrointestinal tract in real time, while abdominal scans detect bowel obstructions and kidney stones. Because different tissues absorb radiation at varying rates, these scans produce contrasting images that help doctors clearly distinguish between healthy and abnormal structures.

Angiography uses a contrast agent alongside X-rays to identify blockages or narrowing in arteries near the heart, brain, abdomen, and legs, while also detecting aneurysms and peripheral artery disease. After a procedure, plain radiography helps verify the correct positioning of surgical wires, leads, and tubes, ensuring post-operative accuracy and patient safety.

The advancement of medical imaging technology parallels other landmark innovations of the modern era, much like the Syncom 3 satellite that first transmitted live television signals across the Pacific during the 1964 Tokyo Olympics, demonstrating how technological breakthroughs can reshape the way critical information reaches people in real time.

How Modern X-Ray Machines Have Advanced Since the 1990s

Since the 1990s, X-ray technology has transformed dramatically, shifting from analog film to digital systems that've reshaped how doctors capture and interpret images. Digital detectors replaced traditional film, enabling faster image acquisition and markedly improving overall image quality. Flat-panel detectors, pioneered through photolithography, integrated energy conversion layers with TFT arrays, achieving dose reduction while delivering real-time imaging for procedures like angiography and mammography.

Helical CT scanning advanced further, introducing continuous spiral scanning that let you image entire organs simultaneously rather than isolated cross-sections. Multi-leaf collimators shaped radiation beams more precisely, while flattening filter-free designs boosted dose rates. TomoTherapy combined CT integration with slice-by-slice radiation delivery, targeting tumors with remarkable accuracy. These innovations collectively made modern X-ray systems faster, safer, and considerably more effective than their predecessors. Intensity Modulated Radiation Therapy further refined treatment by enabling deep tumor dose delivery while simultaneously minimizing damage to surrounding healthy tissue. Superficial and orthovoltage machines gained integrated dosimetry and record-and-verify systems, allowing seamless networking with departmental patient information systems and electronic medical records.
