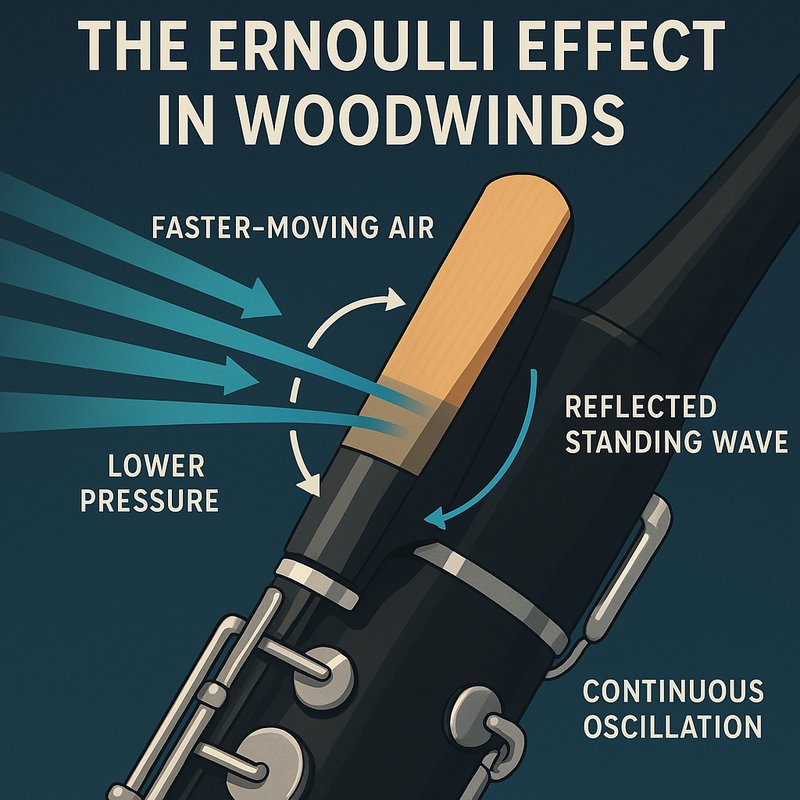

Bernoulli Effect in Woodwinds

When you blow into a woodwind instrument, faster-moving air creates lower pressure at the reed, pulling it closed — that's the Bernoulli effect at work. The air column inside the tube actually controls pitch more than the reed itself does. Reflected standing waves reopen the reed, creating a continuous oscillation cycle. Your breath pressure, not raw air volume, sustains the sound. There's much more to this fascinating aerodynamic process than most players realize.

Key Takeaways

• Faster-moving air through the reed channel creates lower static pressure, pulling the reed closed and initiating sound production.
• Daniel Bernoulli's 1738 Hydrodynamica established the foundational fluid mechanics principles that still explain woodwind sound generation today.
• The clarinet reed's natural resonance sits around 2–3 kHz, meaning the air column—not the reed—controls the instrument's pitch.
• Between threshold and closure pressures, a reed exhibits negative flow resistance, allowing it to actively generate acoustic energy.
• Reflected standing waves push pressure back into the mouthpiece, reopening the reed and sustaining continuous oscillation cycles.

What Is the Bernoulli Effect in Woodwinds?

The Bernoulli effect describes how faster-moving fluid produces lower pressure than slower-moving fluid — and in woodwind instruments, this principle directly governs how reeds vibrate and how air columns sustain sound.

When you blow air through a mouthpiece or across an embouchure shaping, you're accelerating the airstream, which drops pressure below static levels. That pressure difference drives reed movement and sustains the oscillation cycle.

Airflow visualization studies confirm that narrowed passages inside the tube speed up air particles, creating distinct low-pressure zones that pull surrounding air inward.

Daniel Bernoulli's core insight — that static pressure plus velocity head remains constant — explains why constricted regions behave differently from wider sections.

You don't need massive airflow; precise speed and direction matter far more than volume. The jet of air created by blowing pulls the reed toward the baffle through local low pressure, closing the aperture until reflected sound waves push it back open. Just as the body's internal biological clock regulates physiological cycles through precise timing rather than brute force, the reed oscillation cycle depends on carefully timed pressure differentials rather than raw air volume.

Understanding the relationship between mass, velocity, and energy in moving air systems can be further explored using a kinetic energy calculator to see how small changes in airspeed dramatically affect the energy carried by the airstream.

How the Bernoulli Effect Creates a Pressure Drop at the Reed

When air accelerates through the narrow reed channel, it trades static pressure for velocity — and that trade-off is exactly what the Bernoulli equation captures.

As flow speeds up through streamline constriction, dynamic pressure rises while static pressure falls. That pressure drop across the reed's top surface creates aerodynamic suction, pulling the flexible blades inward.

You can express this relationship as Δp = p₂ − p₁ = −½ρ(v₂² − v₁²). The faster the air moves, the greater the suction force acting on the reed. Understanding these fluid dynamics relationships often requires working through step-by-step calculations to see how each variable affects the final pressure outcome.

In a clarinet or bassoon, this reduced pressure above the reed causes it to rise or draw closed. Total pressure along each streamline stays constant — static pressure simply converts into kinetic energy as the channel narrows. Between the threshold and closure pressures, the flow resistance turns negative, meaning the reed acts as generator of acoustic energy.

How Standing Waves Build Pressure Inside the Mouthpiece

Pressure doesn't just drop at the reed — it also builds dramatically inside the mouthpiece through standing wave resonance. When you play a woodwind, standing wave pressure concentrates at the closed mouthpiece end, creating a mouthpiece antinode where air displacement is minimal but pressure fluctuations peak. The reed acts as a closed boundary, forcing air molecules to pile up and spread out with maximum intensity at that location.

Meanwhile, the first open tone hole establishes a pressure node at the opposite end, completing the quarter-wavelength configuration. This resonance feedback loop continuously refines the vibrations you initiate, amplifying them into stable standing waves. Those pressure swings at the mouthpiece antinode then drive the reed's oscillation cycles, sustaining the note you're producing. Multiple harmonics coexist simultaneously within this standing wave structure, meaning the tube supports several overtones at once, and their relative strengths shape the instrument's characteristic timbre.

How Inward-Striking Reeds Complete the Bernoulli Cycle

Reeds don't just passively flutter — they complete an active feedback cycle driven by Bernoulli mechanics. Understanding reed dynamics helps you see why airflow synchronization matters so much.

Here's how the cycle completes:

1. Pressure builds — Reflected standing waves push positive pressure back into the mouthpiece cavity.
2. Reed reopens — Increased pressure forces the inward-striking reed away from the baffle.
3. You reintroduce airflow — Your breath restarts the Bernoulli-driven jet, bending the reed closed again.
4. Cycle repeats — Each oscillation sustains the tone through continuous pressure-and-closure interaction.

This loop isn't accidental. Your blowing pressure and the Bernoulli effect work together, keeping the reed vibrating with remarkable consistency every time you play. A clarinet reed's lowest resonance frequency sits around 2–3 kHz, far above the sub-1 kHz playing frequencies, which is precisely why the reed behaves as a stiffness-dominated spring rather than a mass-driven oscillator during normal performance.

Why Reed Natural Frequency Matters Less Than Air Pressure

The Bernoulli feedback cycle you just saw depends on something counterintuitive: the reed's natural frequency barely matters. While the reed itself vibrates naturally between 2000–3000 Hz, the air column resonates far below that range—and the air column wins. That's pressure tuning in action.

Wind pressure variations control the reed's instantaneous speed far more than elastic properties do. When you play louder or softer, you're changing wind pressure, which shifts the frequency. That's why beating reeds aren't isochronous—they respond to pressure, not just mechanical resonance.

Understanding reed dynamics means recognizing that the tongue functions primarily as a valve, not a vibrating spring. The Bernoulli force never stops pushing throughout each oscillation cycle, making air pressure the dominant controller of everything you hear. Unlike beating reeds, free reeds behave as acoustic negative resistance oscillators, meaning their oscillation frequency remains virtually independent of amplitude and blowing pressure.

Bernoulli Effect in Woodwinds vs. Brass

While woodwinds and brass both harness the Bernoulli effect, they do so through fundamentally different mechanisms. In woodwinds, reeds vibrate as airflow accelerates through narrow openings, dropping pressure cyclically. In brass, your lips act as the vibrating source, with moving air lowering pressure between them. In brass playing, a higher tongue arch reduces the oral cavity's cross-sectional area, which is thought to increase air velocity toward the aperture.

Here's what sets them apart:

1. Sound source – Reeds vs. lips drive oscillation
2. Pitch control – Tone holes vs. slides/valves alter tube length
3. Mouthpiece geometry – Brass cups form Helmholtz cavities, emphasizing higher harmonics
4. Embouchure training – Brass players adjust tongue arch and aperture elasticity, while woodwind players manage reed compliance and inertia

Understanding these distinctions helps you appreciate why each instrument demands unique physical techniques despite sharing the same underlying aerodynamic principle.

The Scientists Behind the Bernoulli Effect

Daniel Bernoulli didn't work in isolation, though. He collaborated closely with mathematician Leonhard Euler, who later derived Bernoulli's equation in its standard mathematical form in 1752.

Together, their contributions transformed fluid mechanics into a precise science. When you hear a woodwind instrument produce sound, you're experiencing the direct result of these two scientists' groundbreaking partnership. Bernoulli's landmark work, Hydrodynamica, was published in 1738 and laid the foundational principles of fluid mechanics that continue to explain how woodwind instruments produce sound today.
