The Hammond B3 isn't just a keyboard — it's a spinning, gear-driven machine where 91 tonewheels generate real electromagnetic sine waves. You control the sound through nine color-coded drawbars, each adding a specific harmonic partial to your tone. Pull them out, blend them together, and you're fundamentally building sound from scratch. Brown drawbars add sub-bass depth, white ones shape the core pitch, and black ones inject upper harmonic grit. There's a lot more going on beneath the surface.

Key Takeaways

• The Hammond B3, introduced in 1955, generates 91 individual sine-wave tones using spinning metal tonewheels near electromagnetic pickups.
• Nine color-coded drawbars control harmonic partials; pulling them out adds that frequency, with eight volume levels each.
• Drawbar settings are read as a nine-digit code grouped 2-4-3, ranging from 0 (silent) to 8 (maximum).
• The 8' drawbar produces the fundamental pitch; 16' adds depth below; 4' and higher add increasing brightness.
• Brown, white, and black drawbars indicate distinct harmonic roles: sub-fundamentals, octave-based tones, and upper odd harmonics respectively.

How the Hammond B3 Generates Sound From Spinning Metal

At the heart of the Hammond B3 sits a mechanical marvel: rotating metal disks called tonewheels, each etched with tiny notches that determine pitch. As these disks spin near electromagnetic pickups, pickup physics converts the shifting magnetic fields into audio signals. You're effectively hearing rotational harmonics translated into electricity.

The main tone generator uses 48 sub-assemblies, each housing a shaft, two tonewheels, and a bakelite gear. A synchronous motor keeps everything running continuously, while spring couplings absorb speed variations that would otherwise introduce unwanted frequencies. After engaging the start switch, you'll wait roughly 12 seconds before the tonewheels reach operational speed.

Once spinning, the tonewheels generate 91 individual sine-wave tones across the keyboard's range, giving the B3 its distinctively rich, complex sound. The number of notches on each tonewheel directly determines the pitch of that note. Much like the transistor radios and stereo systems that debuted at the 1967 Consumer Electronics Show, the Hammond B3 represented a leap in how electrical engineering could be harnessed to reshape the landscape of sound and music. Just as Tim Berners-Lee's development of HTTP, HTML, and URIs laid the groundwork for a universally accessible web, the Hammond B3's interlocking mechanical and electrical systems created a unified framework for generating and shaping sound in ways previously unimaginable.

What Makes the B3 an Electromechanical Instrument?

Those 91 spinning tonewheels aren't just an engineering curiosity—they're exactly what earns the B3 its "electromechanical" classification. Unlike electronic synthesizers that generate sound purely through circuitry, the B3 combines physical movement, electrical signals, and acoustic output into one unified system.

Hammond borrowed precision clock motors to drive tonewheel rotation, and that mechanical resonance—the actual physical spinning of machined metal discs near electromagnets—sits at the heart of every note you hear. You're not triggering a stored waveform; you're capturing a real electromagnetic signal from a real moving object.

This also connects the B3 technologically to the electric guitar, where electromagnetic pickup principles operate similarly. Physical moving parts distinguish the B3 from anything purely electronic, making its classification genuinely accurate rather than just historical labeling. Introduced in 1955, the B3 was a direct evolution of the original 1936 Model A design that first established the tonewheel system.

What Each of the Nine Drawbars Actually Does

Each of the nine drawbars controls a specific harmonic partial, and pulling one out adds that frequency to your overall tone. The 8' drawbar is your fundamental—it produces the pitch you're actually playing. White drawbars handle even harmonics, adding warmth, while black drawbars introduce odd harmonics for complexity and edge.

Understanding harmonic balance means knowing how these partials interact. Pull the 16' for depth, the 4' for brightness, or the 5⅓' for that distinctive fifth. Each position from 1 to 8 increases volume in roughly 3dB increments, giving you precise control.

Good drawbar etiquette involves adjusting inactive preset sets during performance so your tone changes stay seamless. You're not just pulling sliders—you're sculpting frequencies in real time. The middle pair of drawbars specifically controls the voicing for the bass pedals, giving you a separate tonal layer beneath your manual playing.

White, Black, and Brown Drawbars: What's the Difference?

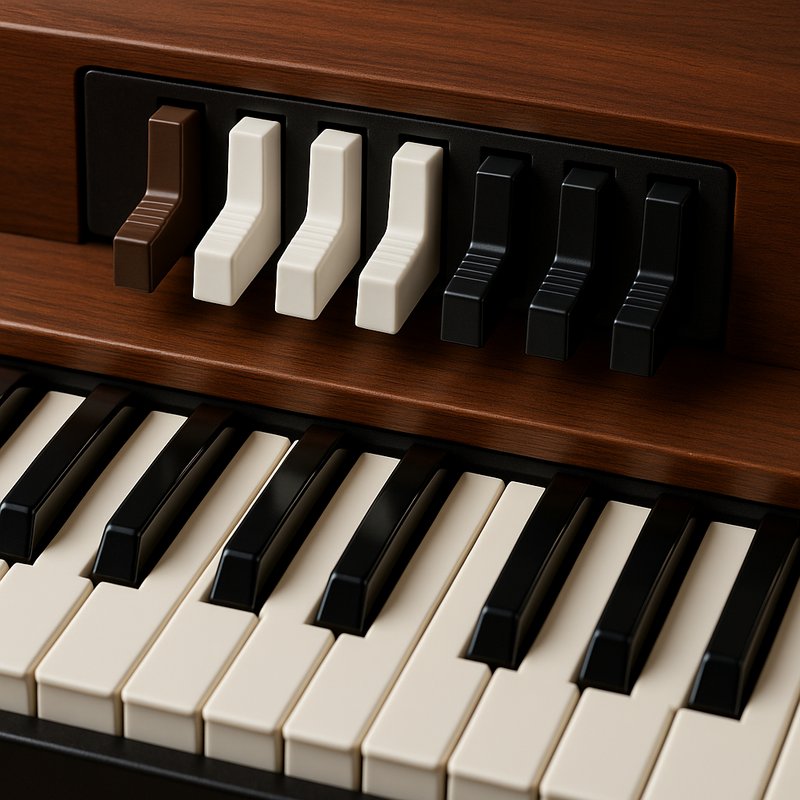

The nine drawbars on a Hammond B3 aren't identical—they're color-coded brown, white, and black to signal their harmonic roles. These harmonic colorways let you instantly identify each drawbar's function without reading labels. Brown drawbars sit leftmost, producing sub-fundamental tones below the core pitch—the 16′ adds depth, while the 5 1/3′ delivers a sub-third harmonic.

White drawbars generate your fundamental and octave-based tones, giving you the primary pitch structure.

Black drawbars introduce dissonant upper harmonics like the twelfth, seventeenth, and nineteenth, coloring your tone with complexity. Beyond visual identification, the color system serves tactile ergonomics—you'll feel and recognize each group by position as your hands move quickly across the console, making real-time adjustments faster and more intuitive during performance. Each drawbar offers eight individual settings, controlling exactly how much of that drawbar's tone is blended into your final signal.

How to Read Any Hammond B3 Drawbar Setting

Once you know what each color group does, you can start reading drawbar settings as written notation—a nine-digit code that tells you exactly where every drawbar sits before you touch the console.

The nine digits break into a 2-4-3 grouping: the first two cover the 16' and 5⅓' white drawbars, the middle four handle the core 8', 4', 2⅔', and 2' whites, and the last three address the black drawbars.

Each digit runs 0–8, with zero silencing that harmonic completely.

This harmonic scaling lets you quickly gauge intensity across the tonal range. Much like how Salvador Dalí's paranoiac-critical method transformed subconscious impressions into precise visual codes, experienced organists develop an internalized system for translating drawbar notation into immediate sonic imagery.

Use visual mapping to mentally place each digit against its physical drawbar position, and you'll decode settings like 88 8800 000 or 00 8400 000 instantly. If you run into trouble accessing online drawbar references, a 403 forbidden error may indicate a proxy server or browser privacy software issue blocking the resource.

How the B3 Drawbar System Mimics a Pipe Organ

Hammond's drawbar system borrows its entire tonal logic from the pipe organ, so understanding one helps you understand the other. Pipe lengths determine pitch, and each drawbar directly mirrors that relationship through harmonic blending.

Here's how the parallel works:

1. 8' drawbar produces the fundamental pitch, matching a real pipe organ's 8-foot pipe length.
2. 16' drawbar sounds an octave lower, mimicking longer bass pipes.
3. 4', 2', and 1' drawbars replicate shorter treble pipes pitched in rising octaves.
4. 2 2/3' and 1 3/5' drawbars add mid-range harmonics, equivalent to specialized pipe ranks.

Instead of wind-driven pipes, tonewheels generate precise sine waves, giving you clean harmonic blending that traditional pipes can't match. Pulling a drawbar further out increases the volume of that harmonic, so pulling out more drawbars adds more layers of harmonic content to your overall sound.

The Percussion Feature and Why Soloists Rely on It

Adding a distinctive "plink" to each note's attack, the Hammond B3's percussion feature layers second and third harmonic overtones onto the front edge of your sound before they quickly fade, leaving the drawbar tones to sustain underneath.

Understanding percussion mechanics matters because the circuit triggers only from a full all-keys-up state, meaning legato playing fires percussion solely on the first note. You'll need to release all upper manual keys before retriggering it in fast runs.

Touch dynamics become a creative tool here. On models like the B3 and C3, you can accent melody notes with percussion while keeping grace notes dry. Combined with light drawbar settings and a Leslie cabinet, this feature gives your solos the pluck and attack that define jazz phrasing, as Joey DeFrancesco demonstrated on "Fly Me to the Moon." The percussion tone itself is produced by an envelope filter using the highest harmonic drawbar, and it functions exclusively on the upper manual.

How Preset Keys Let Players Switch Tones Mid-Performance

Tucked at the upper left of each manual, the B3's reverse-colored preset keys let you recall complete drawbar configurations instantly, so you can shift between tones mid-performance without touching a single drawbar.

Each pressed key delivers instant timbre changes while manual independence keeps your upper and lower voices separately controlled.

Here's what you should know:

1. 12 preset keys per manual are labeled C through B, each storing a unique drawbar combination.
2. Upper manual presets load full organ settings, including pedals.
3. Lower manual presets affect only the lower manual and pedals.
4. The cancel key releases all engaged presets, giving you a clean reset instantly.

The depressed key stays visually down, confirming exactly which preset you're running. On real B3s, those internal preset wirings could be manually reassigned, though the process was cumbersome and potentially hazardous if done while the instrument was powered.

Why Drawbar Crosstalk Is a Feature, Not a Flaw

While preset keys give you instant, deliberate control over your tone, not every sonic characteristic of the B3 works that way. Drawbar crosstalk is a perfect example. It's unintended harmonic leakage caused by capacitive coupling between the high-impedance tonewheel pickups and key contacts. That tactile imperfection means adjacent tones faintly bleed into each other, creating subtle harmonic richness you can't dial in deliberately.

Nine key contacts per note don't close simultaneously, and mechanical contact bounce introduces random transients that thicken your sound naturally. Rather than sterilizing this out, Hammond's engineers left it intact. Combined with key click and tube amplification, crosstalk became central to the B3's signature warmth. Modern emulations actively replicate it because removing it would strip away exactly what makes the instrument sound alive. Magnetic leakage between tonewheels sharing the same gear bin produces audible leakage four octaves above or below the target tone, adding another layer of unplanned harmonic color baked into every note.

Famous B3 Drawbar Settings Worth Learning by Heart

Certain drawbar settings have earned their place in muscle memory for good reason—they're starting points that generations of organists have reached for instinctively. These classic voicings cover gospel, comping, and pipe organ bass emulation across both manuals.

Upper Manual Essentials:

1. 888000008 – Full gospel tone with percussion on (soft, fast decay, third harmonic)

2. 00 6634 221 – Mimics the 1st Open Diapason 8' on Great for pipe organ texture

3. 00 6433 322 – Replicates the 2nd Open Diapason 8' with slightly softer presence

Lower Manual Foundation:

4. 848 or 838 – Your go-to bass emulation setting for comping roles, giving the left hand warmth without overwhelming the upper voice

Commit these to memory first—everything else builds from here.
