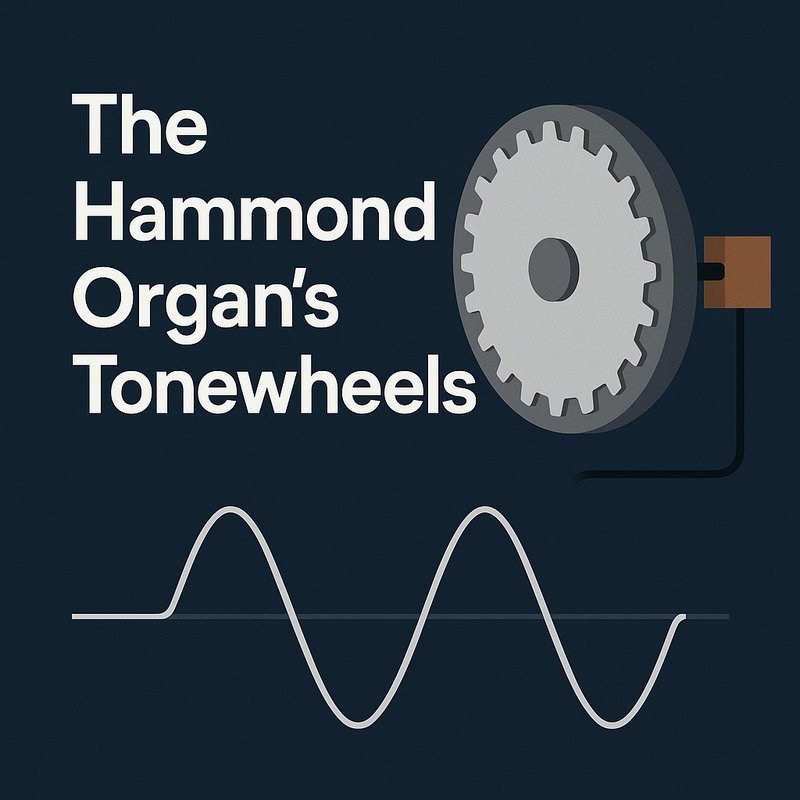

Hammond Organ’s Tonewheels

Hammond organ tonewheels are small iron discs, roughly two inches across, that spin near magnets to generate alternating current through electromagnetic induction. Each disc's precisely machined bumps approximate a sine wave, giving the organ its smooth, voice-like tone. Because physical gear teeth can only approximate equal temperament, your Hammond can never be perfectly in tune. Some wheels don't even have teeth — they're just counterweights. There's plenty more fascinating mechanical trickery waiting if you keep exploring.

Key Takeaways

• Hammond tonewheels are small iron or steel discs roughly two inches in diameter, with precisely machined bumps generating near-pure sine wave signals.
• A knobbly metal wheel rotating near a magnet disturbs the magnetic field, converting mechanical rotation into alternating current like a miniature alternator.
• Equal temperament requires irrational divisions, so gear teeth can only approximate perfect tuning, causing some notes to run nearly 2 cents sharp.
• Magnetic leakage between tonewheels in the same bin bleeds unintended harmonics four octaves up or down, adding accidental richness to the sound.
• The tonewheel generator uses 96 tonewheels total despite only needing 91 tones, since the design required a number divisible by 12.

What Makes a Hammond Tonewheel Generate Sound

At the heart of every Hammond organ sits a deceptively simple mechanism: a knobbly metal wheel rotating near a magnet. As the wheel's bumps pass the magnet, they disturb the surrounding magnetic field, triggering magnetic induction inside a nearby pickup coil. That pickup coupling converts mechanical rotation directly into alternating current, functioning effectively like a miniature alternator.

You'll notice the output resembles a near-pure sine wave, making it ideal for blending rotational harmonics across multiple tonewheels. Each bump's shape deliberately approximates a sine curve, keeping the tone clean yet slightly organic.

Motor synchronization ties everything together. A synchronous AC motor maintains constant rotational speed, ensuring every tonewheel spins predictably. Without that stability, pitch would drift unpredictably, undermining the entire instrument's tuning accuracy across all 91 active tonewheels. At 60 Hz mains frequency, the motor locks to 1200 RPM, spinning at precisely 20 revolutions per second to keep every pitch anchored to its intended frequency. Just as the Event Horizon Telescope relied on ultra-precise atomic clocks to synchronize data across continents, the Hammond's synchronous motor depends on an equally unwavering timing reference to keep its tonewheels in tune. Much like the NASA-funded study that validated the computer mouse through timed comparative testing, the Hammond's tonewheel design was refined through systematic evaluation to confirm it could reliably produce stable, consistent pitch output across all registers.

The Two-Inch Iron Disc Behind Every Note

Now that you understand how those bumps trigger magnetic induction, it's worth looking at the disc itself.

Each tonewheel is a small iron disc, roughly two inches in diameter, though some specs describe steel as the material choice. Either way, manufacturers applied a paint coating to prevent rust.

That two-inch size creates real machining limits. At the highest octave, 256 teeth would ideally follow the established powers-of-two pattern, but the disc's circumference simply can't accommodate that many. Engineers settled on 192 teeth instead.

The five remaining upper-octave wheels stay uncut, serving only as counterweights for rotational balance.

Manufacturers machined each rim precisely, shaping the bumps to produce a sine wave output. You'll often find these wheels coated in oil inside actual generators. The development of tonewheel technology shares a surprising lineage with broader radio control innovations of the early twentieth century, where precise electromagnetic engineering principles shaped multiple industries simultaneously. Some tonewheels in the generator are left entirely blank with no pickups, included solely to maintain mechanical balance during rotation.

Why Hammond Organs Can Never Be Perfectly in Tune

Despite what you might expect from a precision instrument, Hammond organs can never achieve perfect tuning—and the reason comes down to physics and mathematics colliding with mechanical reality. Equal temperament requires irrational mathematical divisions that physical gear teeth simply can't replicate, making every note a mechanical compromise.

Here's what makes this unavoidable:

• Gear ratios can only approximate true equal temperament since tooth counts must be whole numbers
• Harmonic leakage between tonewheels sharing the same driven gear introduces uncontrolled overtones four octaves above or below intended pitches
• The top half octave deviates most noticeably, with C# running nearly 2 cents sharp—still below human perception thresholds

You're not hearing perfect tuning. You're hearing the best approximation mechanical engineering could achieve. The tone generator relies on a main terminal strip where harness wires can break loose, causing loss of harmonics or entire notes across the manuals and pedals, meaning even this carefully engineered approximation depends on terminal strip integrity to be heard at all.

Why Some Tonewheels Have No Teeth and No Pickups

When you crack open a Hammond generator, you'll find something unexpected: some tonewheels have no teeth and generate no sound whatsoever. These blank discs aren't manufacturing shortcuts or oversights — they're deliberate mechanical counterweights keeping the geartrain spinning smoothly.

Here's why they exist: Hammond's generator design requires 96 tonewheels, a number divisible by 12. But the highest octave only needs 91 tones. The remaining five positions get smooth, uncut iron discs that balance rotation without producing magnetic field modulation.

Cutting machinery couldn't handle 256 teeth on those top wheels, so Hammond used 192-tooth wheels for tones and blanks to fill the rest. Spinet models like the M-series follow the same logic, placing blanks at positions 13–17 since the lower manual stops at F. In fact, the 192-tooth wheels used in the uppermost octave average approximately 1.64 cents sharp relative to the tonewheels in the lower octaves.

How Tonewheel Design Shaped the Hammond's Signature Sound

The tonewheel's rotating teeth don't just generate pitch — they shape timbre, attack, and even the subtle imperfections that define Hammond's character. Every design choice carries sonic consequences you can actually hear.

• Magnetic leakage between tonewheels sharing a bin bleeds harmonics four octaves up or down, adding unintended richness
• Mechanical detuning occurs in the top octave, where 192-tooth wheels instead of 256 push certain notes up to 1.93 cents sharp
• Key click — caused by nine contacts closing simultaneously — creates that percussive attack engineers once considered a flaw

Digital clones now deliberately emulate these artifacts. What started as engineering compromises became the Hammond's most recognizable traits, proving that imperfection can define a sound entirely. The tonewheels themselves were driven by a tonewheel generator that required a dedicated starter motor to reach proper operating speed before any sound could be produced.
