Harp’s Double-Action Pedals

The harp's double-action pedal system lets you play in any key without stopping to retune a single string. Each of the seven pedals controls an entire pitch class across multiple strings at once. You can shift between flat, natural, and sharp with just a foot movement, keeping your hands free on the strings. Sébastien Érard patented this revolutionary design in 1801, and it's been the concert standard ever since. There's much more to uncover about how it all works.

Key Takeaways

• Sébastien Érard patented the double-action harp in 1801, with refinements culminating in the double-notched disc system by 1811.
• Each pedal has three positions—flat, natural, and sharp—granting access to all 12 chromatic pitches without retuning.
• Seven pedals control strings by pitch class, with left foot operating D, C, B and right foot operating E, F, G, A.
• Rotating brass discs grip strings via prongs, shortening string length to raise pitch by one or two semitones.
• Unlike lever harps, double-action pedals allow full chromatic key changes without manually touching individual strings.

What Are Double-Action Pedals on a Harp?

Double-action pedals are the mechanism that give pedal harps the ability to play in any key across the full chromatic scale. Each pedal controls every string sharing one pitch class, so when you move a single pedal, you're adjusting multiple strings at once.

Two rows of discs per string handle semitone shifts, letting you reach flats, naturals, or sharps without interrupting your playing.

Understanding pedal ergonomics matters because you'll operate seven pedals with both feet while your hands stay active on the strings. Notation adaptations in harp music reflect this system directly, showing pedal markings that tell you exactly which position each pedal requires.

This design is what separates pedal harps from lever harps, where you'd manually flip individual levers instead. On a lever harp, one lever per string raises only that individual string by a half step when engaged manually.

How the Double-Action Mechanism Actually Works

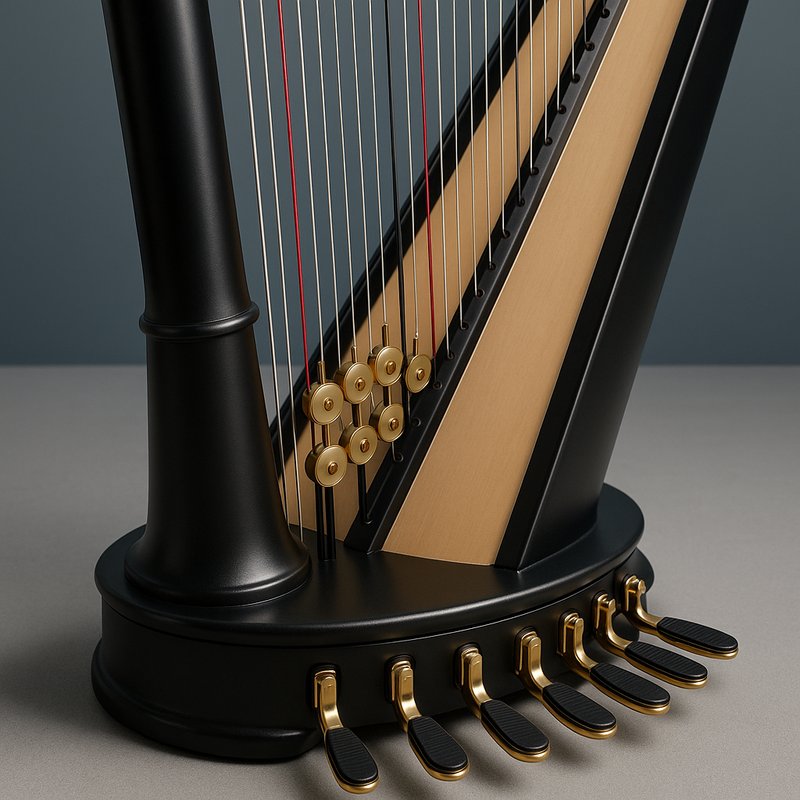

When Sébastien Érard patented the double-action harp in 1801, he built the mechanism around a deceptively simple fork system: seven pedals, each capable of two distinct depressions, controlling strings through rotating brass discs stacked vertically in the neck.

Pressing a pedal to the middle notch rotates the upper disc, whose prongs grip the string, raising pitch one semitone through string friction. The lower disc rotates 45 degrees without touching the string. Pressing further engages the lower disc, adding 35 more degrees of rotation, gripping the string again and raising pitch another semitone.

Steel rods transfer linear pedal motion through the forepillar into rotational disc movement inside the neck. Riveted disc connections endure constant mechanical wear, requiring periodic re-riveting to maintain precise circular rotation and accurate intonation. The use of laminated wood in construction increased overall structural strength, promoted longer string life, and contributed to more even string tension across the instrument. This same devotion to traditional hand craftsmanship that defined movements like Arts and Crafts also influenced instrument makers who prioritized material integrity and quality construction over mass-produced alternatives. Much like how decentralized information systems were proposed to solve problems of incompatibility across thousands of users at CERN, instrument designers sought universal mechanical solutions that could function reliably across varying performance environments and climatic conditions.

Three Pedal Positions and What Each One Does

Each of the harp's seven pedals operates across three distinct positions—flat, natural, and sharp—giving you direct control over pitch across every octave. In the top position, no discs engage, leaving strings at full length and lowest string tension, producing a C flat major tuning.

Moving a pedal to the middle position activates one disc, shortening each string by a semitone and raising the pitch to natural, giving you C major across all strings. Dropping the pedal fully into the bottom position engages both discs, raising the pitch two semitones from flat to sharp, resulting in C sharp major.

Understanding pedal ergonomics matters here—your left foot handles D, C, and B, while your right controls E, F, G, and A, allowing efficient, well-distributed changes during performance. It is worth noting that contra C and D strings must be pre-tuned by hand, as the pedal mechanism does not affect these two lowest strings regardless of pedal movement.

Why Seven Double-Action Pedals Can Cover Every Musical Key

Seven pedals covering every musical key might seem impossible until you understand the math behind the double-action mechanism.

Each pedal delivers three positions, giving you 21 total states across seven pitch classes.

That's enough to access every major and minor key through smart enharmonic notation.

Here's what makes this system genuinely powerful:

1. You can sound C-sharp and D-flat simultaneously using enharmonic notation on separate strings
2. You can shift from D-flat major to C major with rapid pedal choreography between both feet
3. You can reach all 12 chromatic pitches without your hands ever leaving the strings

Your left and right feet work independently, making complex pedal choreography feel natural once you've practiced it consistently.

The pedal layout follows a fixed order of D C B on the left and E F G A on the right, anchoring how composers and performers plan key changes across a piece.

The concept of a system that is both ideal and yet maddeningly difficult to achieve in practice echoes the wordplay behind Sir Thomas More's Utopia, coined to mean both "good place" and "no place" simultaneously.

How Did Double-Action Pedal Design Evolve?

The double-action pedal harp you play today didn't emerge overnight—it evolved through nearly a century of mechanical experimentation. Jacob Hochbrucker's 1720 single-action harp used basic metal crutches, while Georges Cousineau's 1782 fourteen-pedal design allowed flat, natural, and sharp shifts. These early innovations laid groundwork for Sébastien Erard's revolutionary fork system, which replaced unreliable crutches with rotating brass prongs, eliminating string buzzing and breakage.

Erard's manufacturing innovations continued through patents in 1801, 1802, and 1810, culminating in the refined double-action mechanism by 1811. Later ergonomic evolution addressed player comfort—lowering neck height near the highest strings and gradually angling strings for consistent finger positioning. Each of the harp's seven pedals corresponds to a single pitch-class, connecting via rods or cables running through the column to a mechanism housed in the neck. These refinements transformed a mechanically complex instrument into the concert harp standard you recognize today.

How Is Double-Action Different From Single-Action?

Understanding how Erard's double-action mechanism improved upon earlier designs means comparing it directly against single-action harps.

Single-action pedals only raise pitch by one semitone, locking you into diatonic tuning plus sharps. Double-action breaks that barrier entirely.

Clearing up historical misconceptions matters deeply in performance pedagogy—teachers must emphasize these distinctions:

1. Single-action harps require manual string retuning for flats, costing you precious performance time.
2. Double-action pedals offer three positions—flat, natural, sharp—giving you full chromatic freedom instantly.
3. Single-action mechanisms weren't designed for rapid changes, while double-action supports simultaneous opposite-side pedal shifts.

You can hear the difference these capabilities make. Double-action transformed what harpists could attempt musically, and understanding that evolution sharpens both your historical knowledge and your playing.

The Practical Advantages That Made Double-Action the Concert Standard

Double-action pedals earned their place as the concert standard by solving every practical limitation their predecessors couldn't. You get full chromatic access across all keys without touching individual strings, making rapid modulation seamless during live performance. Each of the seven pedals controls an entire pitch class simultaneously, so you're never stopping mid-phrase to flip levers. Erard's 1811 refinements locked in the double-notched disc system, producing consistent intonation across every octave.

For orchestral integration, that precision matters enormously. You can shift keys within a single beat, execute pedal bends, and navigate complex contemporary scores that single-action harps simply can't handle. The mechanism keeps your hands on the strings and your focus on the music, which is exactly why concert harpists haven't looked back. By contrast, the double-strung harp uses two parallel rows of identical strings, giving players a different approach to chromatic access through physical string duplication rather than a pedal mechanism.
