Moog Synthesizer: Voltage Control

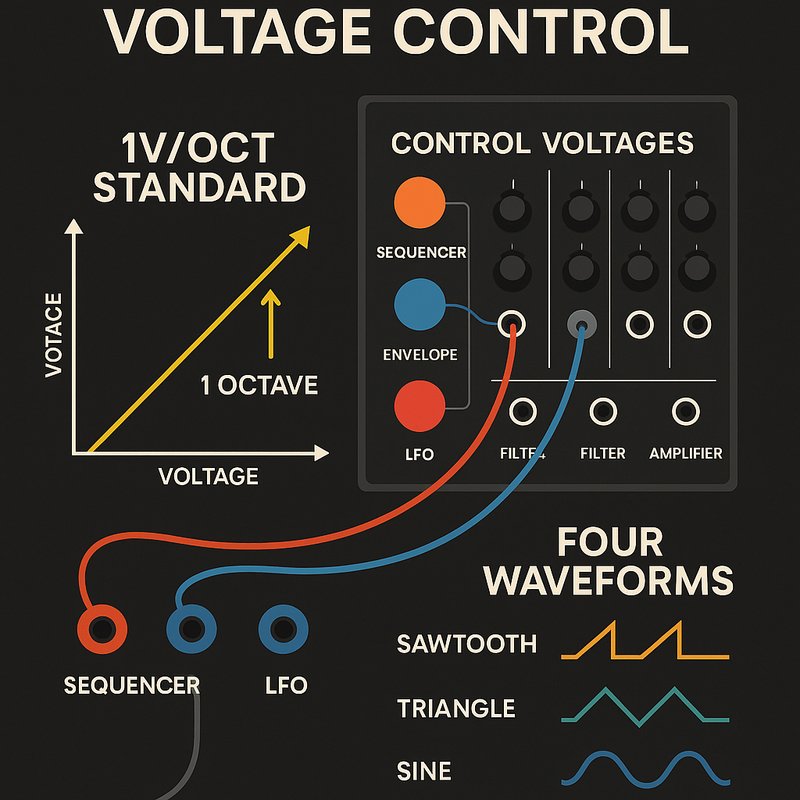

Voltage control replaces manual knob adjustments with automated electrical signals, giving you precise, repeatable control over pitch, filter, and amplitude. Bob Moog established the 1V/Oct standard, where every volt increase raises pitch by one octave and each semitone equals roughly 0.0833V. Sequencers, envelopes, and LFOs all send control voltages to shape sound without human intervention. It's the hidden language powering every patch, and there's plenty more fascinating detail waiting ahead.

Key Takeaways

• Bob Moog established the 1V/Oct standard, where each volt raises pitch one octave and every semitone equals approximately 0.0833V.
• The Minimoog Model D's pitch CV output spans -3 to +7 volts, with middle C calibrated at exactly 0 volts.
• CV delivers continuous voltage, enabling smoother parameter changes than MIDI's discrete, stepped control signals.
• The 901A controller could simultaneously drive up to twelve 901B oscillators from a single CV source.
• Competing Hz/V standard, used by Korg's MS-20, caused significant cross-compatibility issues with 1V/Oct equipment.

What Voltage Control Actually Does Inside a Synthesizer

Voltage control lets external signals manipulate a synthesizer's module parameters beyond what manual knobs can do in real time. It's the core principle driving modular synthesis, allowing variable voltages to adjust pitch, filter frequencies, and amplitude dynamically. You're fundamentally replacing physical tweaks with precise, automated electrical signals.

Control routing connects modules that produce voltages to those that receive them, creating a flexible signal network. A sequencer, for example, outputs stepped voltages that drive an oscillator's pitch without you touching anything. VCOs respond to pitch voltage using a 1 volt per-octave response, meaning each increase of one volt shifts the frequency up by exactly one octave. This standardized scaling makes it straightforward to calculate pitch frequency relationships across multiple octaves with consistent and predictable accuracy.

Envelope modulation takes this further by shaping how parameters change over time. An envelope generator responds to a gate signal and produces a time-varying voltage that sculpts filter cutoff or volume across Attack, Decay, Sustain, and Release phases. Engineers and designers often use tools like trigonometric functions calculators to verify the mathematical relationships underlying these cyclical waveform behaviors during synthesis design.

Robert Moog and Herbert Deutsch's 1964 Prototype

Robert Moog and Herb Deutsch's partnership began at a 1963 music educators' trade fair in Rochester, New York, where Deutsch—a Hofstra University professor and experimental jazz musician—approached Moog, then a Cornell doctoral student and theremin designer.

By 1964, they'd built a prototype featuring two voltage-controlled oscillators and one voltage-controlled amplifier. Deutsch's suggestion that notes should fade in and out directly inspired the envelope module, first tested with a doorbell button.

Early demonstrations proved immediately compelling—Deutsch drew crowds playing the prototype on the spot at the Audio Engineering Society's October 1964 New York convention.

Moog sent the prototype to Deutsch in 1965 for continued use. Its historical ownership passed from Deutsch to the Henry Ford Museum in 1982, where it remained before arriving at the Moogseum on loan. The voltage-control concept pioneered in this prototype used one volt per octave as its standard for pitch control, a design principle that would go on to define the modern analog synthesizer.

What the 0–5V Control Voltage Standard Means for Pitch

When Bob Moog established the 0–5V control voltage (CV) standard, he gave synthesizer designers a simple but powerful tool: a direct relationship between voltage and pitch.

Every volt increase raises the pitch by one octave, making keyboard mapping straightforward—each key generates a precise voltage that corresponds to a specific note. This 1V/Oct principle enables pitch quantization, ensuring oscillators lock to musically correct intervals rather than drifting between them.

On the Minimoog Model D, the pitch CV output spans -3 to +7 volts, with C calibrated at 0 volts.

You'll find this standard still dominant today, used across current Moog equipment and Doepfer Eurorack modules. Its simplicity is why it's outlasted competing voltage standards and remains the foundation of modern analog synthesis. Unlike MIDI's 128 discrete steps, CV delivers a continuous voltage signal that allows for far smoother and more nuanced parameter changes across any assigned control. Much like the W3C was founded in 1994 to ensure long-term consistency and quality across the Web, standardized voltage specifications gave the analog synthesis world a shared framework that manufacturers could build around reliably.

Why 1 Volt Per Octave Became the Universal Pitch Standard

The 1V/Oct standard didn't become universal by accident—Bob Moog's design matched the exponential nature of pitch perception to a clean, predictable voltage scale. This historical convergence of elegant engineering and musical logic made adoption straightforward for other manufacturers.

Early adopters like Roland, ARP, Oberheim, and Sequential Circuits embraced it, enabling cross-manufacturer compatibility that competing standards couldn't offer. You could patch a Moog sequencer into a Roland oscillator and it simply worked.

Here's what makes 1V/Oct so effective:

• Every semitone equals exactly 0.0833V
• One octave always equals exactly 1V, regardless of register
• Exponential conversion guarantees consistent tuning across all pitches

Korg and Yamaha's linear Hz/V alternative never achieved the same reach, leaving 1V/Oct as the enduring industry standard. The MS-20's Hz/V scaling remains one of the most commonly cited sources of compatibility issues when integrating that instrument with standard 1V/Oct gear.

The Four Waveform Outputs of the 901 VCO

Once you understand how voltage maps to pitch, the next layer of Moog's architecture worth examining is what the 901 VCO actually sends down those patch cables.

The 901B delivers four simultaneous fixed outputs—sawtooth, triangle, sine, and pulse—each running at 0.5V RMS through 600-ohm impedance. You're getting distinct harmonic textures from each: the sawtooth adds aggressive richness, the pulse drives classic leads, the sine stays clean for FM work, and the triangle suits smooth modulation.

Beyond the fixed outputs, four variable-level attenuated versions let you dial in waveform blending across 0 to 0.5V, sculpting entirely new timbres by combining waves.

The 901C extends this further with inverted outputs, giving you even more control over harmonic shaping without additional patching. A single 901A controller module can drive up to twelve 901B oscillators simultaneously, allowing entire banks of oscillators to track together from one centralized CV source.

How Moog's Modular System Connected Every Sound Source

Patch cables serve as the nervous system of Moog's modular architecture, routing both audio signals and control voltages between every module in the chain. Your patch cable choreography determines how oscillators, filters, and amplifiers interact, shaping every sonic outcome.

Through careful patch bay mapping, you'll connect:

• LFO outputs directly into oscillator frequency inputs for rhythmic modulation
• Envelope generators into the 902 VCA, controlling amplitude through dynamic voltage responses
• Gate signals through multiple modules, stacking 5-volt sources to reach 10 volts for full filter sweeps

The 921A Oscillator Driver manages multiple 921B oscillators simultaneously via behind-panel connections, while CV inputs refine pitch across the entire group. Every cable you place defines the synthesizer's voice. The CP-3 mixer introduces phase-cancellation-driven fluctuation at the filter input when multiple oscillators are combined, adding organic movement to the signal before it ever reaches the filter stage.

How the 901A Controller Kept Multiple VCOs in Sync

Keeping multiple VCOs locked to a single pitch source was the 901A Controller's core purpose, and it accomplished this by wiring up to twelve 901B oscillators in parallel through a shared set of control voltages.

This sync topology meant a single keyboard signal traveled simultaneously to every oscillator in the bank. Each 901B's Frequency Vernier dial then let you offset its pitch slightly from the shared converted voltage, keeping a consistent gap — say, 0.5Hz — across every octave.

That consistent offset is what bank calibration depended on: without it, oscillators would drift apart as you moved up the keyboard. Because the 901A handled the exponential conversion centrally, every connected 901B tracked the same 1V/octave relationship without needing its own conversion circuit. The module also supplied a dedicated pulse reference voltage specifically tailored to drive the 901B's waveform circuitry alongside the control voltage output.

Why Temperature Made Early Moog Oscillators Unstable

Temperature was the silent enemy of early Moog oscillators, and it didn't take much of a shift to throw everything out of tune. Temperature instability caused components to shift unpredictably, making reliable pitch nearly impossible without constant intervention.

Here's what you'd deal with using early Moogs:

• Retuning every 20 minutes as oscillators drifted a fifth apart
• Capacitor mismatch problems when polystyrene caps were swapped for Mylar substitutes, breaking temperature compensation entirely
• Cold environments accelerating detuning dramatically

The polystyrene timing capacitors weren't arbitrary choices — their dielectric properties were essential for canceling out temperature-induced variation. Substituting incorrect caps destroyed that compensation design. Moog eventually addressed this by heating VCO cores to 35°C, keeping internal conditions consistent regardless of what the room temperature was doing. Synths using custom digital oscillator cores, such as certain Yamaha models, bypassed this thermal instability problem entirely since their digital oscillator designs did not require the same kind of temperature compensation.

How the Minimoog Brought Moog's Modular Design to the Stage

The Minimoog grew out of a scrappy internal effort — engineers built the first prototype by sawing a keyboard in half and wiring modular components into a small cabinet, all while Robert Moog was away and the company's future looked uncertain.

Successive prototypes refined stage portability and performer ergonomics, culminating in the Model D's flip-up control panel and left-hand pitch bend and modulation wheels.

Engineers stripped down complex modular circuits, stabilizing oscillators, filters, and envelopes into a self-contained instrument you could actually carry to a gig.

The trade-off was real — you gave up open-ended modular patching — but what you gained was a warm, expressive synthesizer ready for live performance.

Robert Moog authorized production after initially scolding his team, and Moog Music released the Model D in 1970. Its iconic timber case, aluminium panels, coloured rocker switches, and textured front panel set a visual and ergonomic standard that other manufacturers would spend decades trying to imitate.
