Piano's Escape Mechanism

Every time you press a piano key, a tiny lever called a jack launches the hammer toward the string — then deliberately trips away so the hammer can't muffle the sound. This "escapement" mechanism lets the string ring freely while catching the returning hammer before it bounces. Invented around 1700 by Bartolomeo Cristofori, it's evolved from a simple single-escapement into today's sophisticated double-escapement systems. There's far more fascinating mechanical genius waiting to be uncovered.

Key Takeaways

• The escapement mechanism allows the hammer to disengage immediately after striking the string, preventing it from dampening the note's resonance.
• Bartolomeo Cristofori invented the single escapement around 1700, requiring pianists to fully release each key before repeating a note.
• Sébastien Érard's 1821 double escapement patent revolutionized piano playing by allowing notes to repeat without a full key release.
• Grand pianos use double escapement with gravity resetting the hammer, enabling up to eight repetitions per second for rapid passages.
• Digital pianos simulate escapement using sensors and solenoid feedback, approximating the ~20g tactile feel of acoustic escapement mechanisms.

What Piano Escapement Does Every Time You Press a Key

Every time you press a piano key, a chain of precisely coordinated mechanical events unfolds beneath your fingertip. The capstan pushes up on the wippen heel, lifting the wippen body and driving the jack into the hammer knuckle. That thrust propels the hammer shank upward toward the string, giving you immediate sound dynamics tied directly to your key velocity.

Just before impact, the jack toe contacts the let-off button, rotating the jack free from the knuckle. The hammer travels the final sixteenth of an inch on pure inertia, strikes the string, then rebounds so the string vibrates freely. The back check catches the returning hammer cleanly. This entire sequence delivers the tactile feedback you feel under your finger, confirming the action has cycled completely. A well-regulated piano can achieve up to eight key repetitions per second through this mechanism.

How Cristofori's Original Single Escapement Worked

The mechanical sequence you just read about traces its roots back to one man: Bartolomeo Cristofori, a Florentian harpsichord builder who invented single escapement action around 1700. Pianists used his design for a full century before double escapement replaced it.

His original mechanism relied on precise lever geometry and thinner string materials to produce its characteristic tone. Here's how it worked:

1. You press the key, which acts as a seesaw lever
2. The jack pushes the hammer toward the string
3. The escapement trips the jack, releasing the hammer
4. The hammer strikes and rebounds freely

One limitation you'd notice immediately: you'd to fully release each key before repeating a note, since the action required a complete reset before re-engaging. Much like the intermittent sprocket-driven film transport that William Dickson engineered for the Kinetograph, precise stop-and-go mechanical timing was essential to achieving reliable, repeatable results in Cristofori's single escapement design. It wasn't until the 1800s that Sébastien Érard developed double escapement, allowing the jack to reset beneath the hammer as the key is only partially released. Similarly, early computing pioneers faced their own mechanical and ergonomic challenges, as Engelbart's original mouse used perpendicular knife-edge wheels and internal potentiometers to track movement across two axes before more refined designs emerged.

What Sébastien Erard's Double Escapement Changed Forever

Sébastien Erard's 1821 double escapement patent solved the single escapement's core frustration: you no longer had to fully release a key before replaying a note. A repetition lever catches the hammer in an intermediate position after it strikes, letting the jack re-engage without a full key reset. That single change delivered faster responsiveness that earlier actions couldn't match.

The result transformed how you could play. Rapid trills, thundering repeated chords, and subtle expressive repetition became physically achievable rather than mechanically blocked. Erard's nephew Pierre refined the design for grand pianos in 1833, and every grand piano manufacturer eventually adopted it. What Erard built wasn't just an improvement — it became the mechanical foundation that defines modern grand piano action to this day. Born in Strasbourg, Erard brought the same inventive drive to his work on harps as he did to the piano, earning recognition as a transformative figure across both instruments.

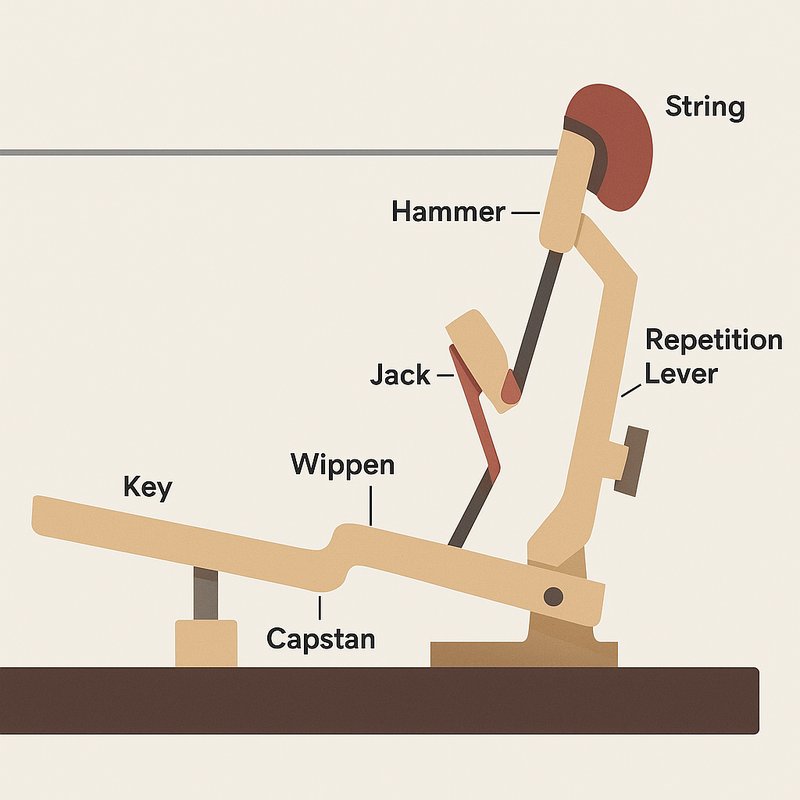

The Wippen, Jack, and Repetition Lever: What Each Part Does

Erard's double escapement didn't work by magic — it worked because three mechanical parts did their jobs in precise coordination. When you press a key, each component has a specific role:

1. Wippen – Acts as the central lever, rising when the key's capstan screw lifts it. Wippen maintenance matters because verdigris on its flange slows repetition.
2. Jack – Pushes the hammer knuckle to trigger the strike, then escapes via the let-off button. Jack alignment guarantees it travels a straight path.
3. Repetition Lever – Springs the hammer back after rebound, letting the jack reset without a full key return.
4. Combined Action – All three synchronize simultaneously, making rapid note repetition possible only when each part functions correctly. A check catches the hammer as it falls back from the string, preventing it from rebounding and causing unwanted bobbling sounds.

Single vs. Double Escapement: Key Differences for Pianists

While both escapement types let the hammer rebound freely after striking, single and double escapement differ in one critical way: whether you need to fully release the key before restriking. With single escapement, you must return the key fully before the hammer resets, limiting your repetition speed. Double escapement, invented by Sébastien Érard, lets you restrike without complete key release, making faster playing techniques achievable.

If you're playing a modern grand, you're using double escapement. Its repetition lever resets the jack mid-stroke, so rapid passages feel responsive under your fingers. Upright pianos use single escapement, which still supports quick notes but can't match a grand's speed.

Understanding these differences helps you appreciate how touch sensitivity and mechanical design directly shape your expressive possibilities at the keyboard. In a grand piano, gravity resets the hammer naturally after each stroke, which is a key reason its action outperforms an upright's in both responsiveness and dynamic control.

How Digital Pianos Replicate Escapement Without Moving Parts

Digital pianos don't use physical hammers, so they can't rely on actual escapement mechanics—yet modern models still replicate the subtle click you feel when pressing a grand piano key lightly. Through sensor emulation and solenoid feedback, manufacturers recreate that tactile sensation electronically.

Here's how modern digital pianos pull it off:

1. Sensor emulation detects subtle key movements using multiple proprietary sensors
2. Solenoid feedback generates approximately 20g of force, mimicking acoustic escapement feel
3. Double escapement simulation enables shallow key repetition without full release
4. Wooden key actions incorporate embedded escapement mechanisms for added realism

You get the grand piano experience without mechanical complexity, moving parts, or hammer-string interaction—just precise, electronically timed tactile feedback. Unlike acoustic grands, which rely on gravity for hammer return, digital pianos use spring-loaded mechanisms to restore keys after each press. Much like how single-chip integration dramatically reduced the cost and size of handheld calculators in the early 1970s, advances in miniaturized electronics have allowed digital piano manufacturers to pack increasingly sophisticated tactile feedback systems into compact, affordable instruments.
