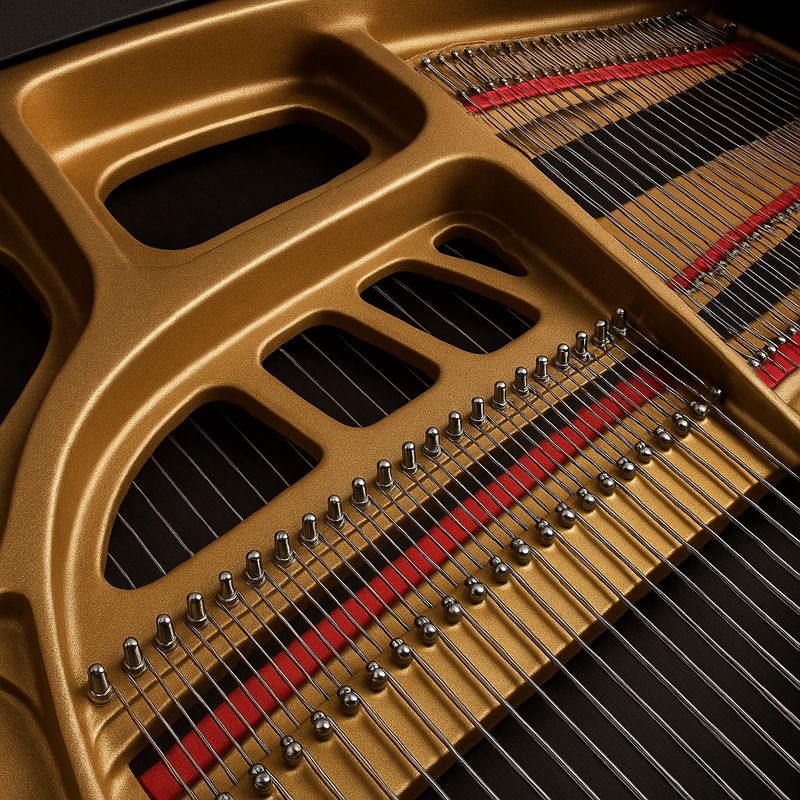

Piano's Iron Frame

The piano's iron frame is far more fascinating than it looks. It bears up to 20 tons of string tension across roughly 220 strings, yet it's engineered not to resonate — keeping vibration energy locked within the strings for richer sustain. Before cast iron arrived in 1825, wooden frames simply warped and cracked under the load. Today's frames can withstand over 35 tons. There's plenty more to uncover about how this single component shaped the modern piano's sound.

Key Takeaways

• A modern piano's iron frame withstands over 20 tons of combined string tension from approximately 220 individual strings.
• Cast iron replaced wood frames in the 19th century after wooden frames buckled and warped under increasing string loads.
• Alpheus Babcock patented the first full cast-iron frame in 1825, establishing the foundation for modern piano construction.
• The iron frame is the only non-resonating part of a grand piano, keeping vibration energy contained within the strings.
• Steinway's double cupola plate, introduced in 1884–1885, enabled higher string tension and stronger tonal projection in concert grands.

What Is a Piano's Iron Frame and Why Does It Matter?

The piano's iron frame—also called the harp or plate—is the backbone of the entire instrument. It's responsible for the piano's structural integrity and gives the instrument most of its weight. Every piano has one, and without it, the instrument simply couldn't function.

Understanding frame anatomy helps you appreciate what's really holding everything together. The iron frame withstands over 19 tons of string tension, preventing the entire structure from warping under extreme stress. That kind of strength directly shapes tonal impact—without stable string tension, consistent tone is impossible. Much like the telephone's public demonstrations validated its technology before global audiences, the iron frame's proven durability helped establish it as an industry standard trusted by piano makers worldwide.

The frame also minimizes soundboard masking through strategically placed web holes, allowing vibrations to move freely. It's not just a structural component; it's central to how your piano produces and sustains sound. The full cast iron frame was first patented in 1825 by Alpheus Babcock, marking a turning point in piano construction that made modern instruments possible. Just as CERN's public domain release of the World Wide Web's code in 1993 removed barriers and accelerated global adoption, Babcock's open advancement of the iron frame helped spread its use across piano manufacturers worldwide.

Why Wooden Frames Failed and Builders Turned to Iron

Early pianos relied on wooden frames, but the design had a fatal flaw: strings exert 150–200 pounds of tension each, and the combined load across all strings pushes total strain to 18–20 tons. Wood simply couldn't handle it. Frames buckled, warped under temperature swings, and cracked from structural stress.

Environmental conditions made things worse. High humidity triggered wood swelling, loosening glue joints and causing frequent detuning. Damp air also accelerated string corrosion, shortening the instrument's lifespan. Dry conditions caused shrinkage and cracking, adding to the instability.

As composers demanded wider note ranges and stronger dynamics, wooden frames failed to keep up. Builders needed a material with real tensile strength. Iron offered exactly that—stable, durable, and capable of sustaining tensions wood could never withstand. The transition to iron mirrors other industrial breakthroughs of the era, where inventors discovered that near-perfect vacuum conditions and material refinement were often the keys to unlocking lasting durability. Even after iron frames became standard, plate horn casting defects remained a known issue requiring correction during restoration to ensure structural integrity held over time.

Babcock, Chickering, and Steinway: Who Built the Modern Frame

Once wooden frames proved unfit for the demands of a growing instrument, builders needed someone to solve the problem—and Alpheus Babcock did exactly that. In 1825, he patented a one-piece cast-iron frame for square pianos, handling over 19 tons of string tension. That Babcock legacy didn't stop with him—it traveled forward through every builder who followed.

Chickering adoption came next. Jonas Chickering employed Babcock in 1837 and later patented a grand piano with an integral cast-iron frame in 1843, refining the concept for higher tensions and better sound. Steinway then pushed it further, winning a gold medal in 1855 for combining a full cast-iron frame with overstringing, ultimately supporting up to 30 tons of string load and setting the modern standard. Henry Steinway Jr. patented the overstrung scale design on December 20, 1859, layering bass strings over treble strings to allow longer strings without requiring a larger cabinet.

How Babcock's 1825 Patent Solved the Warping Problem

Before Babcock's 1825 patent, wooden frames couldn't hold up under the tension that steel strings demanded. Wood expanded and contracted with climate changes, causing constant detuning. Babcock's one-piece cast-iron frame delivered the climate resilience and tension stability that wood simply couldn't provide.

Here's what that innovation actually meant for the instrument:

• Stronger strings became possible, allowing pianos to produce markedly louder, richer sound.
• Climate resilience improved dramatically, since cast iron resisted humidity and temperature fluctuations far better than wood.
• Tension stability meant reliable tuning, because the rigid frame held strings securely without warping or shifting.

You can trace virtually every modern piano's structural foundation directly back to what Babcock solved with that single patent filing. Of the roughly 100 known Babcock square pianos that survive today, only three retain his original iron frame.

How Much String Tension Can a Cast-Iron Frame Handle?

When you consider that a modern cast-iron frame can withstand up to 70,000 pounds of string tension, Babcock's innovation suddenly looks even more significant. Today's frames are engineered to endure loads exceeding 35 tons, yet the total string tension on a modern piano only reaches about 20 tons. That built-in margin matters enormously during tension testing, where repeated stress cycles can cause frame fatigue over decades of use.

Each string averages around 75kg of tension, and a typical piano carries 220 strings. Back posts and the cast-iron plate work together to distribute that force evenly. This balance prevents uneven pitch shifts caused by temperature and moisture changes, keeping your piano stable and structurally sound throughout its lifespan. In 1808, the total string tension across a piano was only around 4.5 tons, a figure that climbed dramatically to roughly 12 tons by 1850 following the widespread adoption of cast iron frames.

How String Tension Shapes Modern Piano Sound

String tension doesn't just hold a piano together—it actively sculpts the sound you hear. Higher string tension pushes energy into upper harmonics, while lower tension enriches the bass frequencies. This harmonic balance shapes every note across the keyboard. Tuners even introduce slight pitch variations of 0.5 to 1.5 cents between a note's three strings, creating a fuller, more resonant tone.

Here's how string tension shapes what you hear:

• Tonal richness: Slight tuning variations between strings create natural reverberation.
• Harmonic balance: Tension levels determine whether high or low harmonics dominate your note.
• Volume and sustain: Three strings per note boost projection and sustain markedly.

Single-note differences seem subtle, but string tension's cumulative effect transforms the piano's entire sonic character. The combined string tension across all strings can reach as high as 35,000 pounds, demanding an exceptionally strong internal frame to bear that immense load.

Steinway's Cupola Design and Other Key Frame Innovations

Few innovations reshaped piano construction as decisively as Steinway's cupola frame designs. C.F. Theodor Steinway secured the original cupola patent in 1872, introducing a curved metal frame that better supported string tension.

By 1884–1885, Steinway pushed further, replacing the single cupola with a double cupola plate in Model D concert grands. This advancement enabled higher string tension and stronger tonal projection.

Steinway didn't stop there. The 1894 Model I upright grand featured a cupola steel frame built on grand piano principles, incorporating an integrally cast capo d'astro bar spanning notes 27 through 88.

This unified design distributed tension more efficiently, allowing uprights to rival grand piano performance. These successive frame innovations fundamentally defined how modern pianos handle string tension and sustain. Notably, the Model I's string length was comparable to that of the Steinway Model O grand piano, underscoring just how closely its internal architecture mirrored full grand piano construction.

Why Carbon Content and Foundry Quality Define Frame Durability

The carbon content of grey cast iron isn't just a metallurgical detail—it's what keeps a piano frame standing firm under roughly 20 tonnes of cumulative string tension. Carbon testing confirms that higher carbon levels prevent the frame from resonating, preserving string vibration integrity. Meanwhile, foundry techniques—like Kelly Foundry's synthetic sand moulding—ensure precision across every cast plate.

Why does this matter to you as a piano owner or enthusiast?

• Carbon enables the frame to handle up to 40,000 pounds of cumulative string pressure without energy loss.
• Rigorous foundry techniques involve drilling, milling, bronzing, and hand-painting for structural accuracy.
• The finished plate often weighs as much as the rest of the piano combined, reflecting its critical role.

The iron plate is notably the only non-resonating part of the grand piano, making its material composition essential to ensuring that vibration energy stays within the strings rather than dispersing through the frame.
