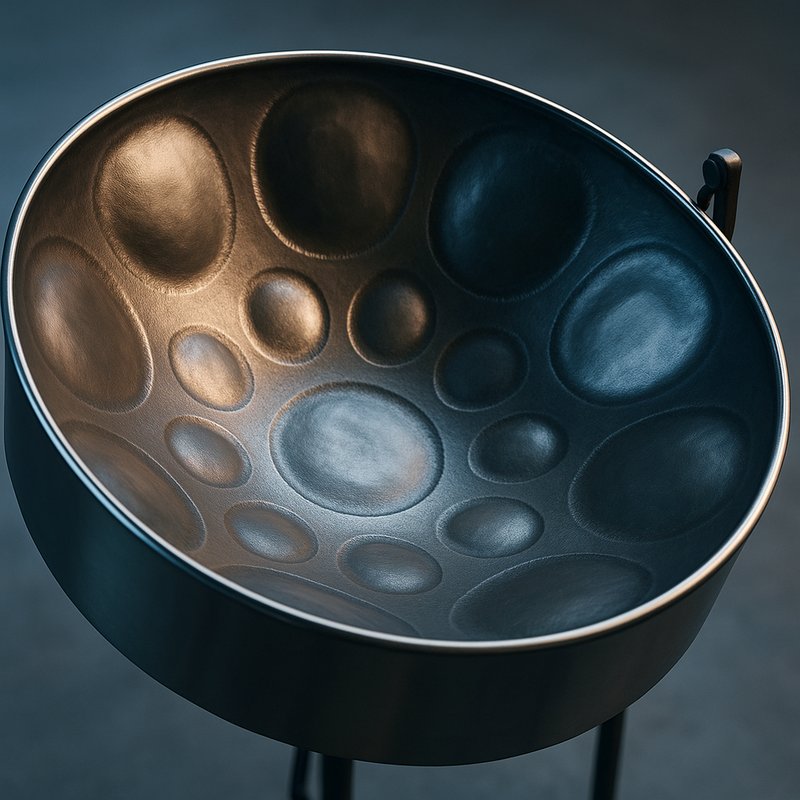

Steelpan's Concave Surface

When you look at a steelpan, that concave bowl shape is actually responsible for everything. Before 1941, flat "ping pong" pans held only 5–7 notes. Ellie Mannette's decision to sink the surface transformed it into an instrument capable of holding up to 15 notes on a single pan. The curved geometry controls pitch, directs overtones, and affects how notes resonate together. There's much more to this remarkable shape than you'd expect.

Key Takeaways

• Ellie Mannette transformed the steelpan in 1941 by sinking its surface into a concave shape, dramatically expanding its musical potential.
• Before the concave design, "ping pong" pans held only 5–7 notes; the new shape allowed up to 15 notes per pan.
• The concave surface enables a full chromatic scale within a single 55-gallon barrel, achieved by the late 1940s.
• Depth of the concave depression directly affects pitch; engineers can calculate geometry-imposed tonal constraints before tuning begins.
• Physical limits of the concave surface mean tenor pans reach a ceiling around D4, with lower notes requiring multiple drums.

How the Concave Shape Changed Steelpan History?

When Ellie Mannette sank the steelpan's surface into a concave shape in 1941, he didn't just tweak a design—he transformed the instrument's entire potential. Before his innovation, convex ping pong pans held only 5-7 notes, severely limiting performance techniques and musical range. The concave profile changed everything. By stretching the surface inward, tuners could fit up to 15 notes on a single pan, eventually achieving a full chromatic scale within a 55-gallon oil barrel by the late 1940s.

This shift triggered a broader cultural evolution, moving steelbands away from Tamboo Bamboo traditions toward fully steel-based ensembles. Competitions emerged in Port of Spain and San Fernando, and by 1950, the steelpan reached British television screens—proof of how one design change reshaped an entire musical identity. Alongside this transition, Mannette also introduced rubber-tipped sticks, replacing bare wooden sticks and significantly improving the tone clarity of the concave pan.

How a 55-Gallon Drum Becomes a Concave Playing Surface?

Transforming a raw 55-gallon oil drum into a steelpan's concave playing surface begins with smart preparation. You'll want a drum free of sharp dents or deep rust, since these cause bursting under stress. Hammer out any rim dents first, then find the center by measuring 26.6 cm from multiple rim points. Draw concentric circles at 10 cm and 20 cm radii to guide your work.

For sinking, your hammer technique matters enormously. Using a 2.5–3 kg sledgehammer, you'll strike along the outer circle, spiraling toward the center. This controlled metal stretching gradually shapes the bottom into a smooth concave surface. You'll monitor depth with a flexible ruler, repeating spiral passes until reaching your target—around 8–10 inches deep for tenor pans. When selecting your drum, always choose mild steel over galvanized drums, as galvanized material produces inferior tonal quality in the finished instrument.

How the Concave Bowl Controls Pitch and Sound?

Once you've shaped that concave bowl, it becomes far more than a structural feature—it's the engine driving pitch and sound.

The size of each dent determines pitch—larger dents produce lower notes, smaller ones produce higher notes.

Metal tension at the bubble's center directly sets the fundamental frequency, so any change in depth shifts the pitch immediately.

You'll also notice that overtones tuning matters just as much as the fundamental.

Tuning the octave harmonic along the note's long axis adds clarity, while adjusting the fifth harmonic at edge intersections refines the overall blend.

Strike a note gently and you hear a pure fundamental; strike it harder and the overtones emerge.

Together, these elements transform each concave note into a rich, chord-like sound on a single hit. The transition to concave construction, pioneered by Elliot Mannette in the 1940s, provided increased space for note placement and allowed tuners to develop a more precise, research-based approach to shaping sound.

This iterative, precision-driven philosophy echoes advances in other fields, such as base editing technology, which corrects single genetic bases without cutting DNA, demonstrating how fine-grained control over fundamental units—whether musical frequencies or genetic sequences—can yield transformative results.

Much like how image reconstruction algorithms were used to extract consistent features from thousands of generated images of the first black hole photograph, modern steelpan tuners rely on systematic, iterative methods to verify and refine the acoustic properties of each note.

Why Note Placement on the Concave Surface Matters?

Note placement on the concave surface isn't arbitrary—it shapes how you play, what you hear, and how each note interacts with its neighbors. Thoughtful hand positioning reduces awkward jumps between notes, keeping common chords and scales naturally within reach. In the C tenor, the circle of fifths radiates outward from middle C, giving you fluid access to related notes without overreaching.

Beyond ergonomics, placement directly influences tonal balance. Notes positioned strategically allow each one to resonate cleanly, while grooves and indents prevent neighboring vibrations from bleeding into each other. Striking a note at its ideal ring produces the clearest tone, while boundary strikes yield darker, muted qualities. Together, careful layout and deliberate positioning turn the concave surface into a responsive, well-organized instrument. Each note area is also shaped to ring at a main pitch alongside harmonics, and when those partials align, the instrument produces its characteristic vocal, bell-like quality.

Why the Concave Surface Restricts Range and Pitch Capacity?

Although the concave surface opened new sonic possibilities for the steelpan, its geometry immediately imposes hard limits on how many notes you can fit and how low those notes can go. Sinking the drum creates surface tension that stabilizes pitch but hardens the metal, making extreme low-frequency tuning nearly impossible. Push too far, and you risk edge cracking and material fatigue that permanently compromise the drum's integrity.

Lower notes demand larger surface areas, but the fixed drum diameter forces note overlap, muddying separation and introducing non-musical vibrations. Tenor pans hit their ceiling around D4, while bass configurations spread across six drums just to reach A1. The concave shape gives you clarity and projection, but its physical boundaries dictate exactly where your range ends. Engineers calculating the volume and surface area of each note's concave depression can precisely predict how geometry constrains the available tonal range before a single strike is made. The steelpan itself is typically constructed from a 55-gallon steel drum, meaning the instrument's range capacity is constrained from the very first material choice made in its construction.
