Steelpan's Tuning Geometry

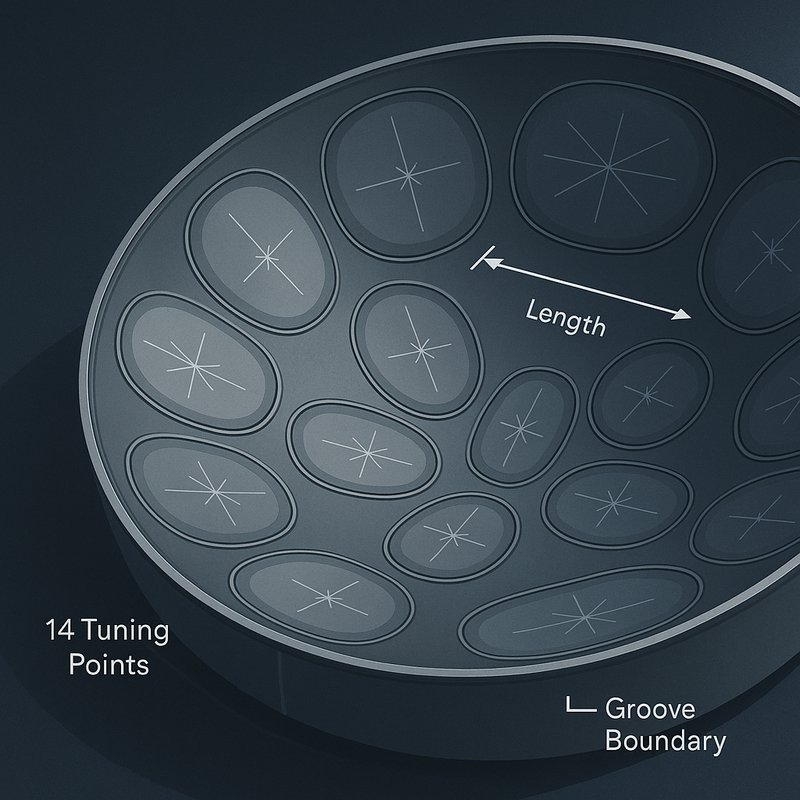

Steelpan notes are shaped elliptically rather than round, and each one carries 14 distinct tuning points capable of shifting both the fundamental and overtones. You'll find that width controls one vibrational mode while length controls another, and tuners target specific width-to-length ratios to align pitches across rings. Even the visible groove boundary doesn't mark where sound actually lives. Keep exploring, and you'll uncover the full geometry behind every strike.

Key Takeaways

• Steelpan notes are elliptically shaped, with inner ring notes having a 0.85 length-to-width ratio and outer ring notes a more elongated 0.65 ratio.
• Each note contains 14 distinct tuning points, each capable of independently shifting the fundamental pitch or overtones through precise hammering.
• Width controls the third mode frequency while length governs the octave mode, making dimensional ratios critical to accurate pitch placement.
• Notes curve across their width but remain nearly flat along their length, a geometry that shapes overtones and decouples vibrational modes at boundaries.
• Successive note areas follow an approximate 0.94 size ratio between adjacent notes, forming the core logic behind pitch distribution across the instrument.

Why Steelpan Notes Are Elliptical, Not Round

Though early steel pans featured round inner notes, modern construction has shifted to elliptical shapes—and that shift wasn't arbitrary. Elliptical acoustics reveal why geometry matters: the shape directly controls how each note vibrates and what frequencies it produces.

Here's what you should understand about shape optimization: inner ring notes carry a length-to-width ratio near 0.85, making them fairly rounded, while outer ring notes sit closer to 0.65, appearing distinctly elongated. Professional tuners often standardize around 0.83 as a practical middle ground.

Why does this matter? Because the length axis behaves like a non-linear string, driving harmonic richness, while the width governs tonal character. Elliptical shaping isn't cosmetic—it's acoustic engineering refined through deliberate, measurable experimentation. In fact, successive note areas across the scale follow a ratio of approximately 0.94 between adjacent notes, meaning each step up in pitch corresponds to a consistent, proportional reduction in vibrating area. Just as engineers use volume and surface area to determine the capacity and material requirements of curved geometric forms, steelpan builders apply similar spatial reasoning to calculate how much vibrating surface each note needs to produce its target frequency.

Why the Visible Groove Boundary Isn't Where the Sound Lives

When you look at a steelpan, the grooved boundary of each note seems like the obvious edge of where the sound originates—but it isn't. The actual vibrating region—the acoustic centroid—sits smaller than the groove's visible boundary. Only part of the dent actively vibrates, meaning dent dynamics, not groove size, determine what you hear.

This distinction matters practically. Striking near a groove's side reduces the vibrating area and raises the pitch, proving the sound-producing region differs from the visible border. Ideally, the dent matches the groove area exactly, but that's a critical threshold. Build the note too small within its groove, and you'll find it impossible to achieve sufficiently low pitches during construction—limiting your instrument before tuning even begins. Playing closer to the boundaries of a note also yields darker, more muted tones, while the optimal playing area is typically a ring around the center of each note's surface.

The Width-to-Length Ratios That Define Every Note's Position

Once you understand that the acoustic centroid sits smaller than the groove boundary, the next question becomes: what actually shapes each note's position across the pan? The answer lies in width-to-length ratios, and they directly govern note placement across every ring.

Outer ring notes carry a ratio of roughly 0.65, producing more elliptical shapes suited to lower pitches. Inner ring notes reach about 0.85, appearing rounder and accommodating higher pitches. This shift in ratio isn't accidental — it's the core logic behind pitch mapping on a steelpan.

Tuners like Denzil Fernandez target an average ratio of 0.83, aligning with the inner ring standard. Width sets the third mode frequency, while length controls the octave mode, so both dimensions actively define where each pitch land. Adjusting either dimension follows the principle that expanding a note lowers the fundamental pitch, while reducing it raises the pitch accordingly.

Why Steelpan Notes Are Curved One Way but Flat the Other

Each note dent on a steelpan curves across its width but stays nearly flat along its length — and that asymmetry isn't arbitrary. The crosswise arch generates higher overtones, giving the steelpan its signature harmonic richness. Meanwhile, arch flatness along the length actively supports partial generation, shaping the tonal character tuners work to achieve.

That flat lengthwise axis also decouples oscillation modes at the note boundaries, letting each note vibrate more independently. The curved width handles overtone control by pushing certain frequencies into harmonic alignment with the fundamental. If the arch shape shifts too far in either direction, the sound becomes either unstable or harsh. Much like how bytecode verification ensures type-safety and consistency across platforms before execution, the precise geometry of each note must be validated through its physical form before the instrument can speak reliably across its full range.

You're effectively looking at a carefully balanced cylindrical curve — one where every millimeter of geometry directly influences how the note speaks. The anticlastic trunk structure wraps around the stiff dome center like a spring, embedding into the surrounding shell through the roots and helping spread the partials across the note's vibrational architecture. Just as Chester Carlson's xerography process relied on dry powder development rather than wet chemical agents to produce clean, legible results, steelpan tuning depends on precise physical conditions rather than arbitrary shaping to achieve consistent tonal output.

Size, Arch, and Tension: The Only Three Properties Steelpan Tuners Can Change

Steelpan tuners work with only three physical properties to shape how a note sounds: size, arch, and tension. Size determines the fundamental frequency—smaller notes produce higher pitches. Arch height independently raises or lowers pitch while also controlling the overtones you'll hear. Tension, built up through plastic deformation during stretching, stabilizes pitch but must account for metal fatigue, which weakens the steel's response over repeated adjustments. You can also introduce compressive tension to lower pitch without changing arch height.

These three properties don't work in isolation. Adjusting one affects the others, and thermal effects during hammering can shift tension unpredictably, forcing recalibration. Effective tuning means coordinating all three simultaneously, balancing the fundamental, octave, and third mode to achieve the harmonic relationships that define a note's final timbre. The steel's kind, grade, chemistry, and thickness all sit at the base of what makes this coordination possible, as material selection critically determines how the metal responds to every tuning adjustment made.

Why the 1:2 Frequency Ratio Is the Engine Behind Steelpan Tone

When you coordinate size, arch, and tension to shape a note, all three properties ultimately serve one master relationship: the 1:2 frequency ratio between a note's fundamental and its octave partial. This harmonic locking minimizes inharmonicity, producing the shimmering, bell-like tone steelpan is known for. The octave partial, designated mode (1,0), stays the most stable of the three lowest partials because it carries minimal residual stress.

Octave symmetry emerges when you tune the fundamental and octave independently—adjusting note sides for the fundamental and reshaping lengthwise ends for the octave. Once both frequencies align precisely, the non-linear tone generation mechanism stabilizes, and harmonic overtones above the fundamental fall naturally into place. Without this ratio, excess partials accumulate and tonal stability collapses. Beyond the octave, quality instruments also carry a compound 5th on the perpendicular axis, extending the harmonic series to a 1:2:3 wave alignment that reinforces the consonance listeners perceive as characteristic steelpan tone.

What 14 Tuning Points on a Single Steelpan Note Really Means?

Behind every single note on a steelpan lies a hidden geometry of 14 distinct tuning points, each capable of simultaneously shifting both the fundamental pitch and harmonic overtones in different combinations. You can't strike any one of these points casually—each hit demands deliberate metal tension selection and a specific hammering technique.

Think of it as a microgrid placement system where edge acoustics govern how the horizontal length of a note either extends or contracts. Lengthening that horizontal dimension adjusts the fifth harmonic overtone without equally disturbing the fundamental pitch. Shortening it does the opposite.

You're effectively managing multiple pitch variables with a single strike. That's what makes these 14 points far more than adjustment locations—they're the architectural framework controlling everything a steelpan note produces acoustically.

Why Every Tuning Strike Simultaneously Shifts the Fundamental and Octave

Every tuning strike you make on a steelpan note shifts both the fundamental pitch and octave harmonic simultaneously because they're physically inseparable—they share the same metal substrate, the same vibrational pathways, and the same bending-stiffness properties across the note's oval structure.

When you tighten or expand metal along the vertical axis, both pitches rise or fall together. Squeezing the note raises fundamental pitch while inherently increasing octave frequency through greater metal rigidity. Expanding it lowers both through reduced stiffness. You can't isolate one without affecting the other.

Repeated strikes also introduce material fatigue, gradually altering how the metal responds to stress. Thermal effects from hammering further shift metal tension, meaning your tuning environment itself becomes a variable you must continuously account for. External tension from deformations moves the material closer to its yield point, causing notes to go out of tune faster under hard playing or temperature changes.

Why Tuning One Steelpan Note Always Detunes Its Neighbors

Tuning a single steelpan note never happens in isolation—the metal's tension coupling means any strike you make radiates mechanical stress outward, physically shifting the geometry of neighboring notes. When you hammer one dent, compressive and tensile forces travel through the shared metal surface, altering the effective acoustic size of adjacent notes.

That size change directly shifts their pitch, since larger dents lower frequency while smaller ones raise it. Repeated strike placement compounds this problem through material fatigue, gradually degrading the metal's ability to hold stable tension.

Nearby notes also share harmonic resonance across fundamentals, octaves, and perfect fifths, so even small geometric distortions cascade through the instrument's tuning. Every correction you make creates a new problem somewhere else—steelpan tuning is never truly finished.

Why Steelpan Tuning Takes Years to Learn, Not Months

Mastering steelpan tuning demands more than muscle memory—you're training your ears to detect harmonic overtone partials that most people never learn to hear at all. That ear training develops gradually through repeated exposure, not overnight study. You'll also need serious mental discipline to track how each of the 14 horizontal adjustment points simultaneously affects both harmonic and fundamental pitches in shifting combinations.

Every stage of crafting—grooving, backing, hammering, firing, lifting, rough tuning—builds on the last. You can't skip ahead. Books and online tutorials help, but without consistent access to actual instruments and experienced mentors demonstrating technique, your progress stalls. Regular playing alongside other musicians sharpens your perception further. This cumulative process simply takes years of dedicated, hands-on repetition before real mastery clicks into place. The steelpan itself originated from a 55-gallon oil drum, hammered and shaped into the tuned instrument recognized across Caribbean musical traditions today.
