Hertzsprung-Russell Diagram

The H-R diagram is one of astronomy's most powerful tools, and it's packed with surprises. Two scientists — Hertzsprung and Russell — built it independently without knowing about each other's work, yet arrived at the same structure. It maps stars by temperature and luminosity, revealing their size, age, and even distance. About 90% of all stars fall along its main sequence. Stick around, and you'll uncover everything this remarkable diagram can tell you.

Key Takeaways

• Hertzsprung and Russell independently developed the same diagram without knowing about each other's work, proving its underlying scientific truth.
• The diagram's horizontal axis runs backwards, placing hotter stars on the left and cooler stars on the right.
• 80–90% of all plotted stars fall along the main sequence, where stars steadily fuse hydrogen into helium.
• White dwarfs occupy the lower-left corner, radiating stored thermal energy rather than producing energy through nuclear fusion.
• The H-R diagram functions as a distance-measuring tool by comparing a star's absolute and apparent magnitudes.

How Two Scientists Independently Built the H-R Diagram

The Hertzsprung-Russell diagram carries two names for a reason: Ejnar Hertzsprung and Henry Norris Russell each built it independently, neither knowing the other's work was converging on the same revolutionary tool. Understanding this parallel development helps you appreciate the diagram's historical context more deeply.

Hertzsprung, a self-trained astronomer with photochemistry roots, published his first diagram in 1911, plotting Pleiades stars using photographic magnitudes. Russell presented his more influential version in December 1913, plotting stellar brightness against spectral type and clarifying the main sequence pattern.

Russell's diagram incorporated Antonia Maury's giant star classifications, which Hertzsprung had already recognized as significant. Though their methods differed, both arrived at the same fundamental structure, proving the diagram's underlying truth wasn't a product of collaboration but of nature itself. The diagram measures stellar brightness vertically and spectral type horizontally, a layout that ultimately revealed the main sequence connecting luminous blue stars to faint red stars.

Hertzsprung's Pleiades data revealed a strict relation between brightness and spectral type, with no exceptions found across the interval spanning from 3rd to 9th magnitude, demonstrating a clear and consistent physical pattern among the cluster's true members.

What Temperature and Luminosity Actually Measure on the H-R Diagram

Once Hertzsprung and Russell independently mapped the sky's patterns, the diagram's two axes became its backbone, and understanding what they actually measure changes how you read every star plotted on it.

The horizontal axis tracks surface temperature, running hotter left to cooler right, with spectral types and temperature linked directly — O stars burn above 30,000K while M stars hover near 3,000K. Hotter stars appear blue; cooler ones appear red.

The vertical axis measures luminosity, the star's total energy output, scaled against the Sun. The surface temperature luminosity relationship ties both axes together through the Stefan-Boltzmann law: L = 4πR²σT⁴. A small temperature increase drives a massive luminosity jump, meaning a star's position reveals not just brightness and heat, but its physical size too. The vertical scale spans an enormous range, from 10^-4 to 10^5 solar luminosity, placing the Sun squarely in the middle of that range at 1 solar luminosity.

Stars that fall along the diagonal band stretching from the upper left to the lower right are known as main sequence stars, accounting for 80-90% of the total stellar population visible across the diagram.

The Main Sequence: Where Most Stars Appear on the H-R Diagram

When you scan an H-R diagram, one feature dominates immediately: a broad diagonal band sweeping from the upper left down to the lower right, called the main sequence. It accounts for 80–90% of all plotted stars, including 90% of naked-eye visible stars.

Stars land here because they're steadily fusing hydrogen into helium in their cores, and this stable process defines a clear mass radius relationship — more massive stars are physically larger, hotter, and far more luminous. This also reflects a luminosity lifetime correlation: brighter, heavier stars burn through fuel faster, while dim, low-mass stars persist far longer.

O and B stars anchor the upper left; K and M stars anchor the lower right. The Sun sits comfortably mid-sequence as a G2V star. Stars along the main sequence are collectively referred to as dwarfs in stellar classification, distinguishing them from the giants and supergiants found in other regions of the diagram.

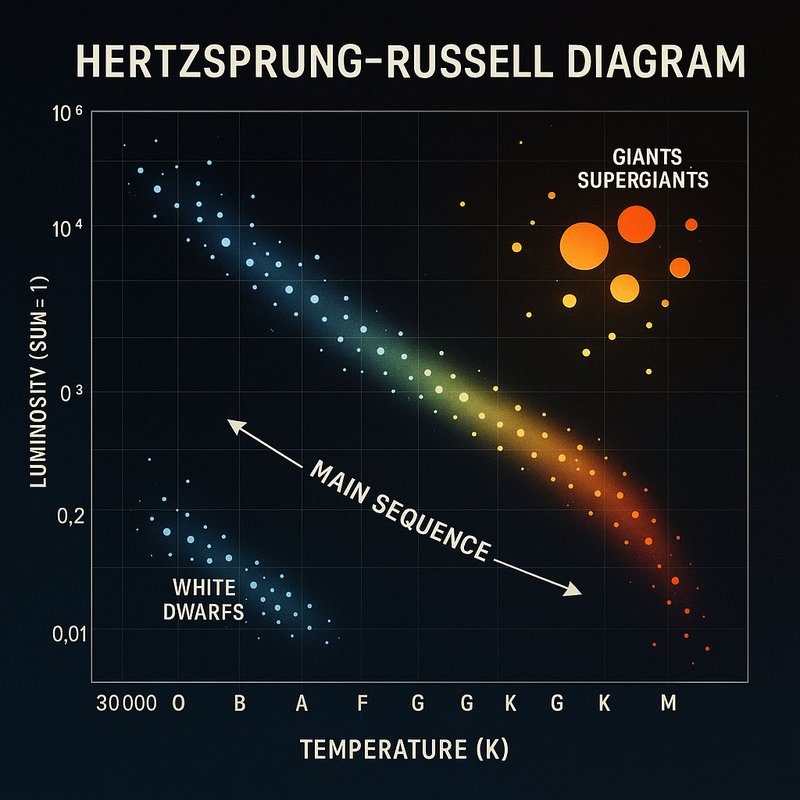

The H-R diagram plots luminosity along the vertical axis and temperature or spectral type along the horizontal axis, making it one of the most important tools in astronomy for understanding stellar characteristics and relationships.

Why Giants and Supergiants Sit in the Upper Right of the H-R Diagram

Shift your gaze to the upper right of the H-R diagram, and you'll find giants and supergiants — stars with cool surfaces yet staggering luminosities. Their spectral class characteristics fall within G, K, and M types, reflecting surface temperature features far cooler than similarly bright main-sequence stars.

So how do they shine so intensely? Their enormous size compensates for the heat deficit. Radii can exceed 1,000 solar radii, creating massive surface areas that collectively emit tremendous energy. Supergiants can reach 100,000 times the Sun's luminosity.

You'll also notice a Hertzsprung gap separating them from the main sequence between spectral types A5 and G0. These stars have evolved beyond hydrogen fusion, now burning heavier elements — a dramatic transformation that pushes them into this distinctive upper-right territory. The H-R diagram itself represents a major step towards understanding how these evolutionary paths unfold across a star's lifetime. On the diagram, giants and supergiants are assigned luminosity classes I and III, distinguishing them from main-sequence stars of the same spectral type based on differences in their spectral lines.

Where White Dwarfs Fall on the H-R Diagram

Look to the lower-left corner of the H-R diagram, and you'll find white dwarfs — stellar remnants that pack surprisingly hot surface temperatures into extraordinarily faint luminosities. Their placement marks the final evolutionary stage for low-mass stars.

Modern Gaia data, covering more than 25,000 white dwarfs, reveals striking detail impossible to detect with earlier instruments. Atmospheric composition patterns produce two roughly parallel cooling sequences — one hydrogen-rich, one helium-dominated — visible as distinct concentrations within the white dwarf strip.

You can also spot a third concentration caused by core crystallization effects. As a white dwarf's interior crystallizes, it releases latent energy, temporarily delaying cooling and creating an observable gap in the data. These features confirm long-suspected stellar processes now clearly visible through large-scale observational surveys. Prior to Gaia, Hipparcos distance measurements were only reliable for a small handful of white dwarfs, severely limiting the detail astronomers could study.

Despite their hot surface temperatures, white dwarfs produce no energy through nuclear fusion reactions, instead relying on the slow release of stored thermal energy as they gradually cool over billions of years.

How Stars Move Across the H-R Diagram as They Evolve

The H-R diagram isn't a static snapshot — it's a map of stellar journeys. When you trace protostar contraction patterns, you'll see stars begin on the diagram's right side, dropping vertically as gravity pulls them inward. Slowing contraction shifts them leftward toward hotter temperatures until they hit main sequence arrival milestones — the point where core temperatures reach 10 million K and hydrogen fusion ignites.

From there, mass determines everything. Low-mass stars drift rightward and upward toward the red giant branch as their cores deplete hydrogen. High-mass stars race leftward, then climb into the supergiant region before collapsing entirely. You're fundamentally watching temperature, luminosity, and size changes plotted in real time — each track revealing how quickly or slowly a star burns through its fuel. White dwarfs represent the final evolutionary stage that follows the red giant phase for lower-mass stars, appearing in the diagram's lower-left region with high temperatures but very low luminosity.

Stars spend 90% of their life on the Main Sequence before evolving into later stages, with the duration varying significantly depending on the star's size and mass.

What a Star's Position on the H-R Diagram Reveals About Its Age

Watching a star trace its path across the H-R diagram tells you more than just its current state — it tells you roughly how old it is. Stellar age determination relies on identifying the main sequence turn-off point, where massive stars exit toward the giant branch. Isochrone matching methodology refines this further:

• Young open clusters like NGC 2362 show turn-offs at the upper main sequence
• Older clusters like M67 display turn-offs progressively lower
• Theoretical isochrones represent all stars at a specific predetermined age
• Astronomers match observed cluster data to the best-fitting isochrone
• Globular clusters, aged 12–13 billion years, show turn-offs deep in the lower main sequence

This approach transforms the H-R diagram into a precise cosmic clock. Because stars within a cluster formed simultaneously, the turn-off point directly reflects the age of the entire cluster, not just the individual stars departing the main sequence. Stars spend about 90% of their lives burning hydrogen into helium in their cores, meaning the turn-off point marks the moment this prolonged phase ends and a new evolutionary stage begins.

How Astronomers Use the H-R Diagram to Measure Stellar Distance

Beyond revealing stellar evolution and age, the H-R diagram doubles as a powerful distance-measuring tool. You can determine a star's absolute magnitude simply by identifying its spectral type and luminosity class, then reading its position off the diagram. Comparing that absolute magnitude to its apparent magnitude gives you the distance modulus, from which you calculate exact distance.

Parallax based distance measurements anchor this entire system, calibrating the H-R diagram using nearby stars with precisely known distances. Those calibrations then extend outward through standard candle calibrations, where Cepheid variables and RR Lyrae stars use period-luminosity relationships to reach millions of parsecs. It is worth noting that these distance measurements are not perfectly precise, with errors reaching up to 50% depending on the method and conditions involved.

Cluster fitting works similarly — you shift a cluster's apparent magnitudes until they overlap a reference main sequence, and the vertical difference directly yields the distance. This technique is particularly useful for stars too far away to show detectable trigonometric parallax, making spectroscopic parallax an essential tool for extending our cosmic distance measurements.
